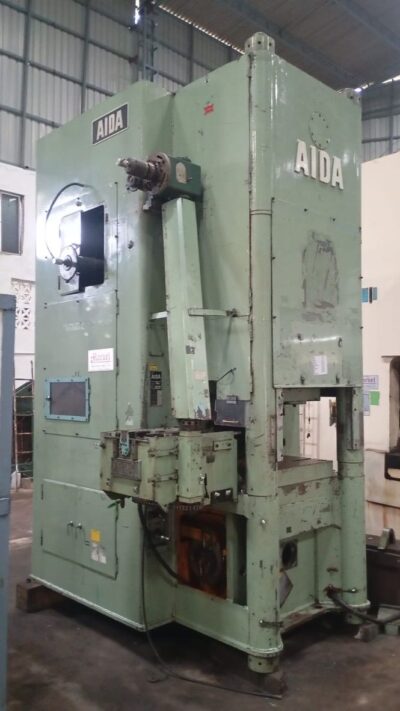

AIDA JAPAN MODEL : K-40B - Image 6
AIDA JAPAN MODEL : K-40B - Image 7
AIDA JAPAN MODEL : K-40B - Image 8
AIDA JAPAN MODEL : K-40B - Image 9
AIDA JAPAN MODEL : K-40B - Image 10
AIDA JAPAN MODEL : K-40B - Image 11
AIDA JAPAN MODEL : K-40B - Image 12
DONGSHIN KOREA MODEL : DSW-200
YOUJI TAIWAN MODEL : YV-1200ATC + C

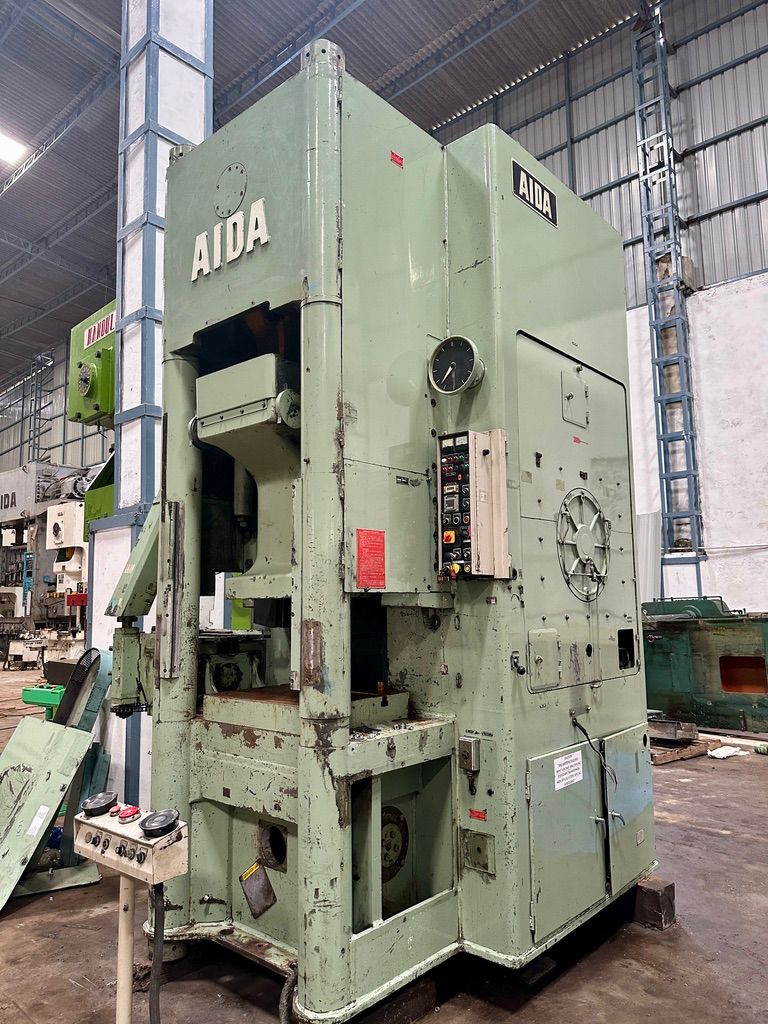

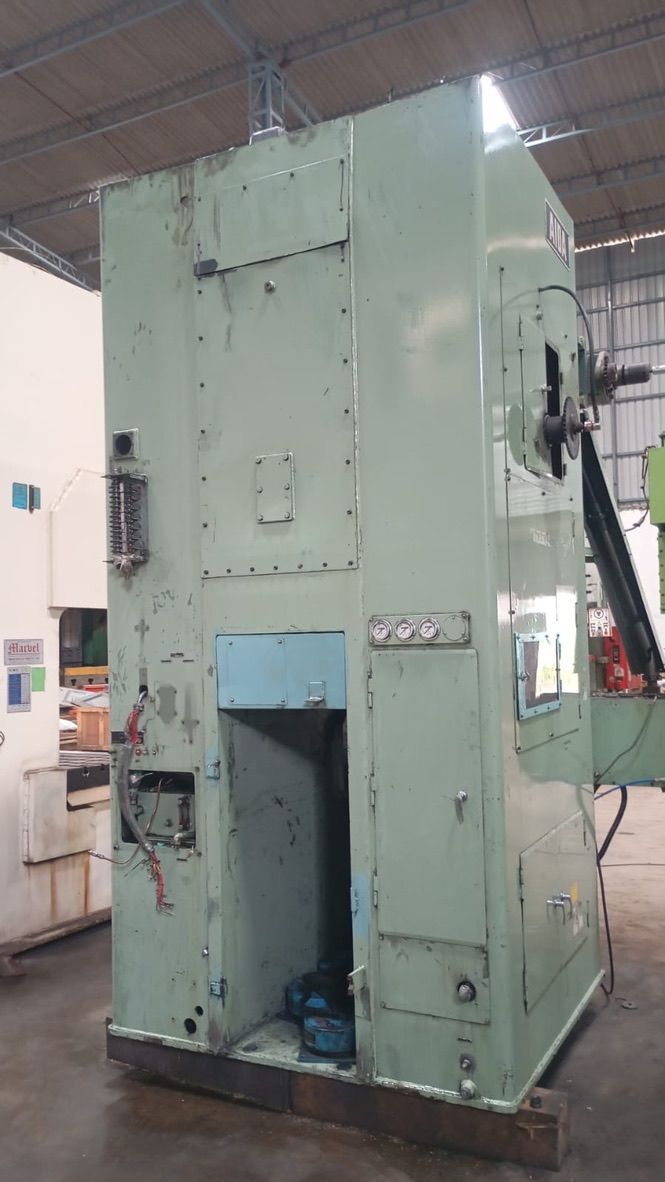

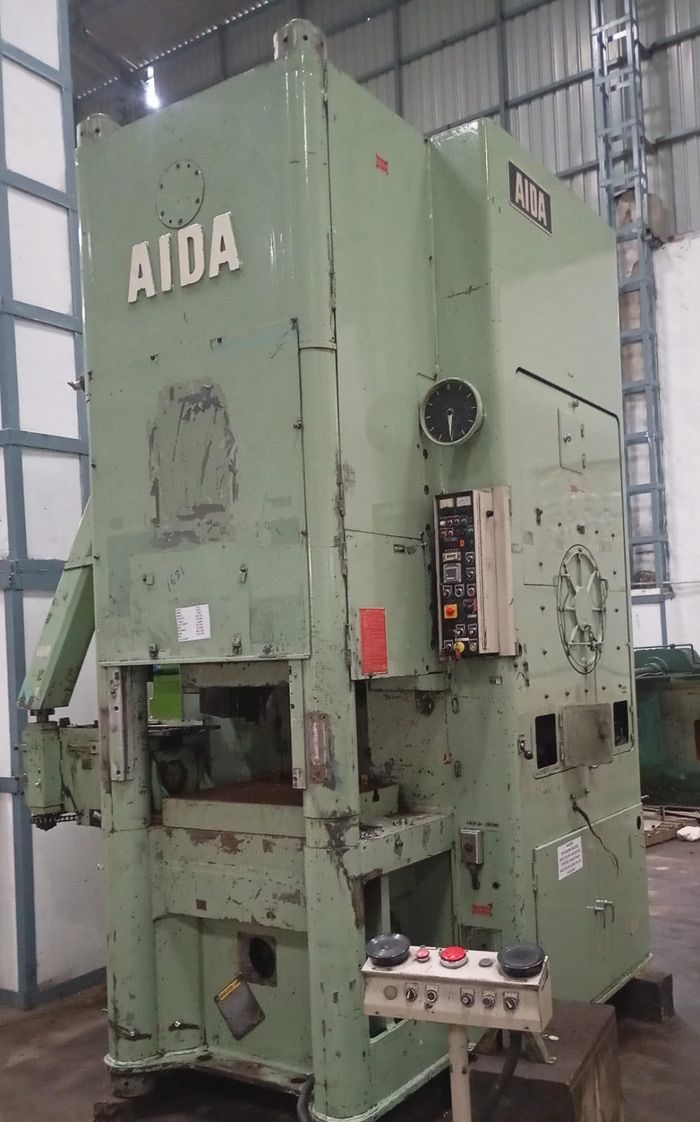

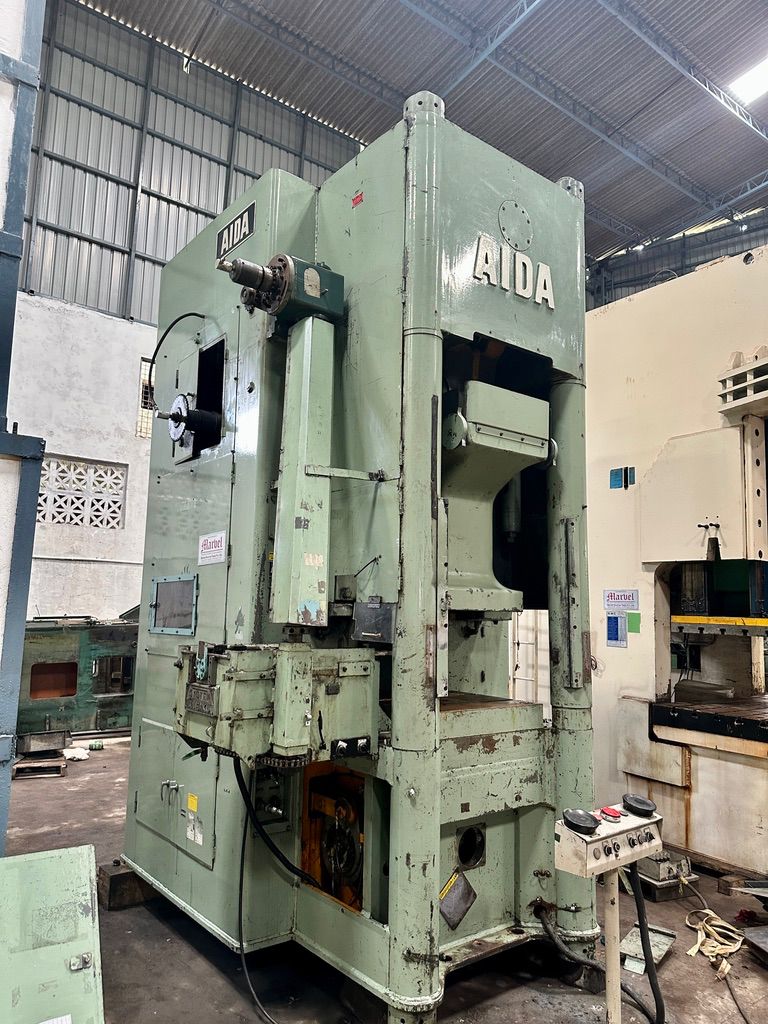

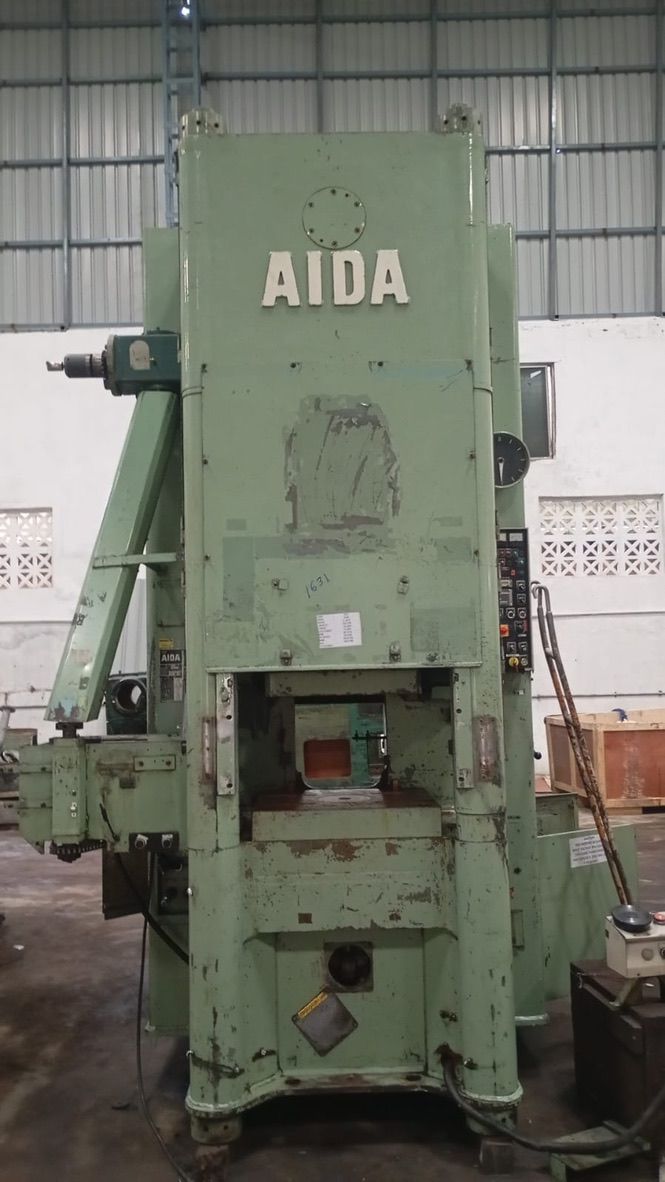

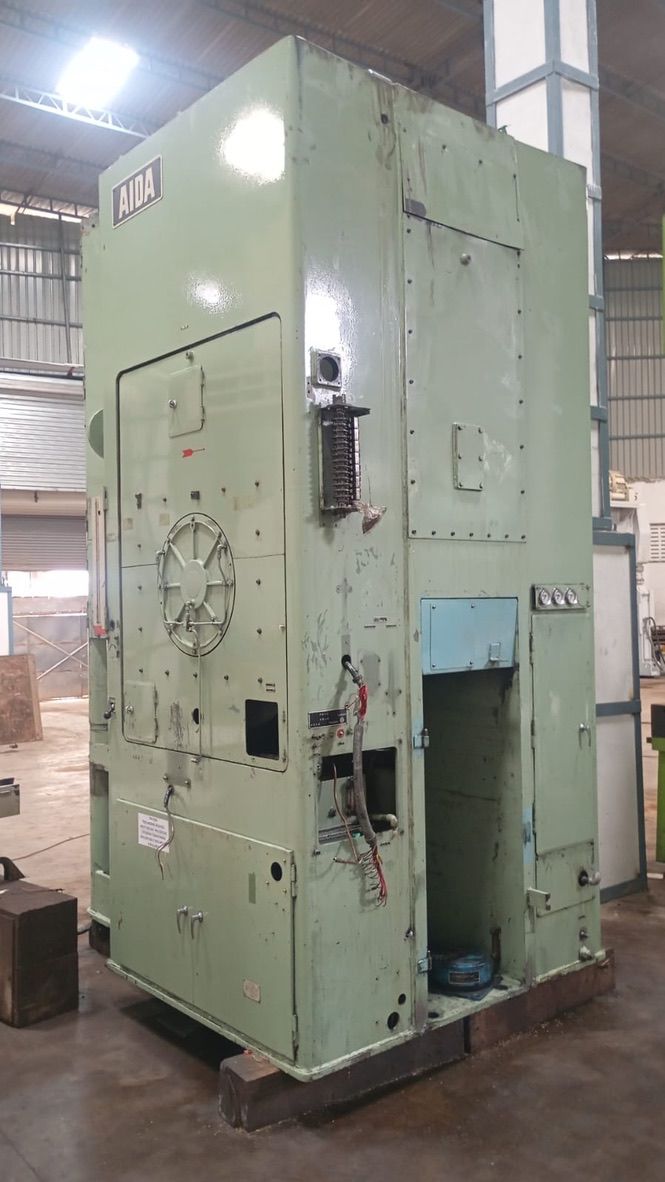

AIDA JAPAN MODEL : K-40B

COLD FORGING PRESS

AIDA JAPAN
MODEL : K-40B

SKU # 1631

Brief Specifications/ Details

  • Cap : 400Tons
  • Stroke : 160mm
  • Die Height : 420mm
  • Adjustment : 15mm
  • SPM : 30
  • Slide : 600 x 500mm

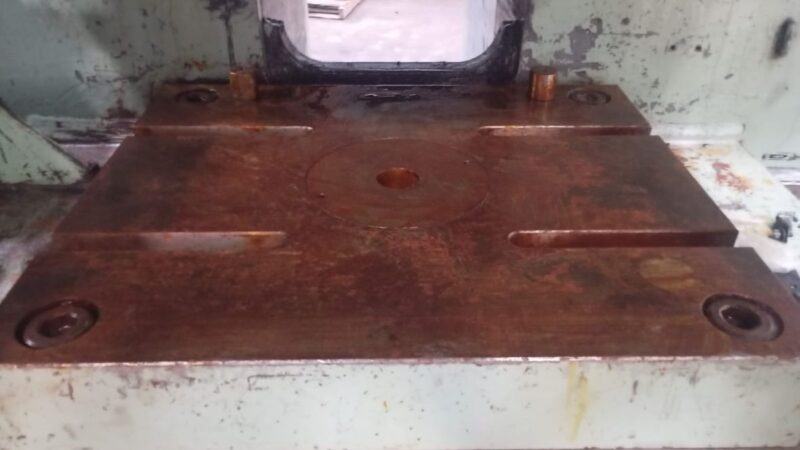

  • Bolster : 700 x 600mm

Accessories

With Transfer System & Knock Out

Click Here For Video 1

Click Here For Video 2

 Other Details (Approx)

  • Clutch : Wet
  • Main Motor : 19KW
  • Power Required : 220V/30KVA Phase : 3
  • Air Required : 5.5/sqcm
  • Machine Size : F-B: 8’-0”, L-R: 7’-0”, HT: 12’-5”
  • Machine Weight : 20Tons
SKU: SKU # 1631 Categories: , ,

Send Inquiry
