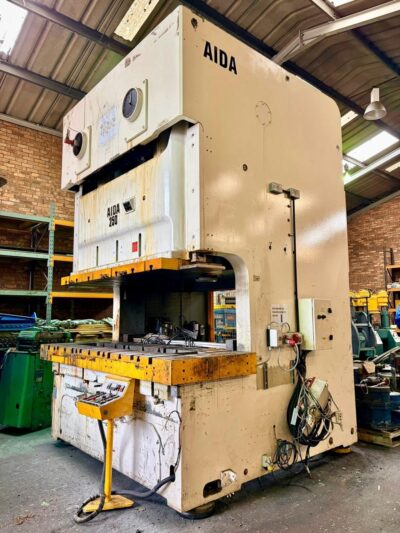

AIDA JAPAN MODEL : NC2-250(2)
C FRAME DOUBLE CRANK PRESS
AIDA JAPAN
MODEL : NC2-250(2)
SKU # 1896
Brief Specifications/ Details
- Cap : 250Tons
- Stroke : 280mm
- Die Height : 550mm
- Adjustment : 120
- SPM : 25~40
- Slide : 2110 x 700

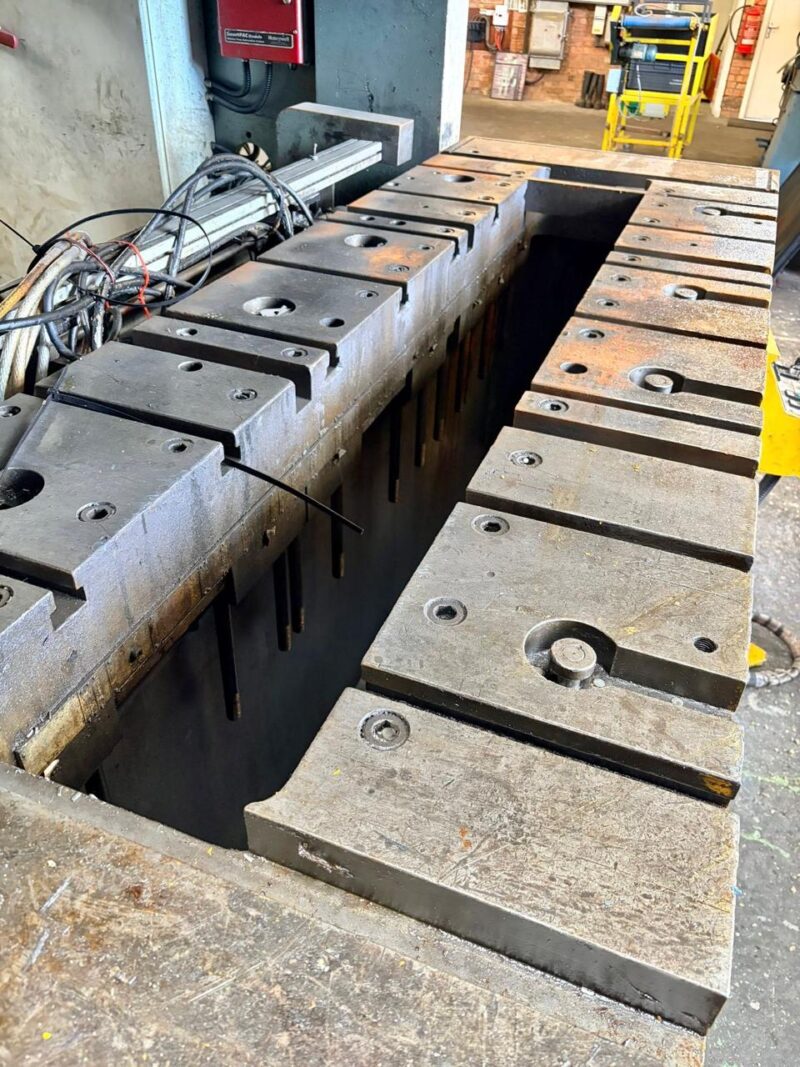

- Bolster : 2700 x 920
Accessories
Other Details (Approx)
- Clutch : Wet
- Main Motor : 30KW
- Power Required : 415V/50KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 9’-2”, L-R: 10’-0”, HT: 14’-2”
- Machine Weight : Tons
