INGERSOLL

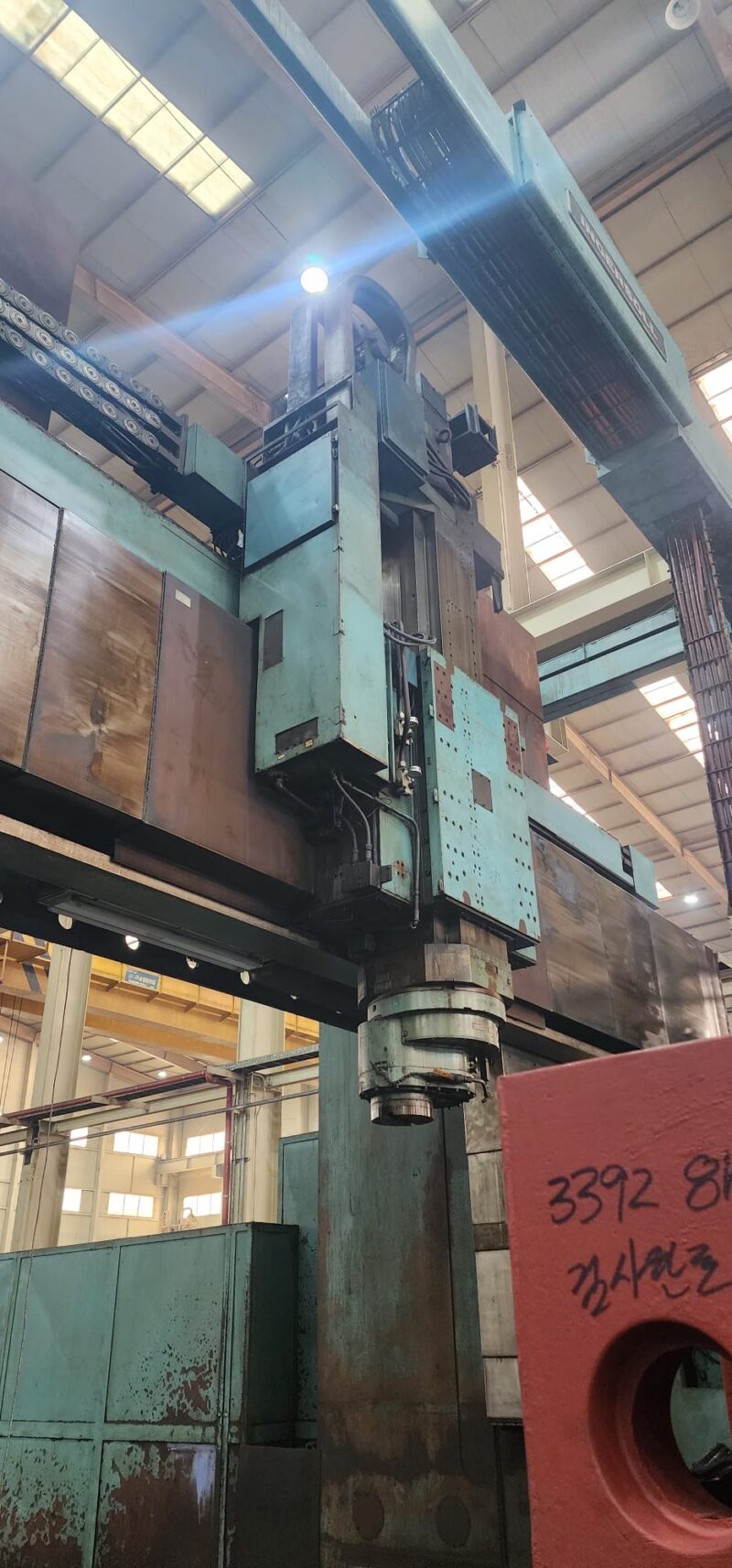

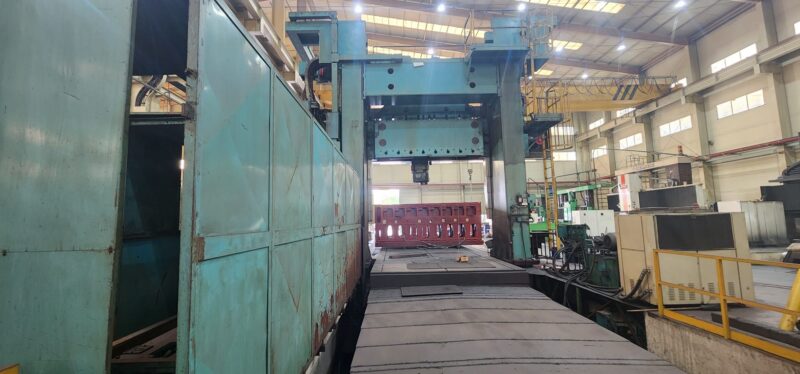

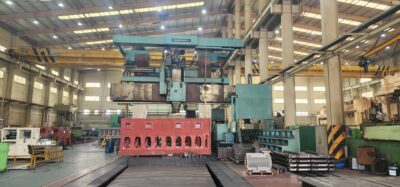

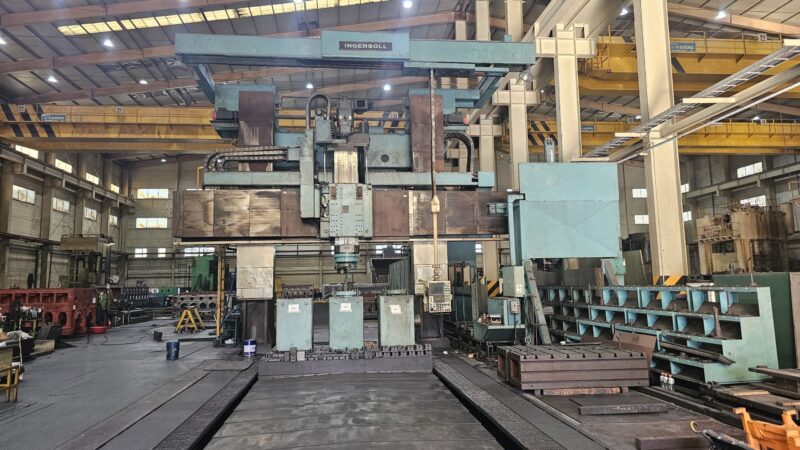

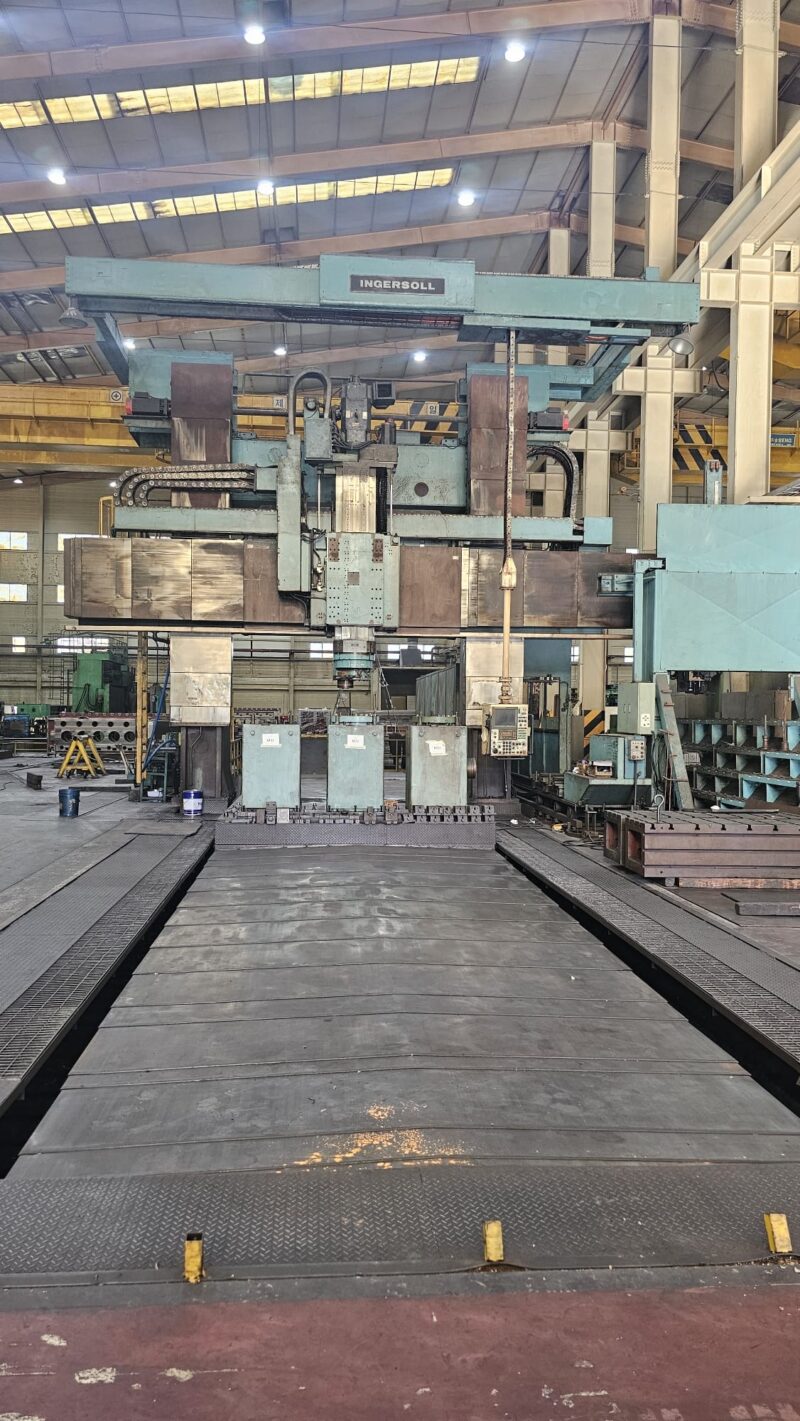

DOUBLE COLUMN MACHINING CENTER
INGERSOLL
HM # 0537
Brief Specifications/ Details
- X-Axis 9,550mm , Y-Axis Cross Travel 5,867mm
- Z-Axis Vertical Travel 990mm
- C-Axis Travel Masterhead Drum 360 Degrees

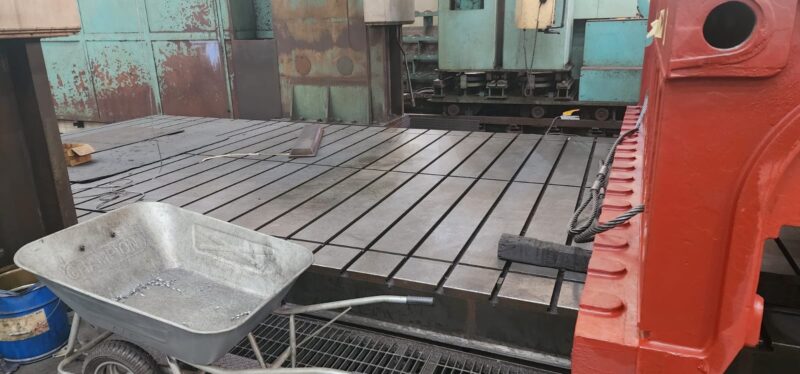

- Table : 10,000mm x 3,479mm
- Table Load Capacity 20 Ton
- Maximum Height 4,425mm
- Maximum Distance Between Columns 3,886mm
- Main Spindle Drive 125 HP

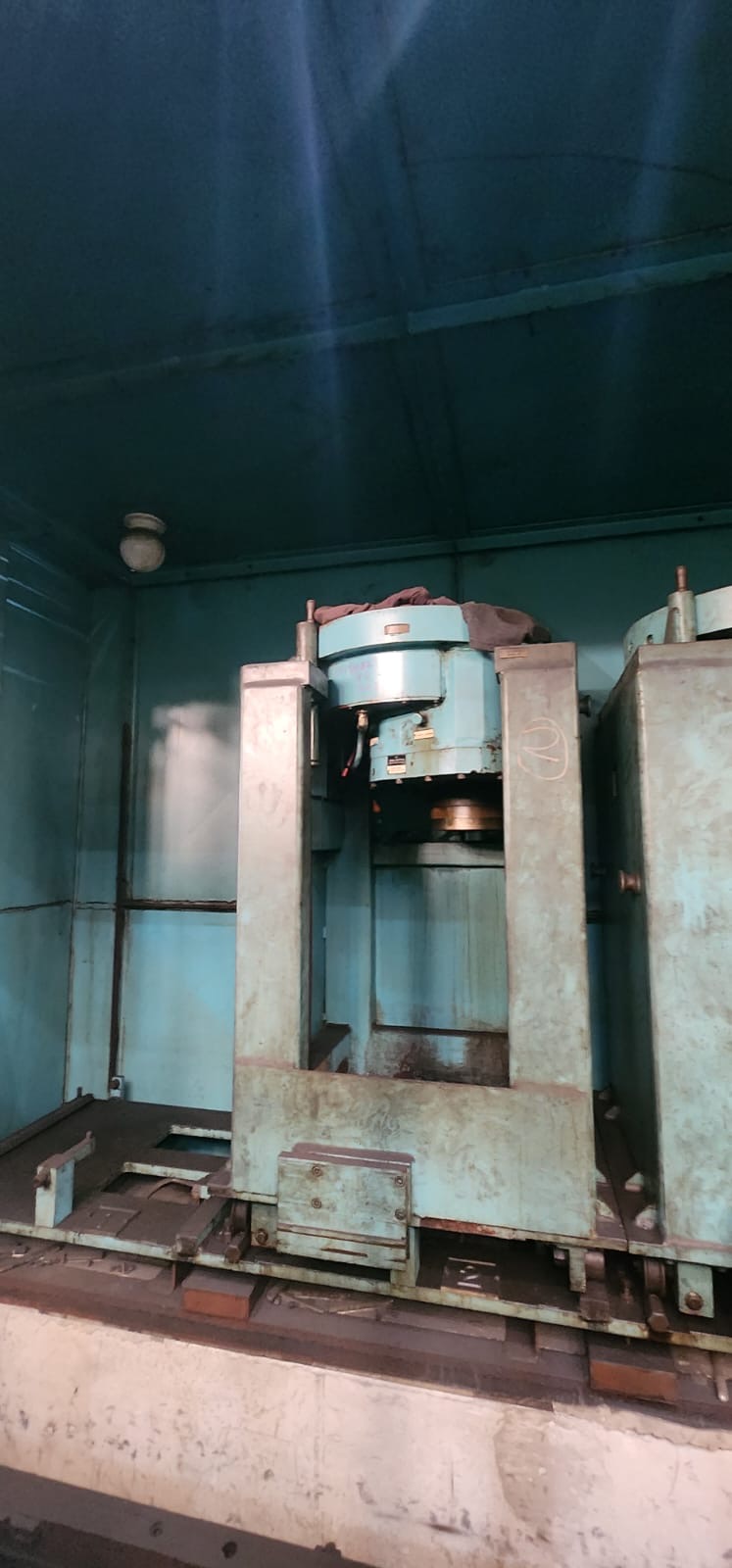

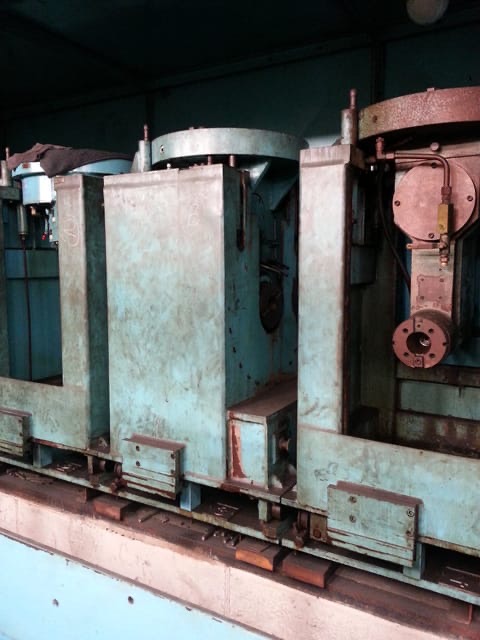

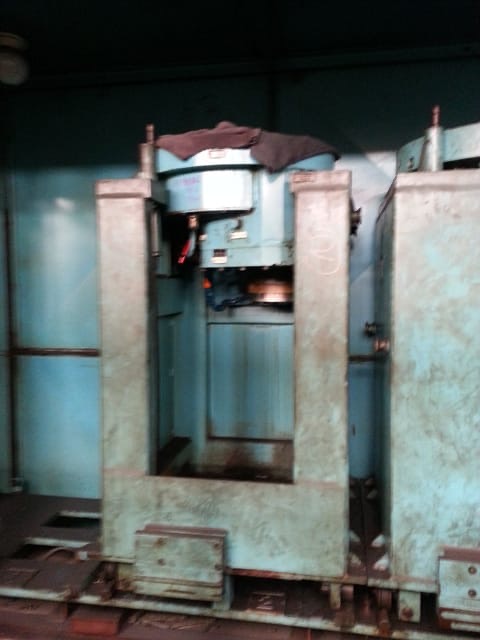

Accessories
Other Details (Approx)
- Power Required: V/KVA Phase:3
- Main Motor:KW
- Air Required: /sqcm
- Working Space: F-B: 0’-0”, L-R: 0’-0”, HT: 0’-0”
- Packing Size: F-B: 0’-0”, L-R: 0’-0”, HT: 0’-0”
- Net Weight: Tons
