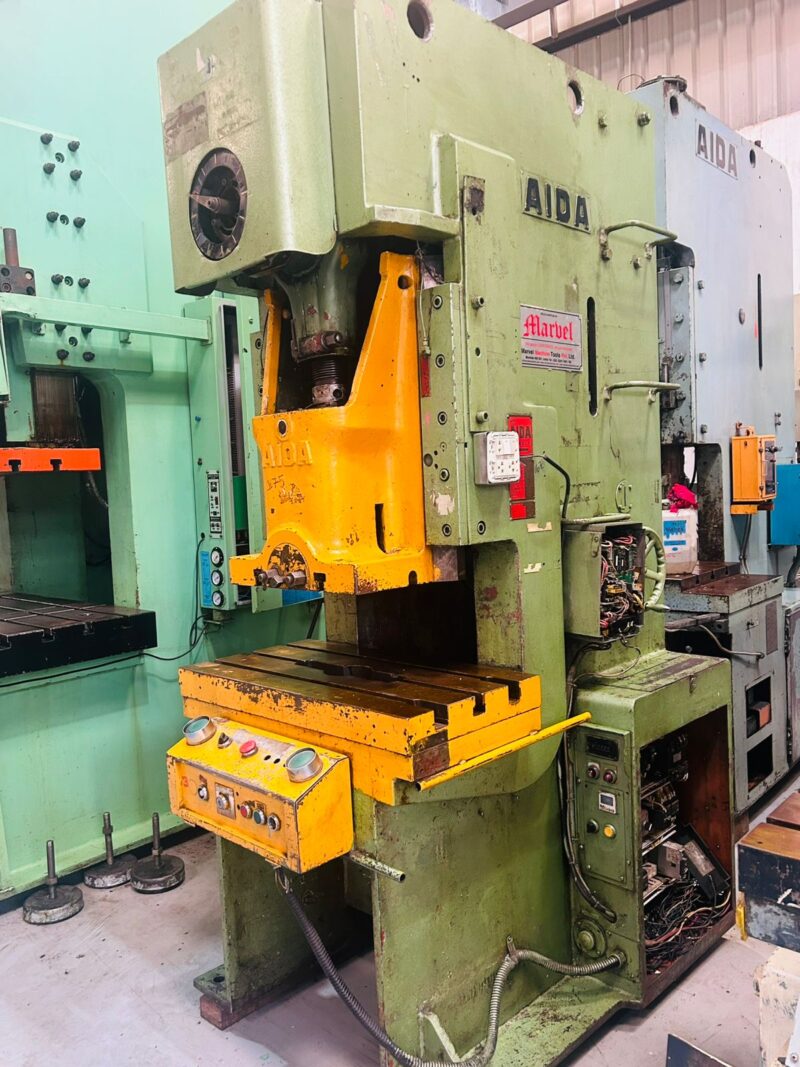

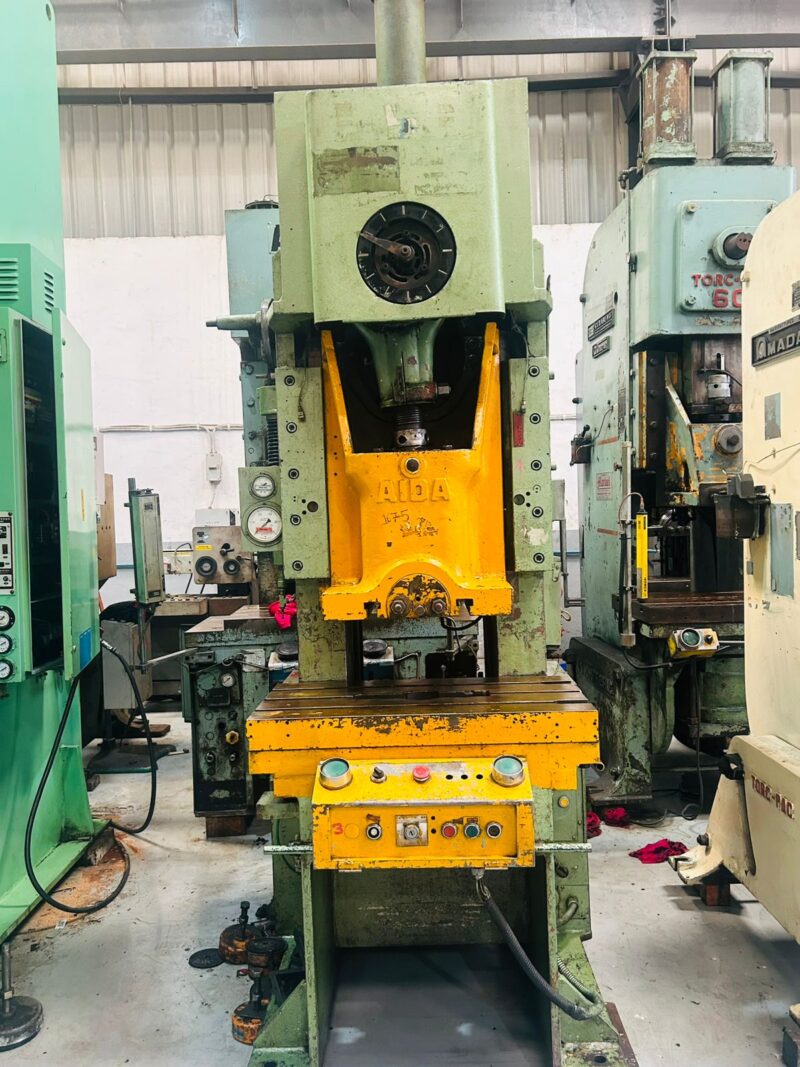

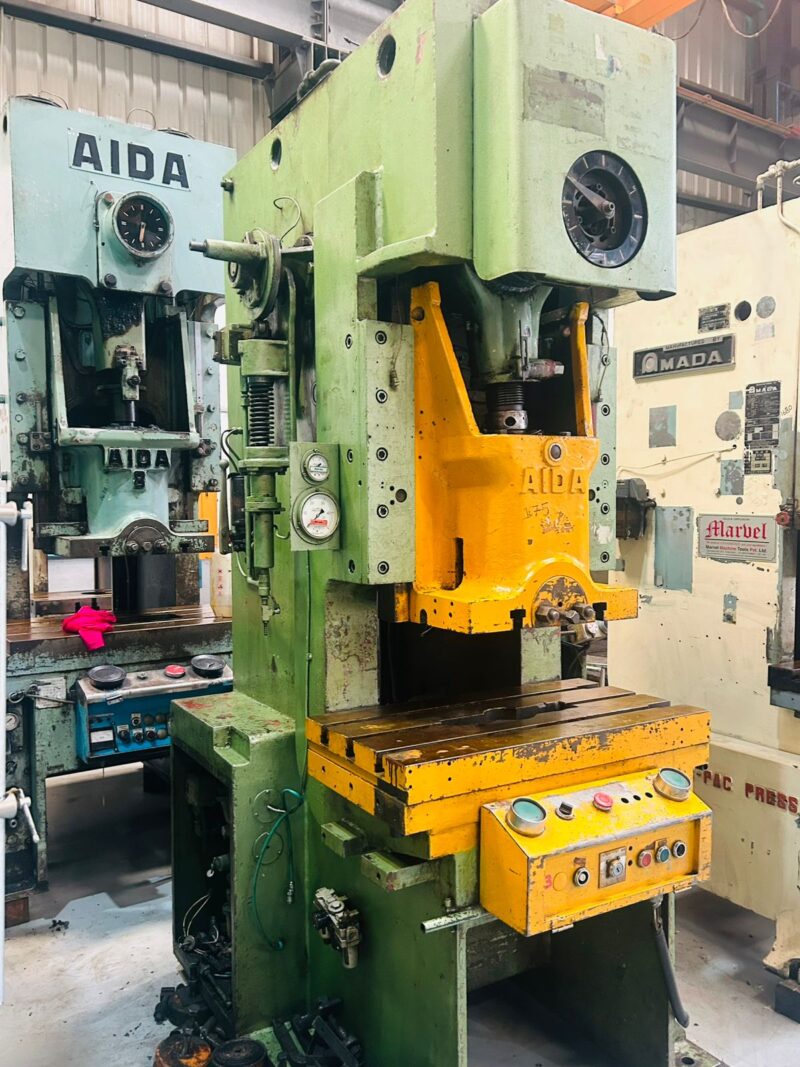

AIDA JAPAN MODEL : PP – XGC-55
C FRAME SINGLE CRANK PRESS
AIDA JAPAN
MODEL : PP – XGC-55
SKU # 1675
Brief Specifications/ Details
- Cap : 55Tons
- Stroke : 65mm
- Die Height : 250mm
- Adjustment : 60mm
- SPM : 80
- Slide : 475 x 335mm
- Bolster : 850 x 450mm
Accessories
Other Details (Approx)
- Clutch : Dry
- Main Motor : 3.7 KW
- Power Required : 220V/4.5KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 5’-0”, L-R: 3’-6”, HT: 10’-0”
- Machine Weight : 5 Tons
