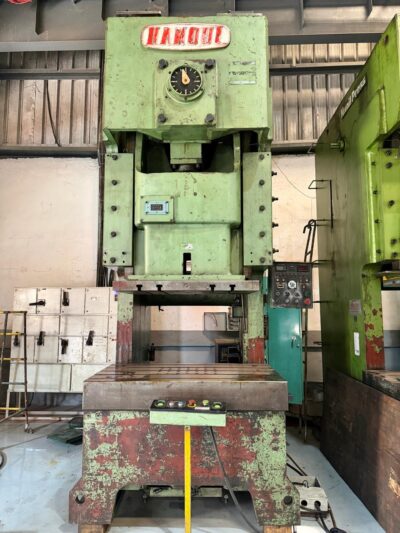

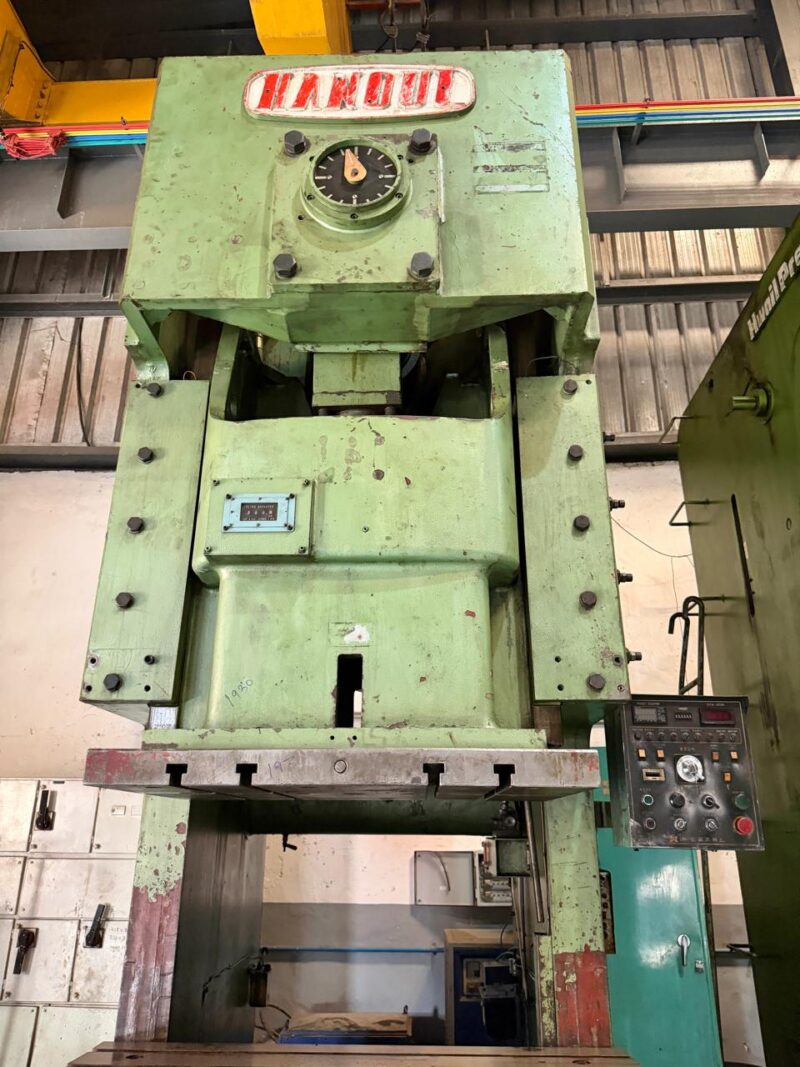

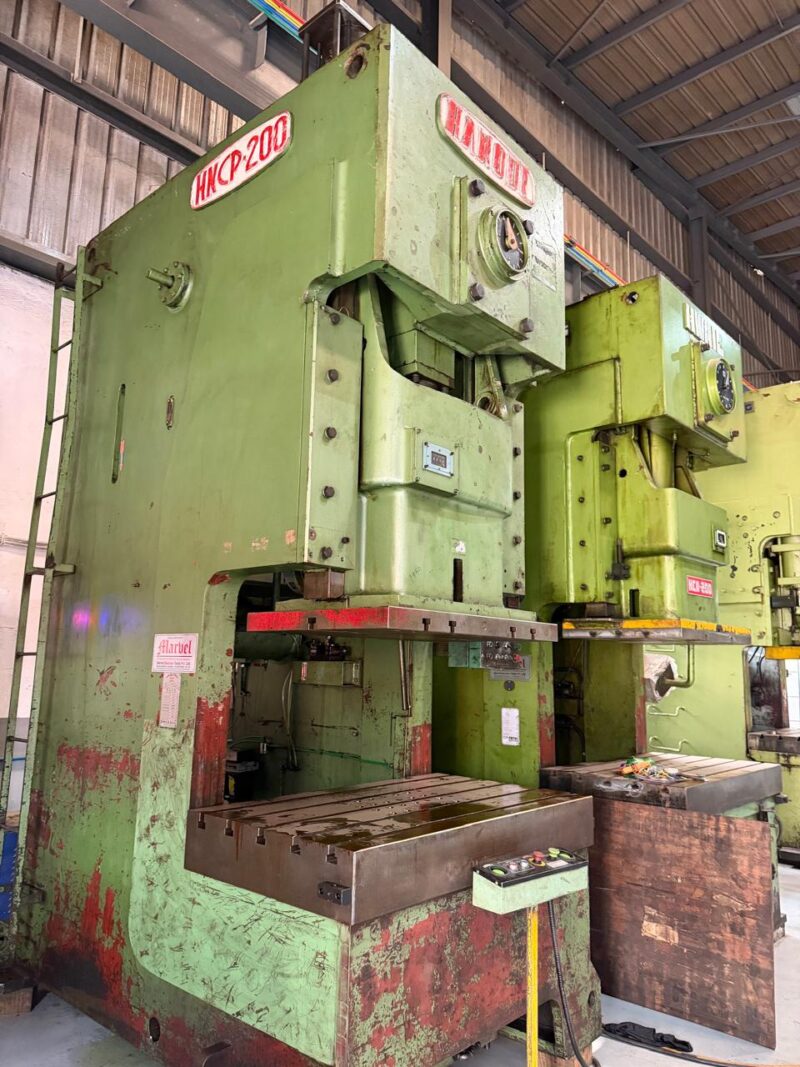

HANOUL KOREA MODEL : HNCP-200
C FRAME SINGLE CRANK PRESS
HANOUL KOREA
MODEL : HNCP-200
SKU # 1930
Brief Specifications/ Details
- Cap : 200 tons
- Stroke : 250mm
- Die height : 500mm
- Adjustment : 110
- SPM : 30~45
- Slide : 1100 x 750mm

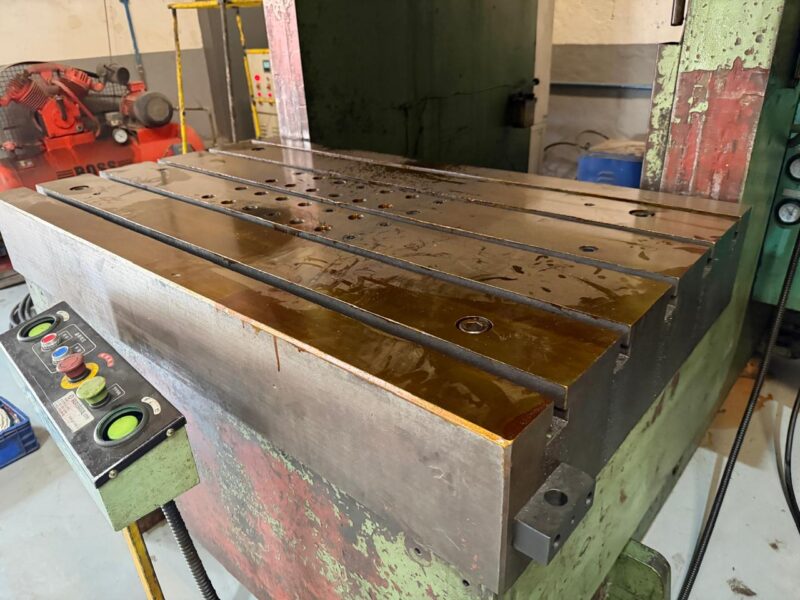

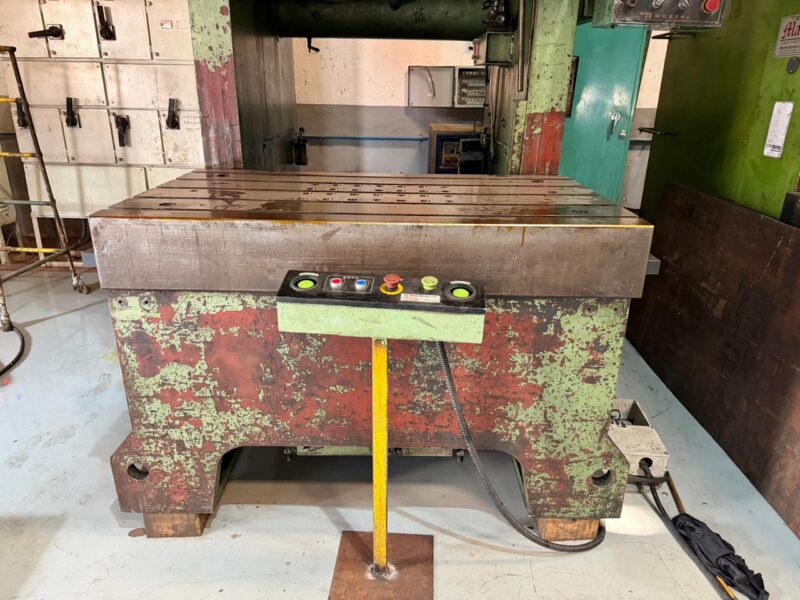

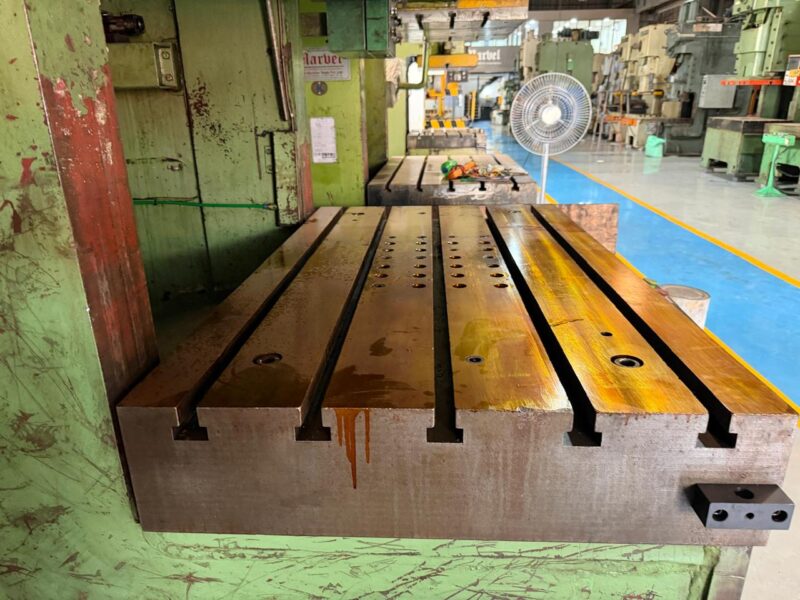

- Bolster : 1450 x 850mm
Accessories
- With Die Cushion
- Pad Area – 450 x 225mm
Other Details (Approx)
- Clutch : Dry
- Main Motor : 22 KW
- Power Required : 380V/27KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 8’-5”, L-R: 6’-10”, HT: 14’-0”
- Machine Weight : AP – 20Tons
