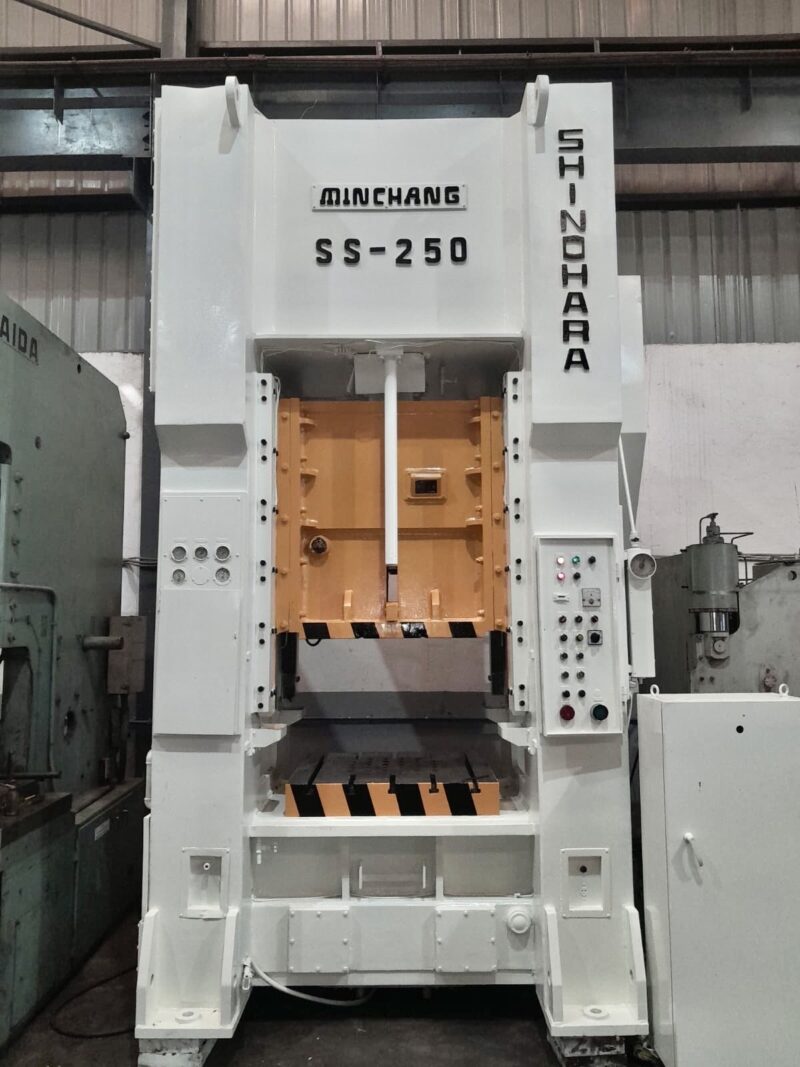

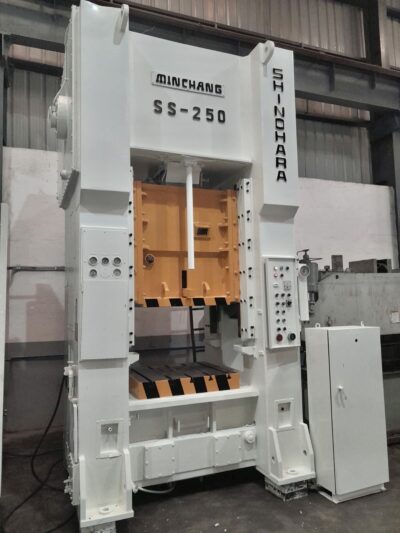

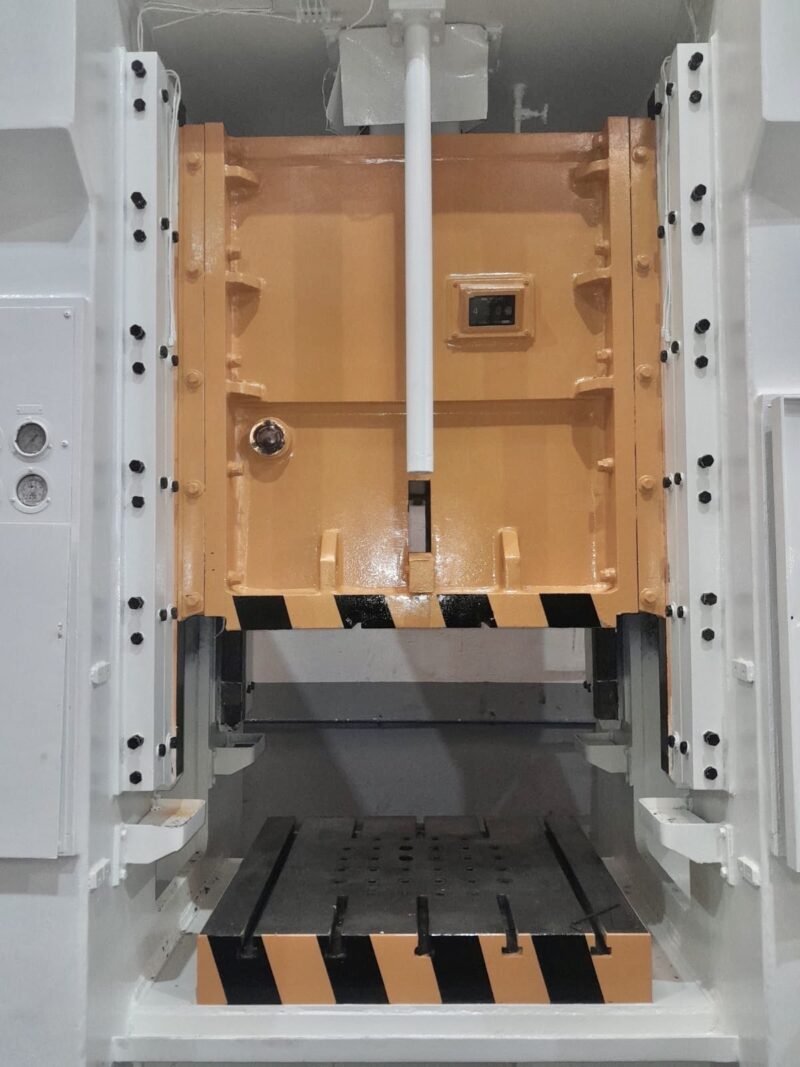

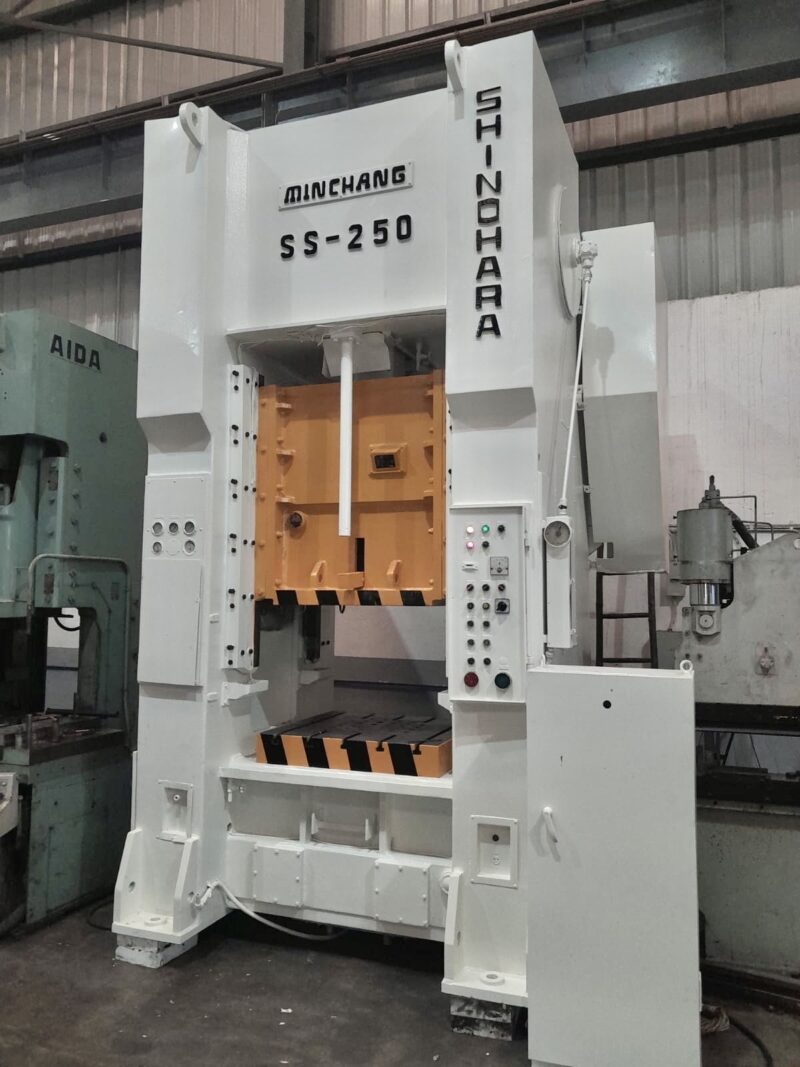

SHINOHARA MINCHANG TAIWAN MODEL: SS-250
‘H’ FRAME SINGLE CRANK PRESS
SHINOHARA MINCHANG TAIWAN
MODEL: SS-250
SKU # 1512
Brief Specifications/ Details
- Cap: 250Tons
- Stroke: 250mm
- Die Height: 500mm
- Adjustment: 160mm
- Spm: 35
- Ram Size: 800 x 800mm
- Bed Size: 1000 x 900mm
Accessories
Other Details (Approx)
- Power Required: V/KVA Phase:3
- Main Motor: KW
- Air Required: 5.5kg/sqcm
- Working Space: F-B: 0’-0”, L-R: 0’-0”, HT:0’-0”
- Packing Size: F-B: 0’-0”, L-R: 0’-0”, HT: 0’-0”
- Net Weight: Tons
