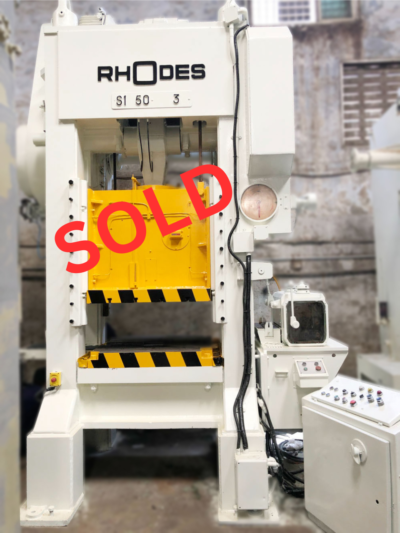

RHODES UK MODEL: S1-150-38-36
H Type Single Crank / High Speed Press Line
RHODES UK
MODEL: S1-150-38-36
SKU # 0843
Brief Specifications/ Details
- Cap: 150Tons
- Stroke: 80mm
- Bed Size: 970 x 910mm
- Ram Size: 960 x 940mm
- Dist. Btw. Column: 1120mm
- Shut Height: 400mm
- Adjustment: 150mm
- SPM: 100
- Bed Opening: 580 x 280mm
Accessories
- With Feeder, Decoiler, Leveller
- Wiring Panel, Feeder Panel.
Other Details (Approx)
- Power Required: 220V/ 20KVA / Phase: 3
- Main Motor: 30HP
- Air Required: 6.5kg/sqcm
- Working Space: F-B: 7′-6”, L-R: 10′-7”, HT: 15′-8”
- Packing Size: F-B: 7′-6”, L-R: 10′-7”, HT: 15′-8”
- Net Weight : Tons
