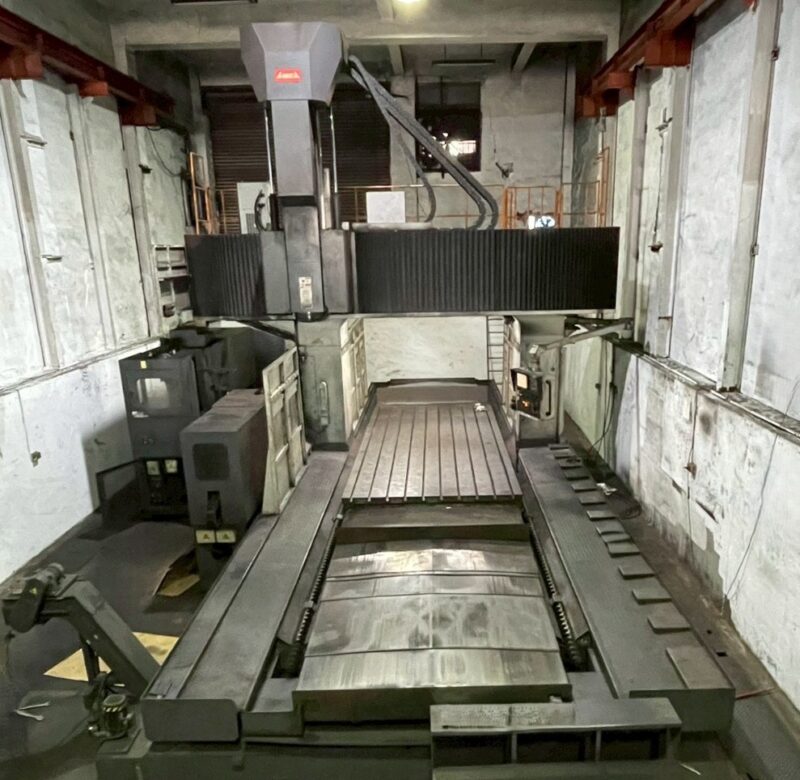

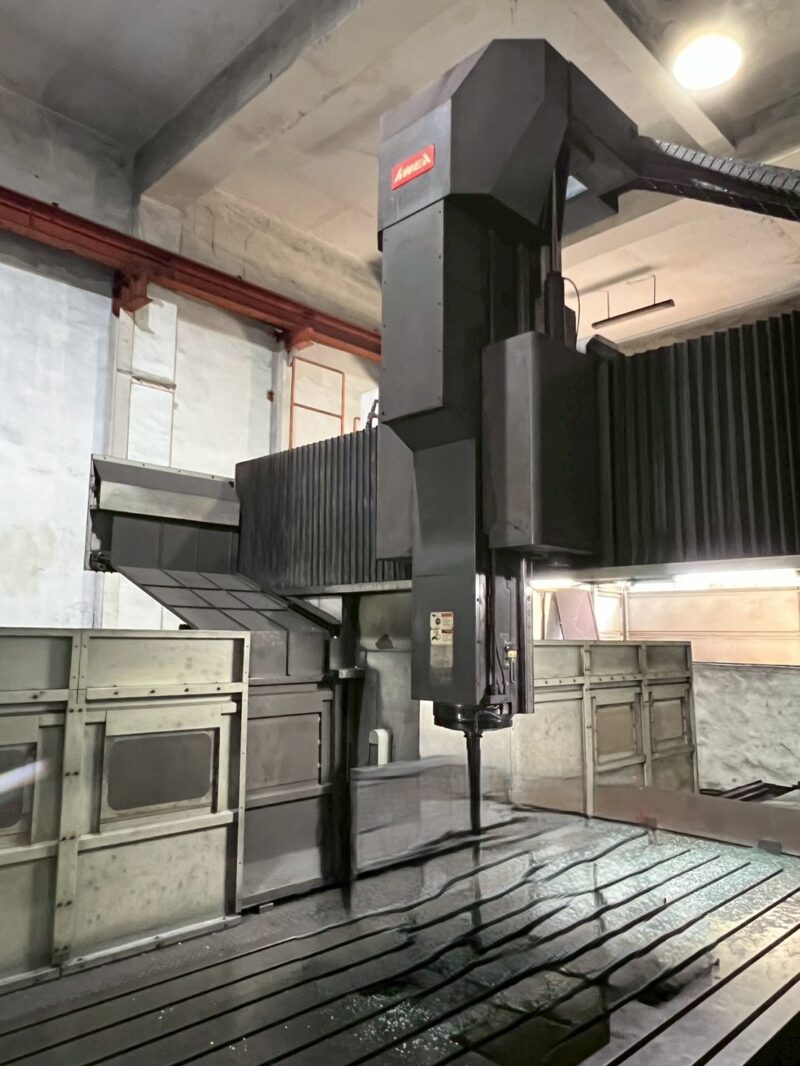

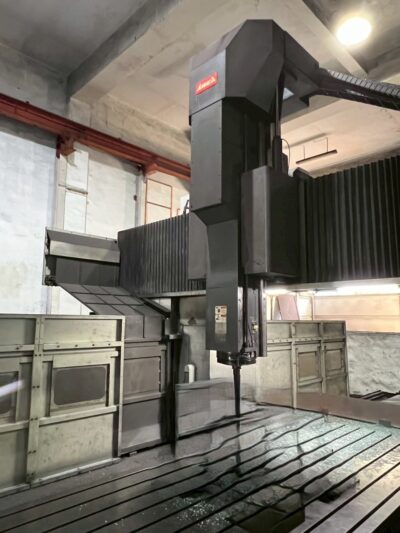

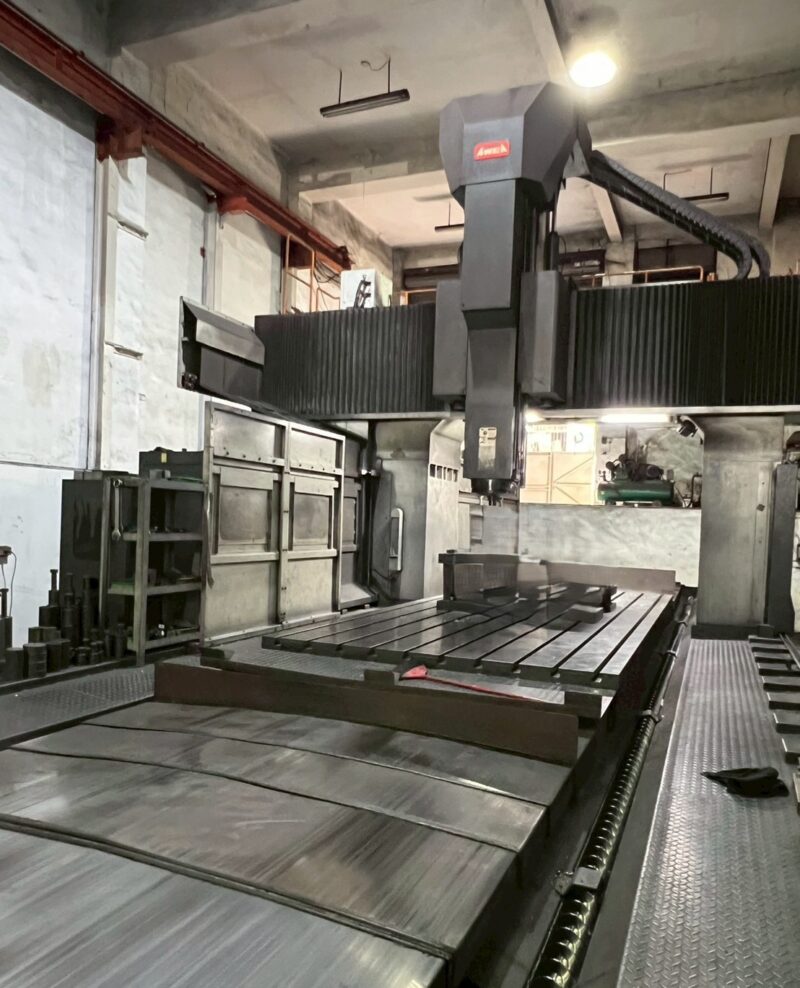

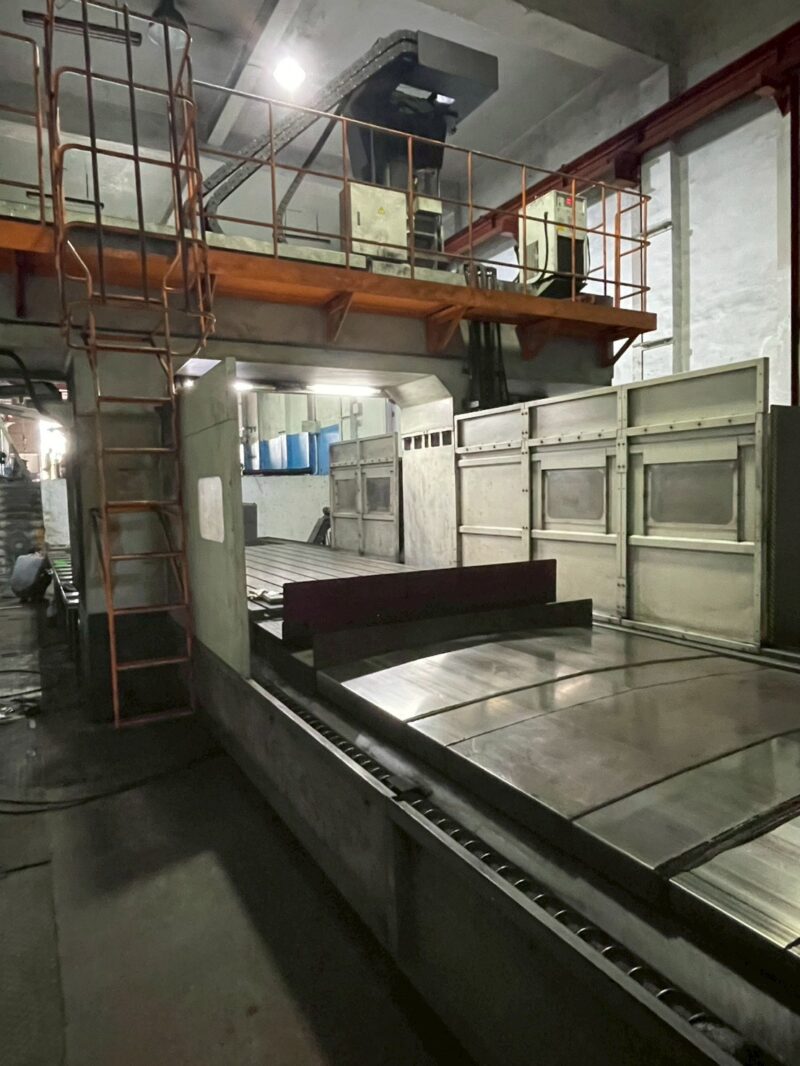

CNC 5 FACE DOUBLE COLUMN MACHINING CENTER

AWEA TAIWAN
MODEL : HVM-5025

HM # 0607

Brief Specifications/ Details

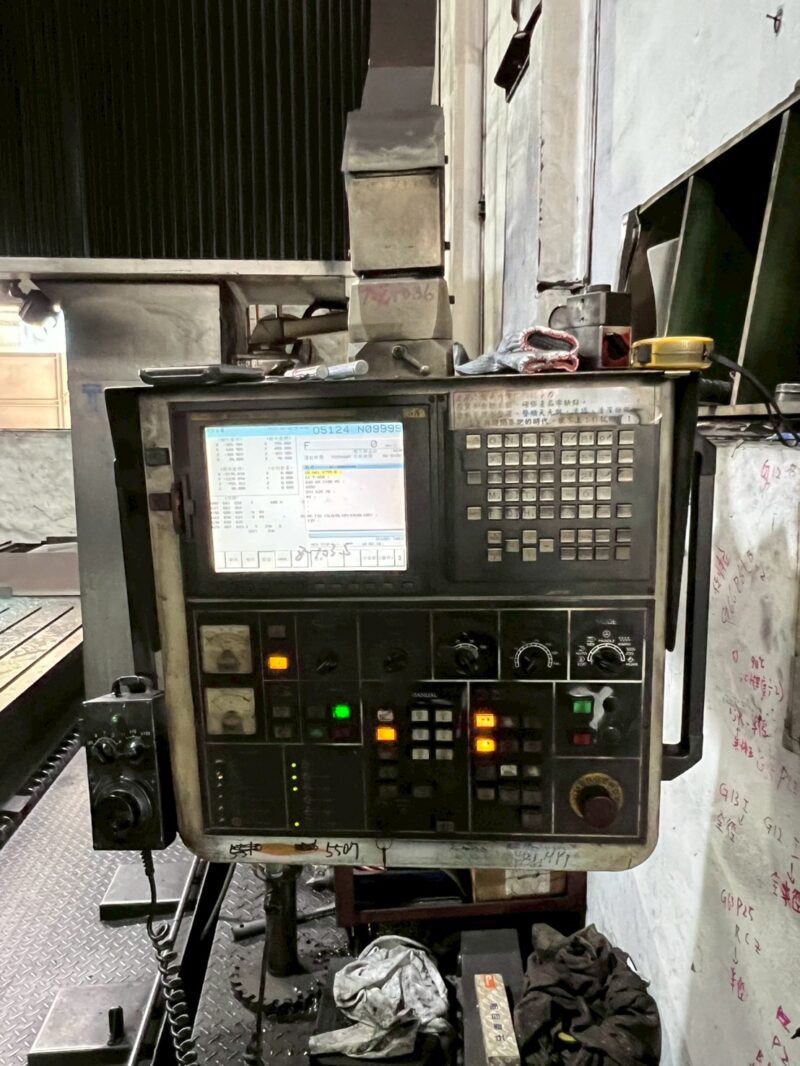

• Controller : FANUC 18i-MB, X/Y/Z axis
• Travel : 5,000/3,200/1,400mm
• Dist. between columns : 2,550mm
• Door height : 1,700mm
• Table size : 5,020mmx2,300mm
• Spindle speed : 4,000rpm (Gear type),

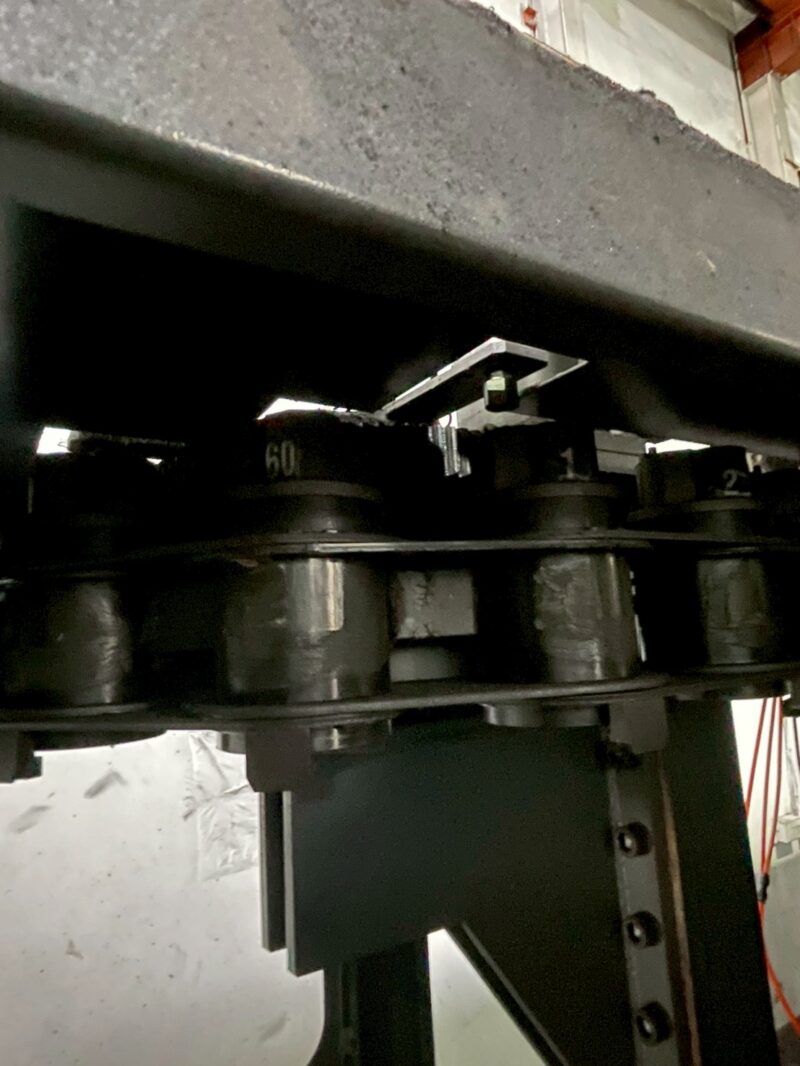

• BT50 / 60ATC, Auto head

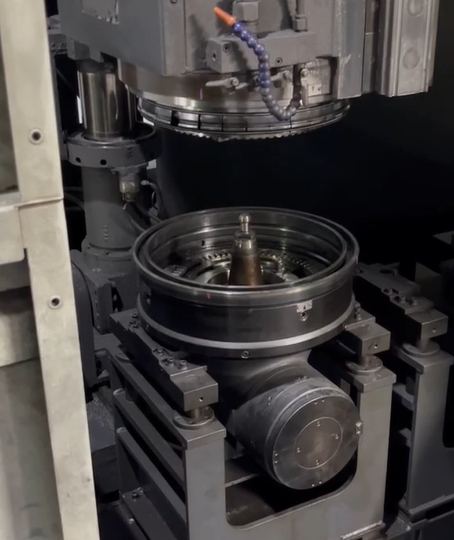

• storage : 90 degree head (auto 5ﾟ indexing)
• X/Y/Z axes linear guide way
• X/Y axes linear scale
• Spindle oil cooler

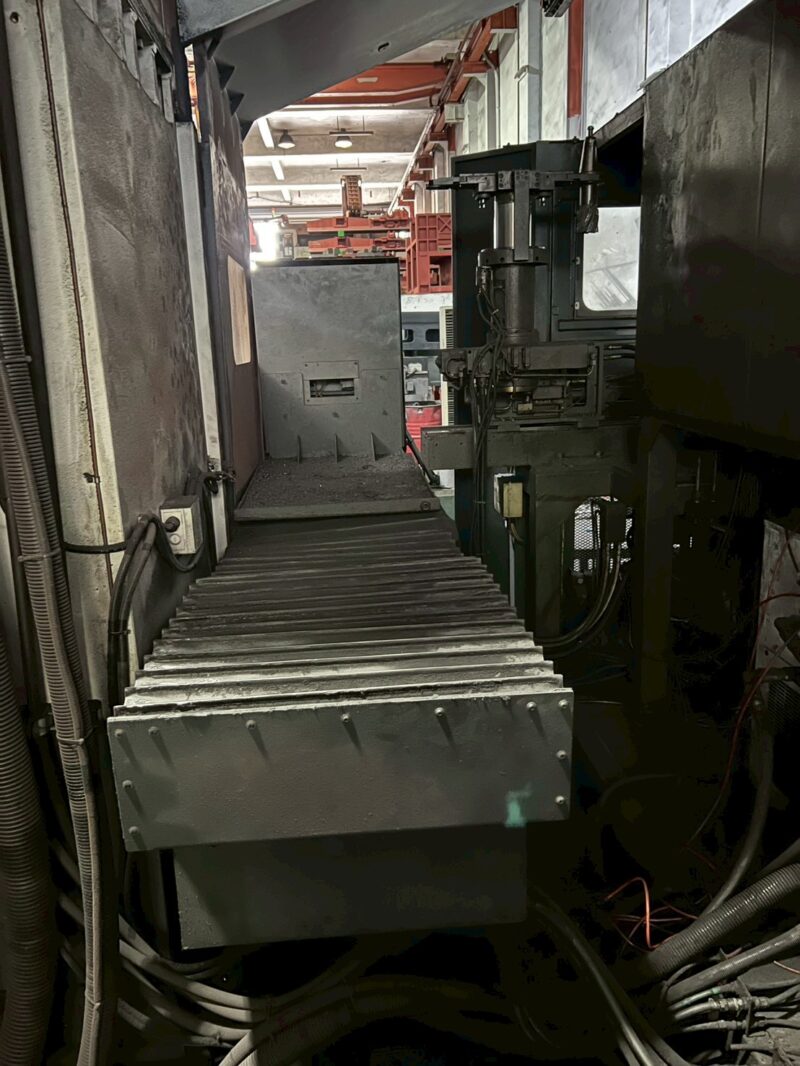

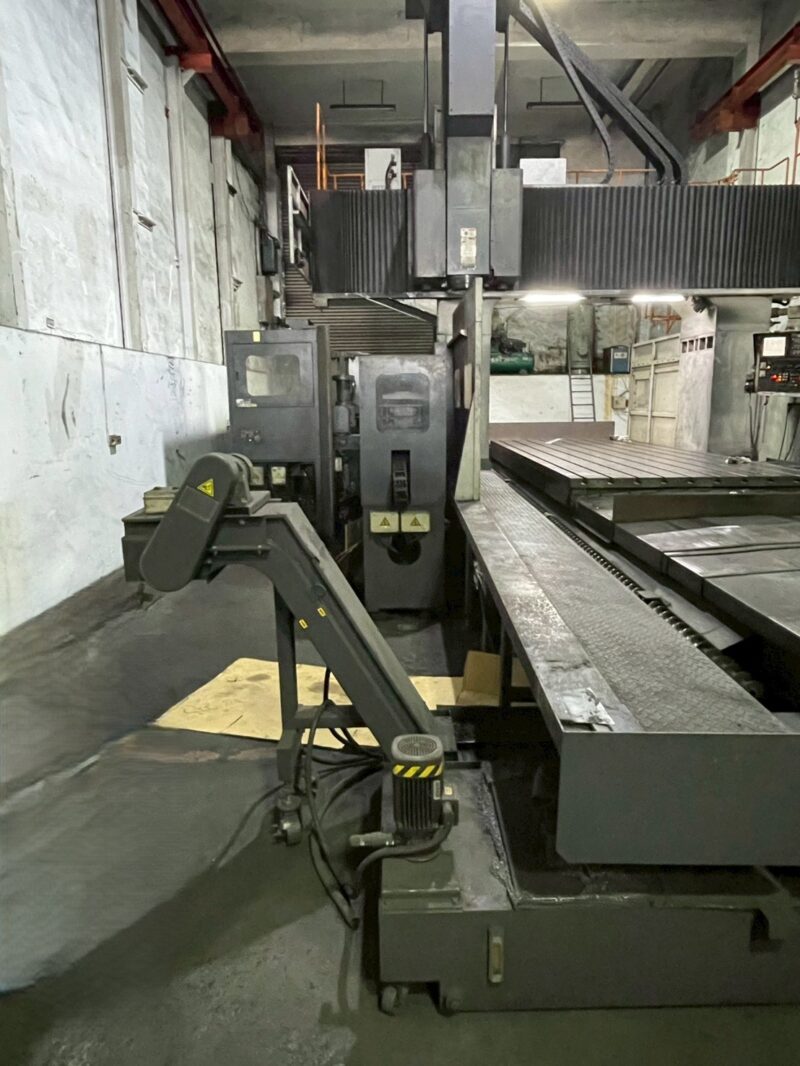

• Chip conveyer Machine size : 13000*6900*6900mm

 Other Details (Approx)

• Clutch :
• Main Motor :  KW
• Power Required : V/KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 0’-0”, L-R: 0’-0”, HT: 0’-0”
• Machine Weight : Tons
