VTEC TAIWAN MODEL : NF-4233AC

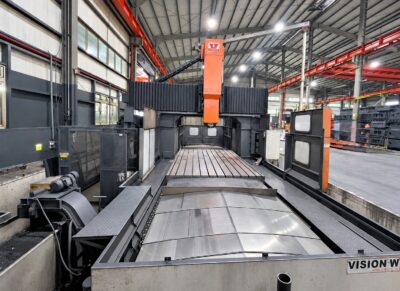

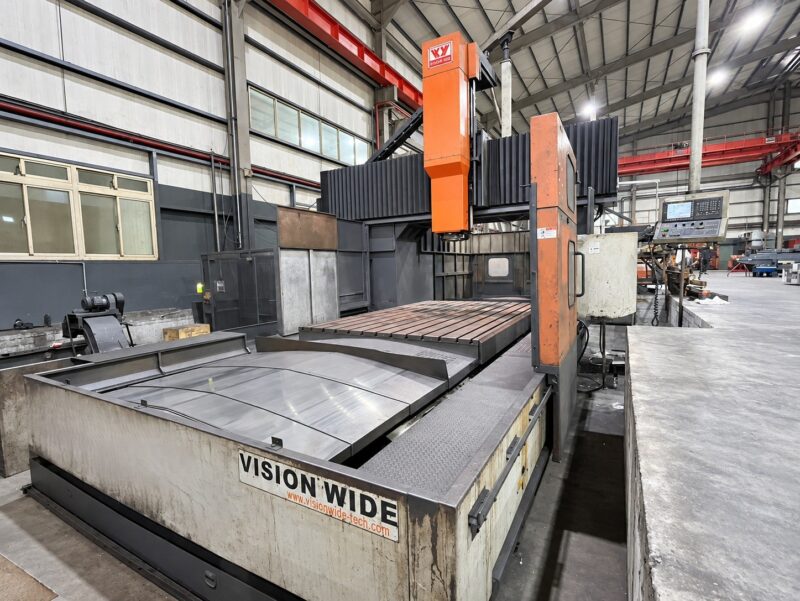

CNC 5 FACE DOUBLE COLUMN MACHINING CENTER
VTEC TAIWAN
MODEL : NF-4233AC
HM # 0606
Brief Specifications/ Details

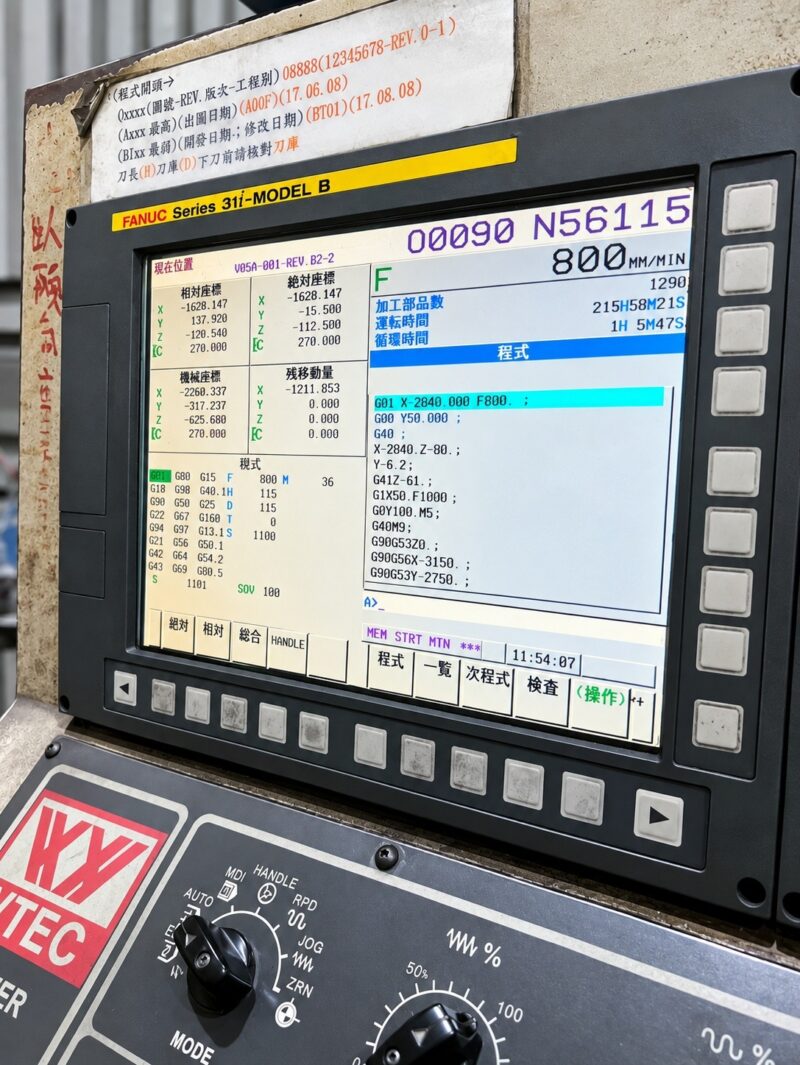

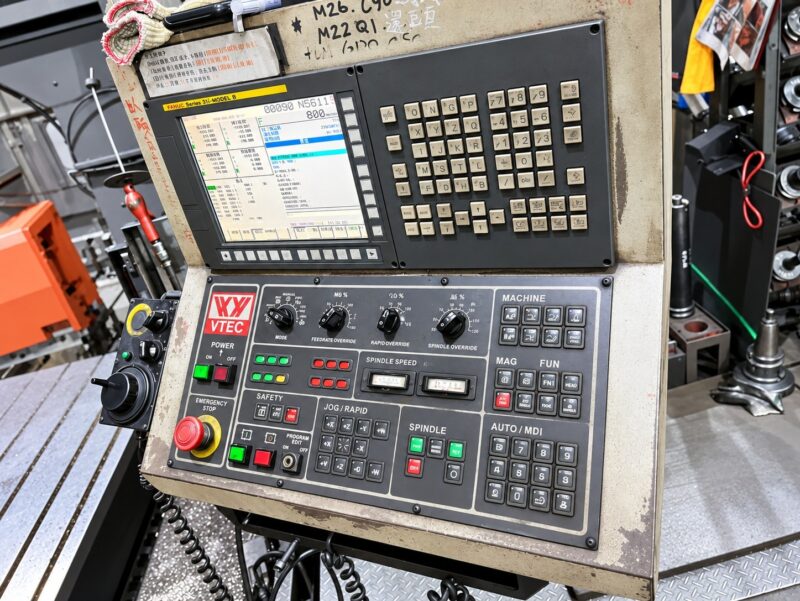

- Controller ：FANUC 31iMB
- X/Y/Z axis travel ：4,200/3,200/1,200mm
- Spindle nose to table：370-1,570 mm
- Dist. between columns ：2,700mm
- Table size : 4,000×2,450mm
- Spindle speed ：4,000 rpm (Gear type)
- Spindle motor：22/26 kw BT50 / 60ATC

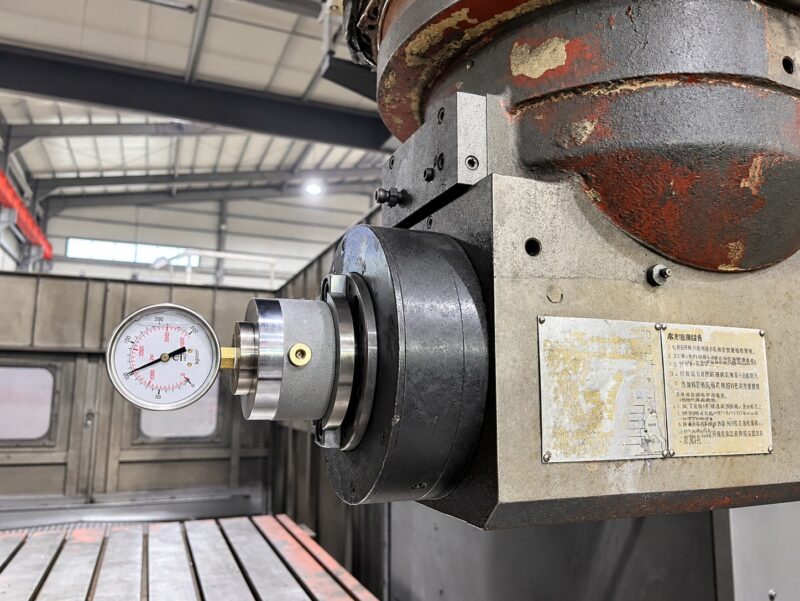

- Auto head storage : 90 degree head (auto 5 degree indexing)
- Manual extension head, X/Y/Z axis linear guide way
- Air conditioner
- Chip conveyor
- Machine size : 12000*8400*5500mm
Other Details (Approx)
- Clutch :
- Main Motor : KW
- Power Required : V/KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 0’-0”, L-R: 0’-0”, HT: 0’-0”
- Machine Weight : Tons
