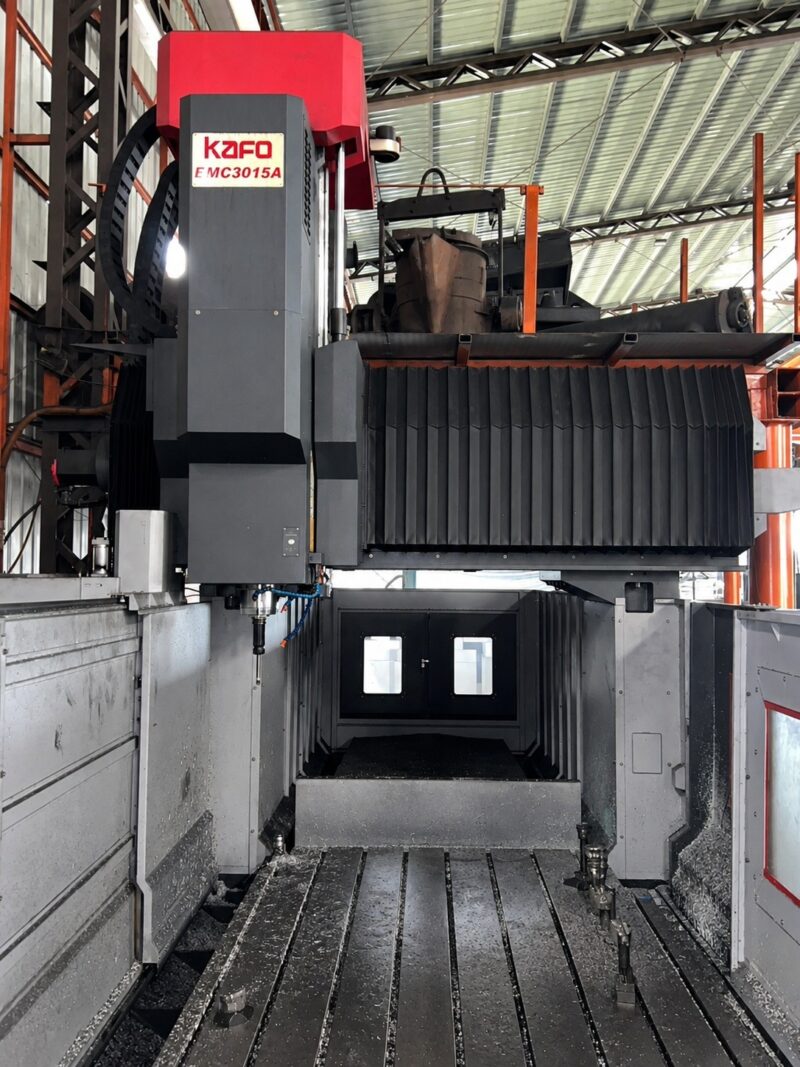

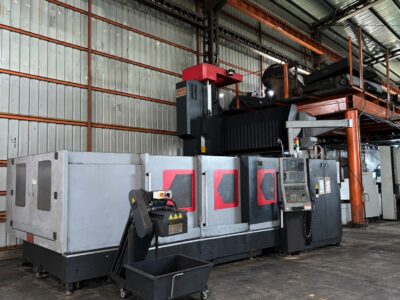

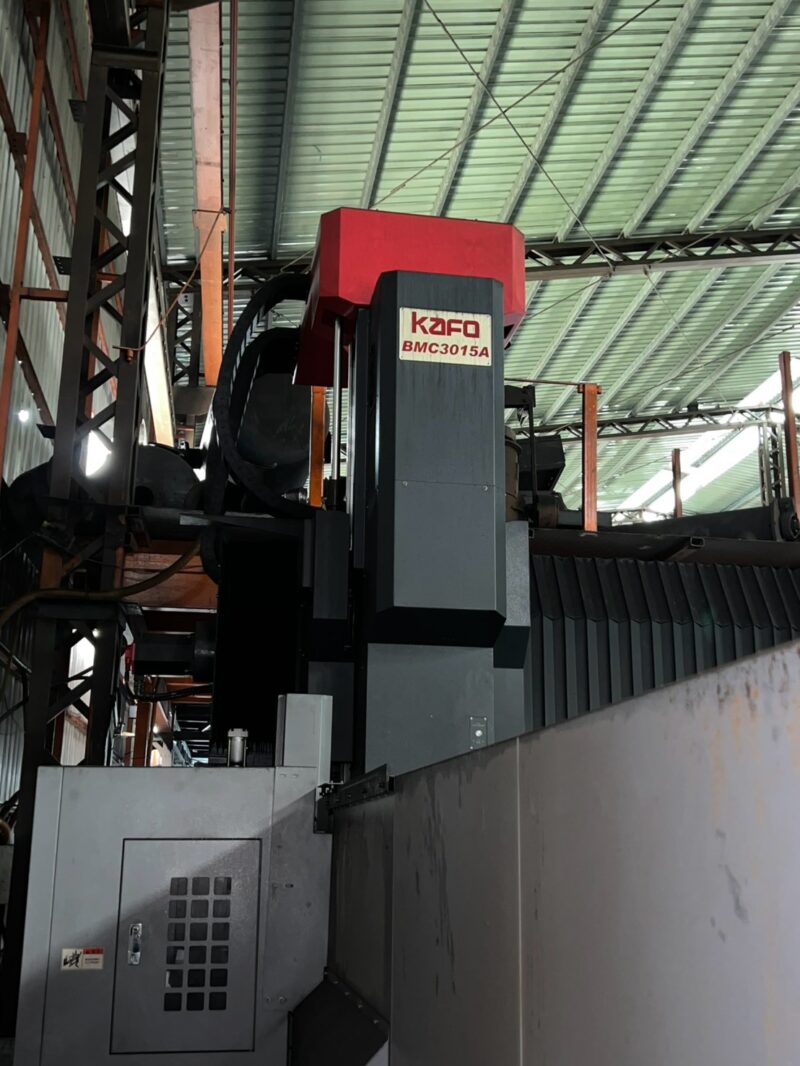

CNC DOUBLE COLUMN MACHINING CENTER

KAFO TAIWAN
MODEL : BMC-3015A

HM # 0605

Brief Specifications/ Details

• Controller ：FANUC 0i-MF PLUS(10.4”LCD), X/Y/Z
• axis travel ：3,100/1,500/800 mm
• Spindle nost to table : 150-950mm
• Dist. between columns ：1,650 mm

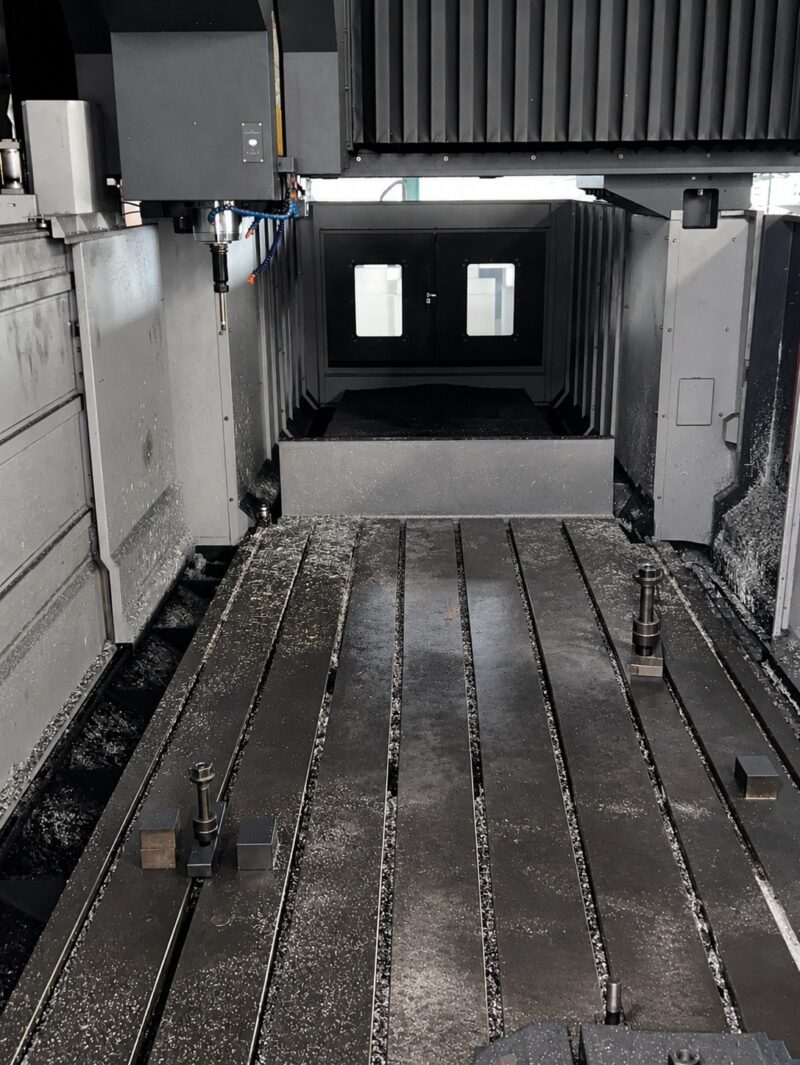

• Table size ：3,000×1,400 mm

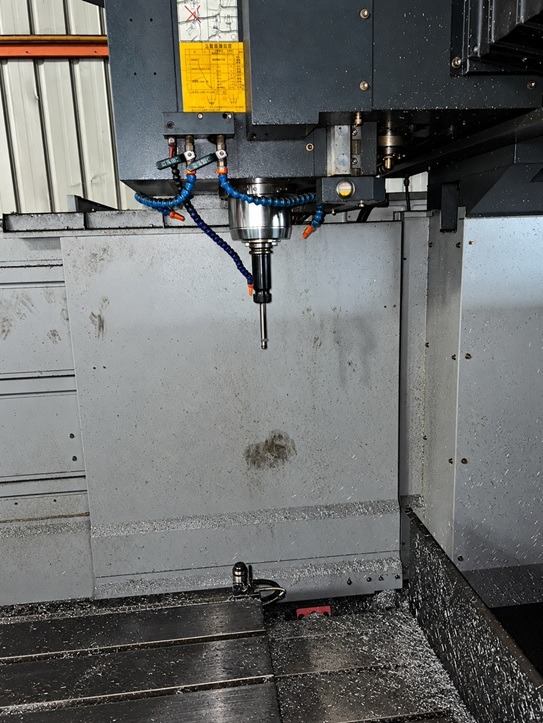

• Spindle speed ：12,000 rpm (Direct type)
• Spindle motor：FANUC α18/12000i 15/18.5 kw

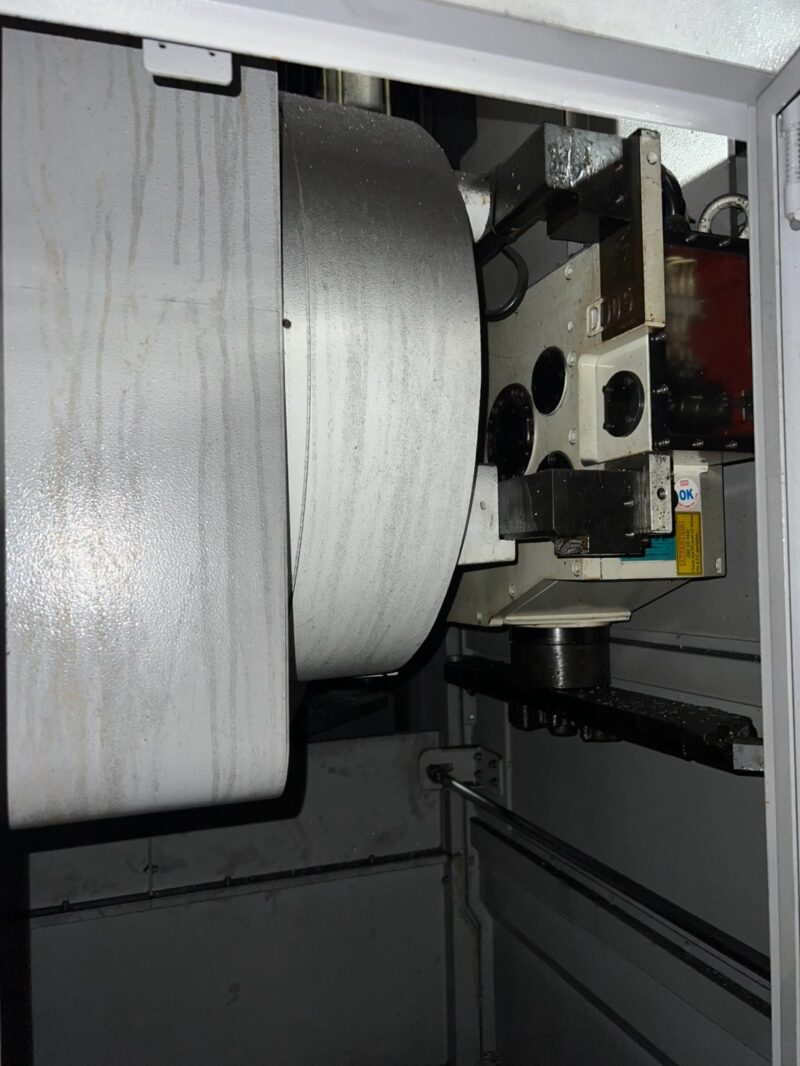

• BT40 / 40ATC, X/Y/Z axes linear guide way
• Heidenhain 3 axis linear scale + air blast
• BLUM tool measuring system
• Air thru spindle
• Spindle oil cooler

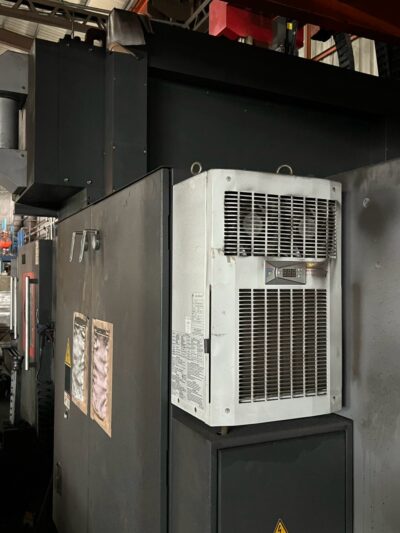

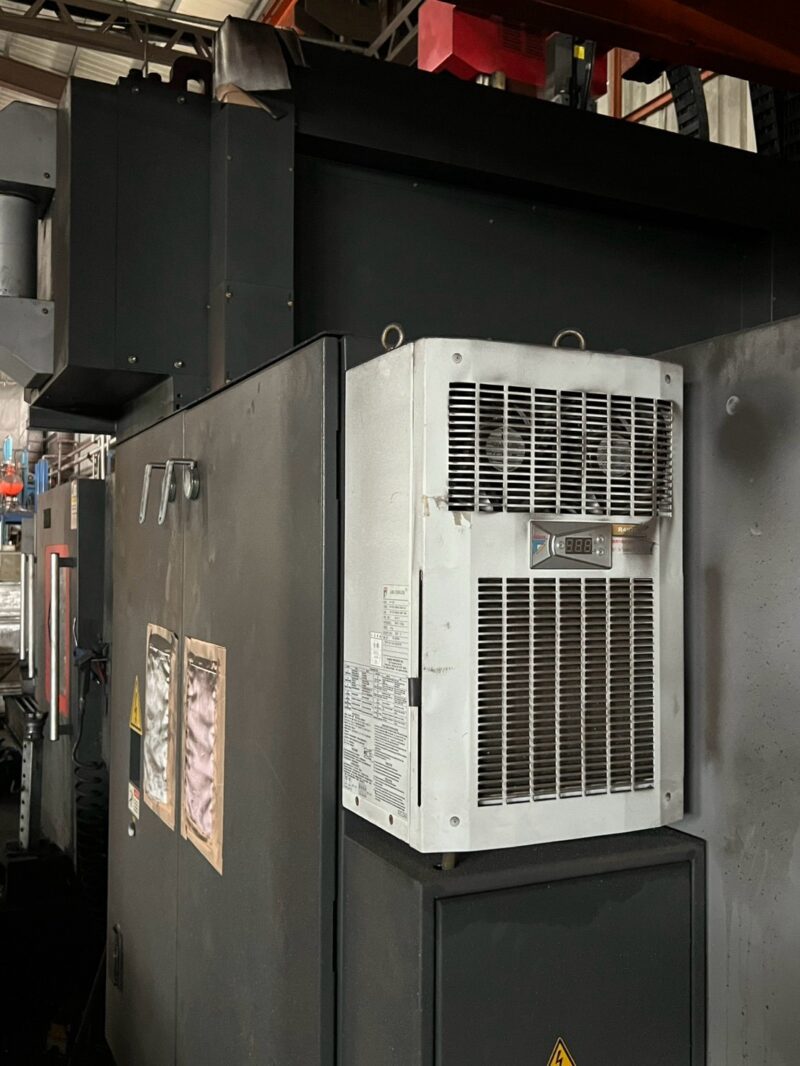

• Air conditioner
• Chip conveyor + bucket
  Machine size: 8200*3300*3600mm

 Other Details (Approx)

• Clutch :
• Main Motor :  KW
• Power Required : V/KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 0’-0”, L-R: 0’-0”, HT: 0’-0”
• Machine Weight : Tons
