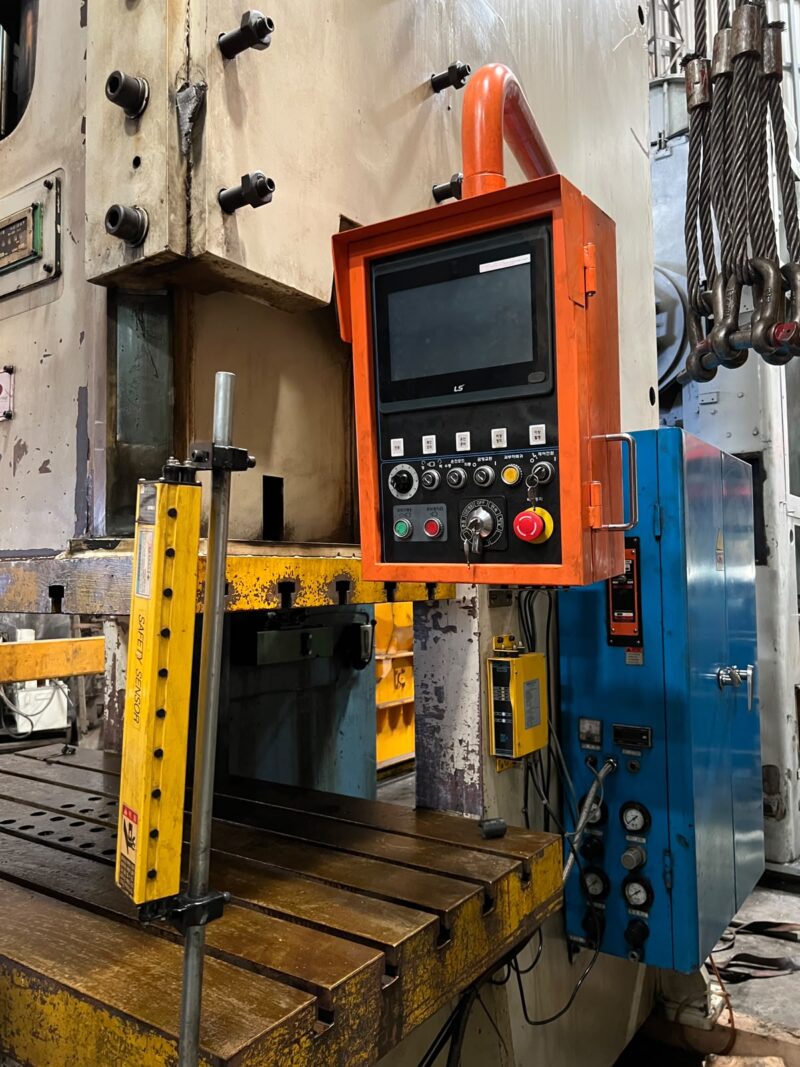

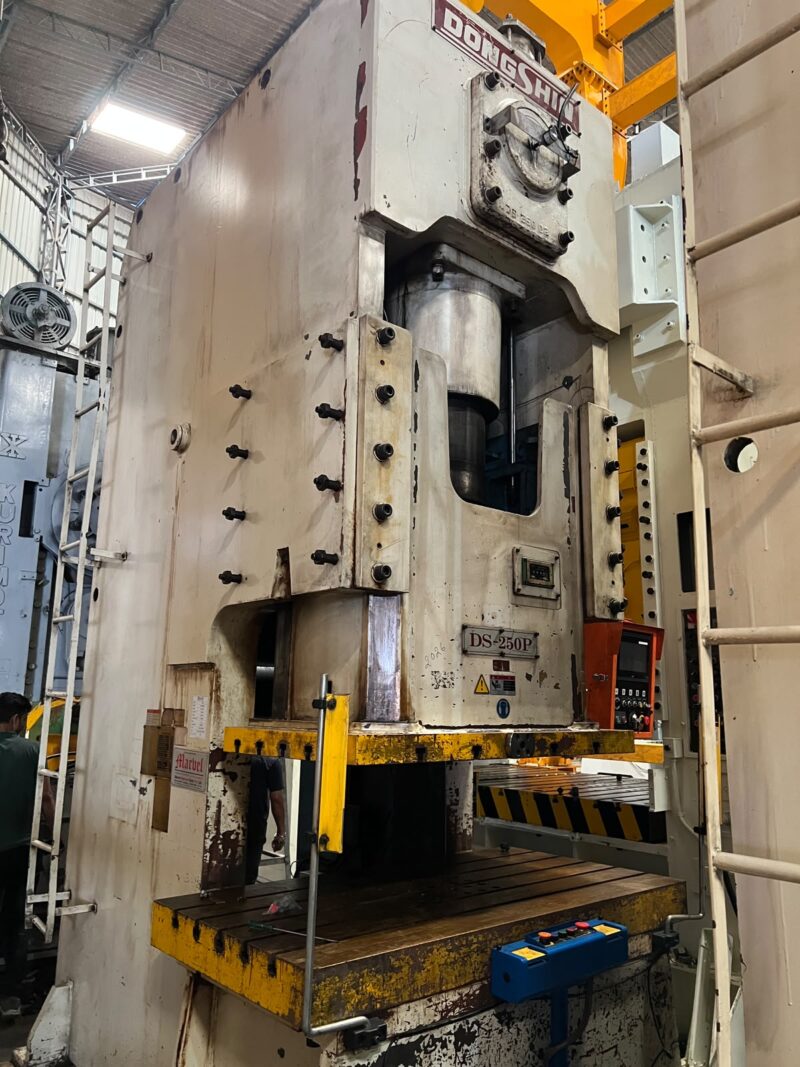

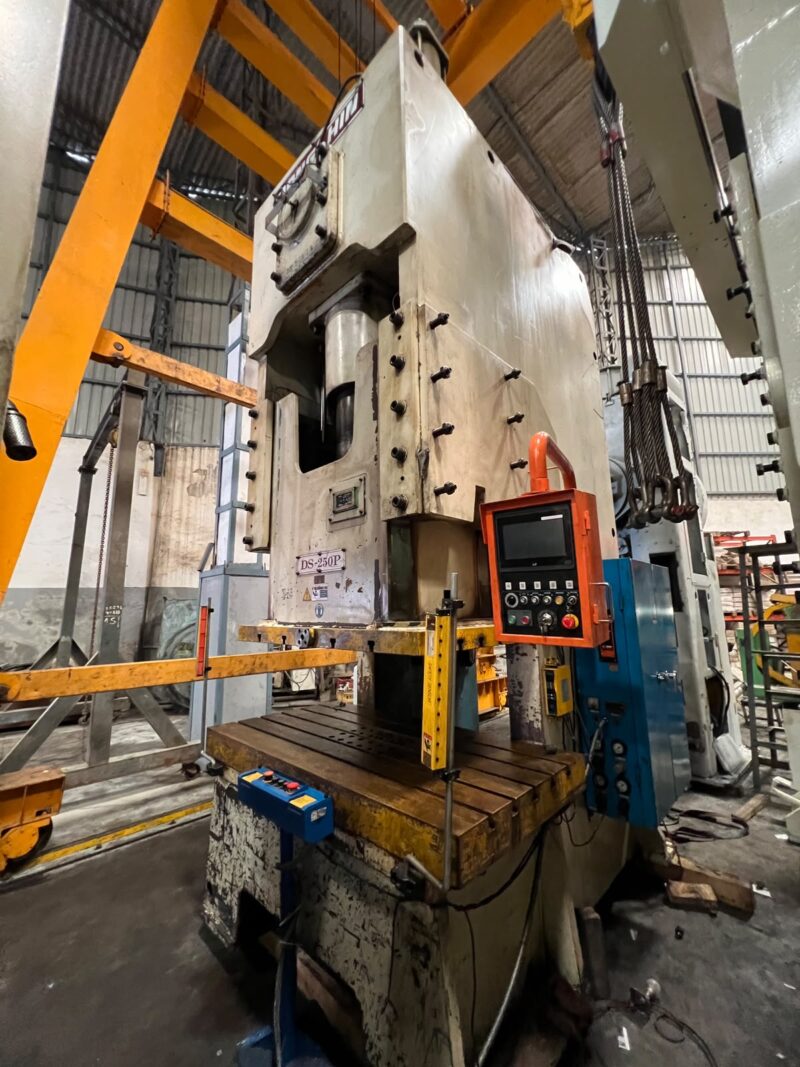

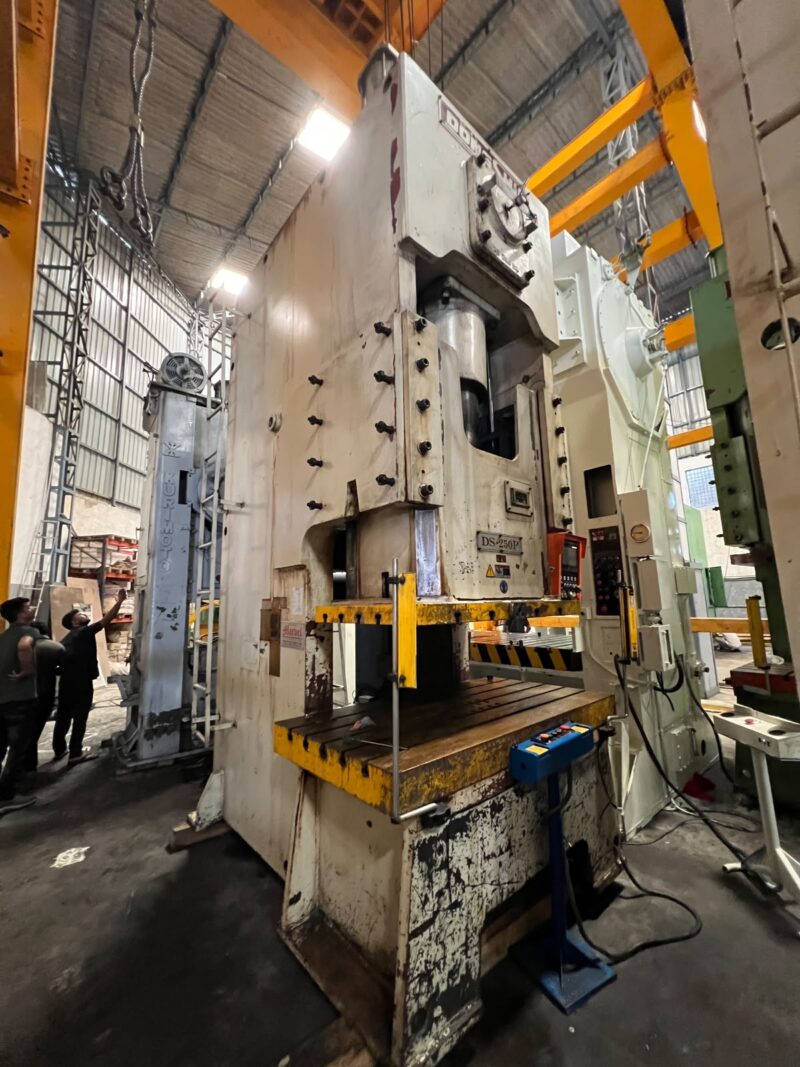

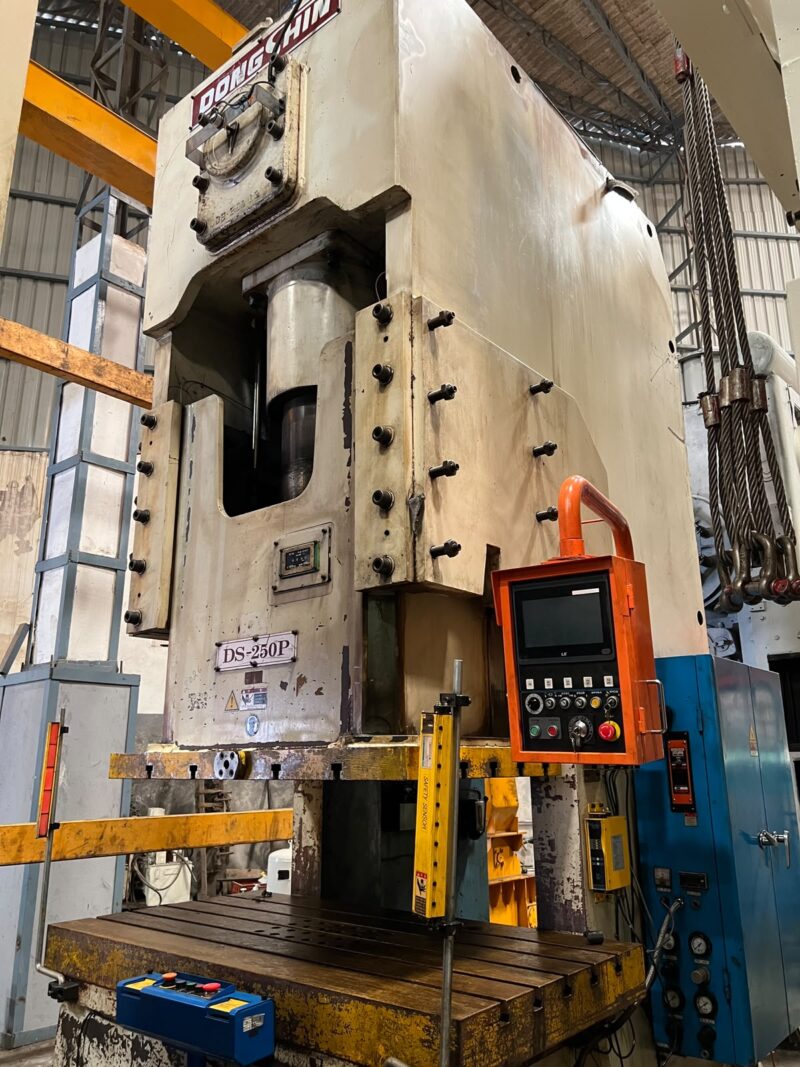

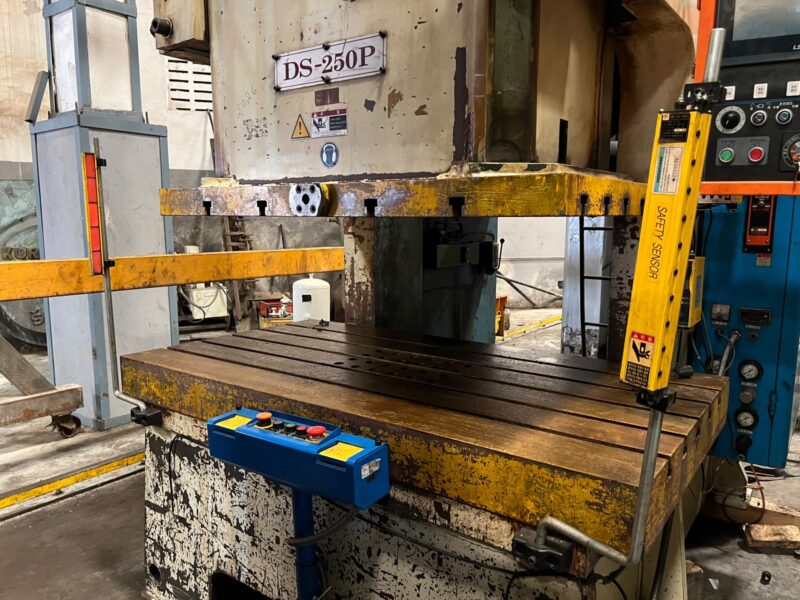

C FRAME SINGLE CRANK PRESS

DONGSHIN KOREA
MODEL : DS-250P

SKU # 2026

Brief Specifications/ Details

• Cap : 250Tons
• Stroke : 250mm
• Die Height : 600mm
• Adjustment : 130mm
• SPM : 45
• Slide : 1400 x 800mm
• Bolster : 1800 x 950mm

Accessories

• With Die Cushion
• Pad Area – 420 x 270mm

 Other Details (Approx)

• Clutch : Dry
• Main Motor : 15KW
• Power Required : 380V/25KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 9’-8”, L-R: 7’-0”, HT: 15’-9”
• Machine Weight :  Tons
