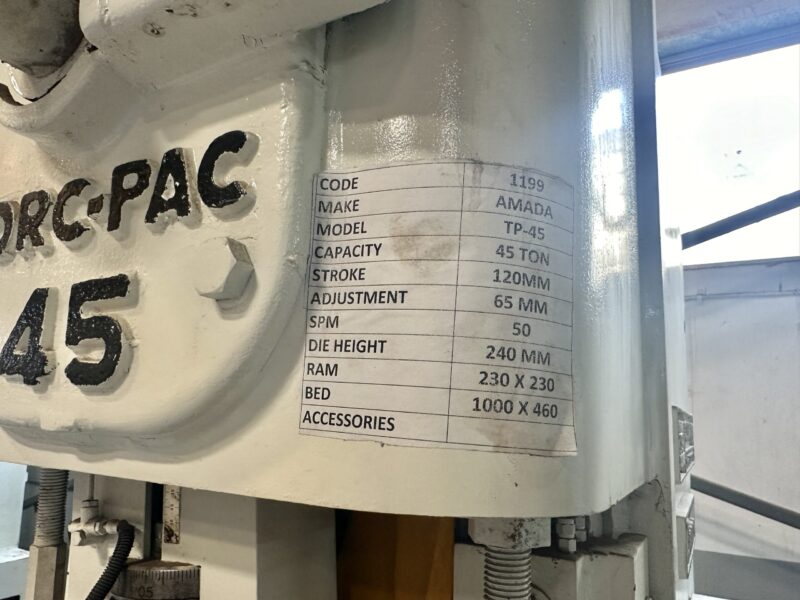

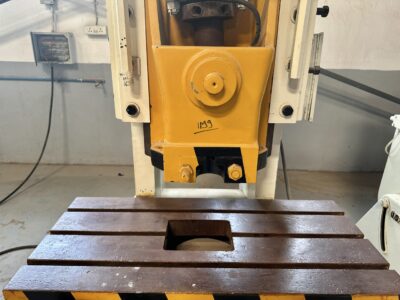

AMADA JAPAN MODEL: TP-45A
‘C’ FRAME SINGLE CRANK PRESS
AMADA JAPAN
MODEL: TP-45A
SKU # 1199
Brief Specifications/ Details
- Cap : 45Tons
- Stroke : 120mm
- Die Height : 240mm
- Adjustment : 65mm
- SPM : 50
- Slide : 230 x 230mm
- Bolster : 1000 x 460mm
Accessories
With Die Cushion
Other Details (Approx)
- Clutch : Dry
- Main Motor : KW
- Power Required : 220V/6KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 4’-7”, L-R: 3’-7”, HT: 9’-5”
- Machine Weight : Tons
