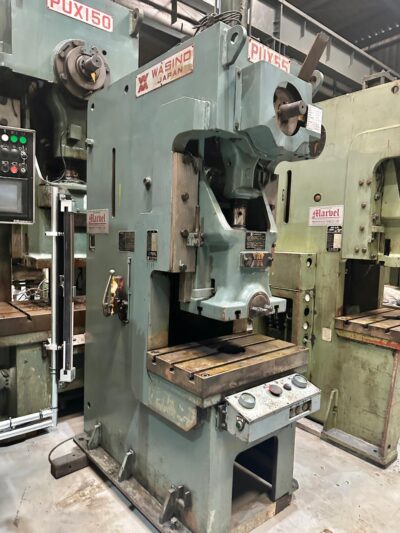

WASINO JAPAN MODEL : PUX-55L
C FRAME SINGLE CRANK PRESS
WASINO JAPAN
MODEL : PUX-55L
SKU # 1714
Brief Specifications/ Details
- Cap : 55Tons
- Stroke : 120mm
- Die Height : 250mm
- Adjustment : 70mm
- SPM : 60
- Slide : 480x 350mm
- Bolster : 800x 450mm
Accessories
Other Details (Approx)
- Clutch : Dry
- Main Motor : 5.5KW
- Power Required : 220V/6KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 5’-4”, L-R: 4’-0”, HT: 9’-0”
- Machine Weight : 4.5 Tons
