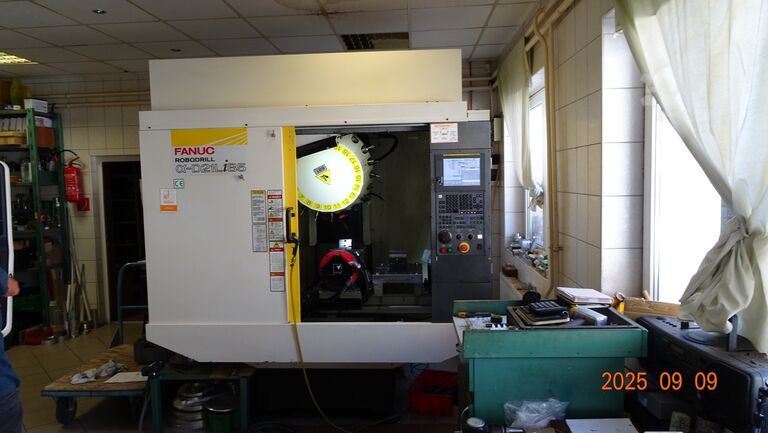

FANUC Robodrill Model B5

HM 0561

Controller FANUC 31i Model B5
Table size 850 x 410 mm
Max. table load 300 kgs
X travel 700 mm
Y travel 400 mm
Z travel 330 mm
A axis
C axis 0 – 360 degree
Distance between table surface and spindle end 250 – 580 mm
Max. tool length 250 mm
Max. tool diameter D80 mm
Max spindle speed 24000 rpm
Rapid speed X/Y/Z 54 m/min
Feedrate 30 m/min
ATC magazin 21-fold
Tool holder type BBT30
Weight 2300 kgs

Accessories, featureies
– 4/5 axis with round table
– RENISHAW TS27 tool presetter system
– RENISHAW OMP60 zero point setting system
– Chip conveyor
– Coolant unit
Dksb Ijxtwxhjfu Ir Tel
– Manuals

The machine has been used little and the condition is like new. Ready to buy.
