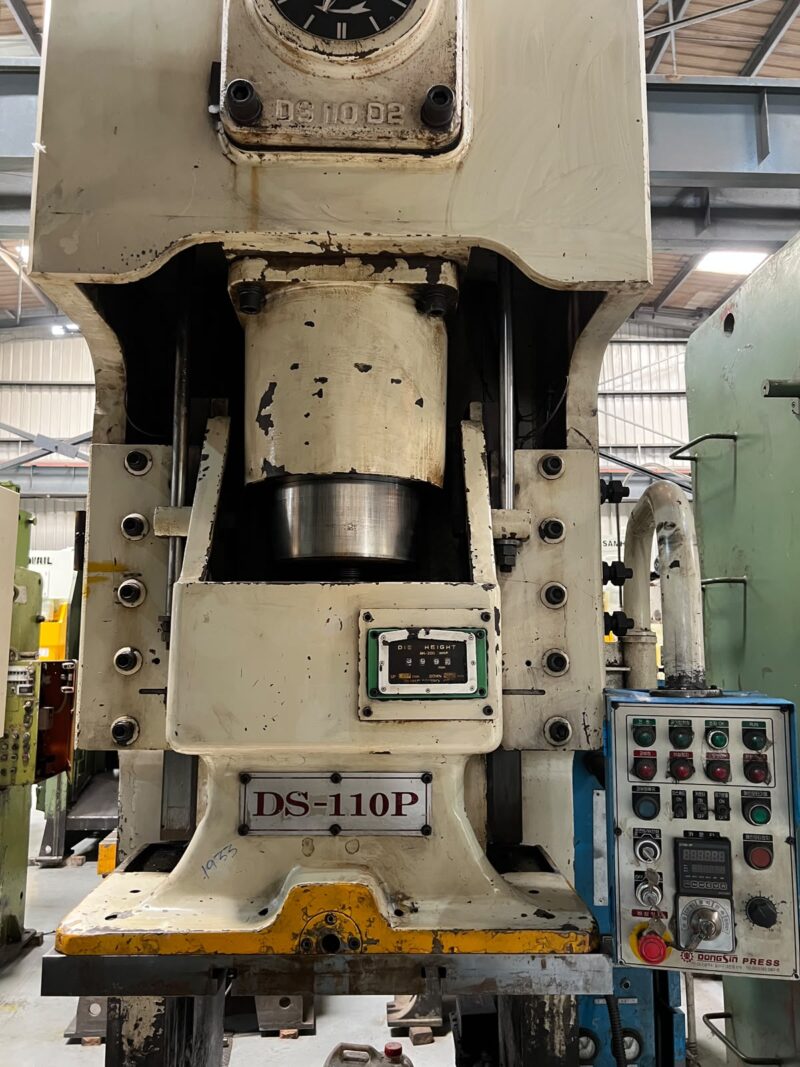

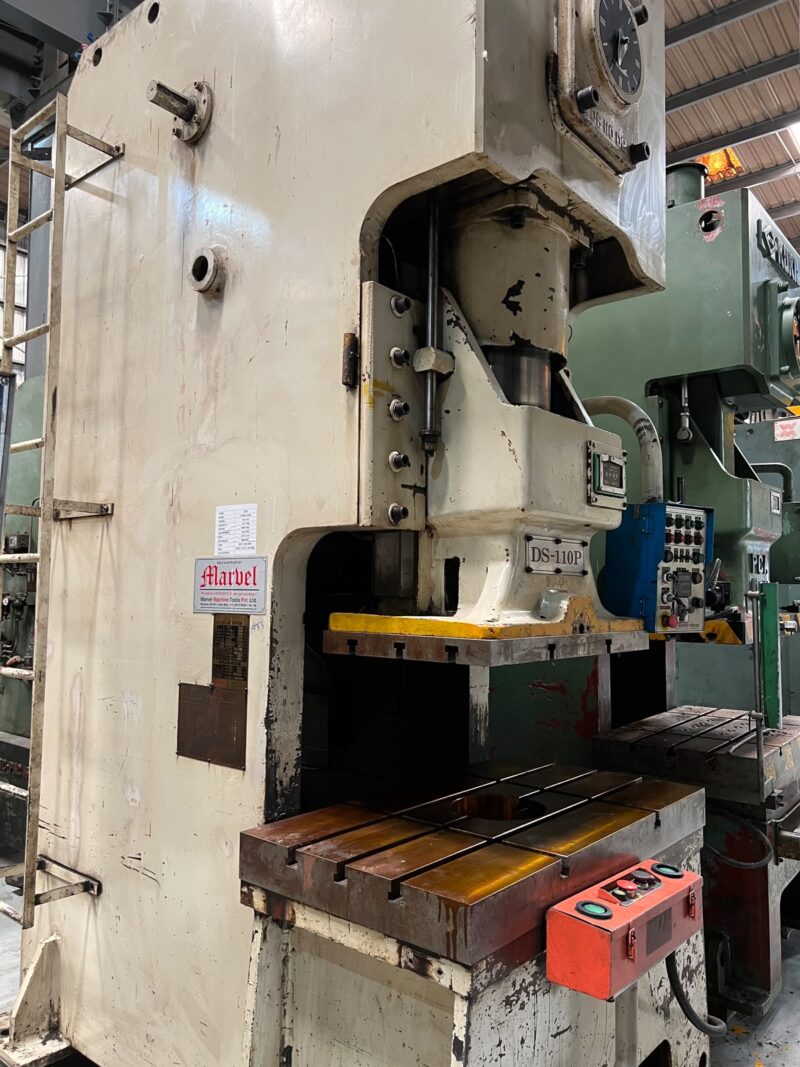

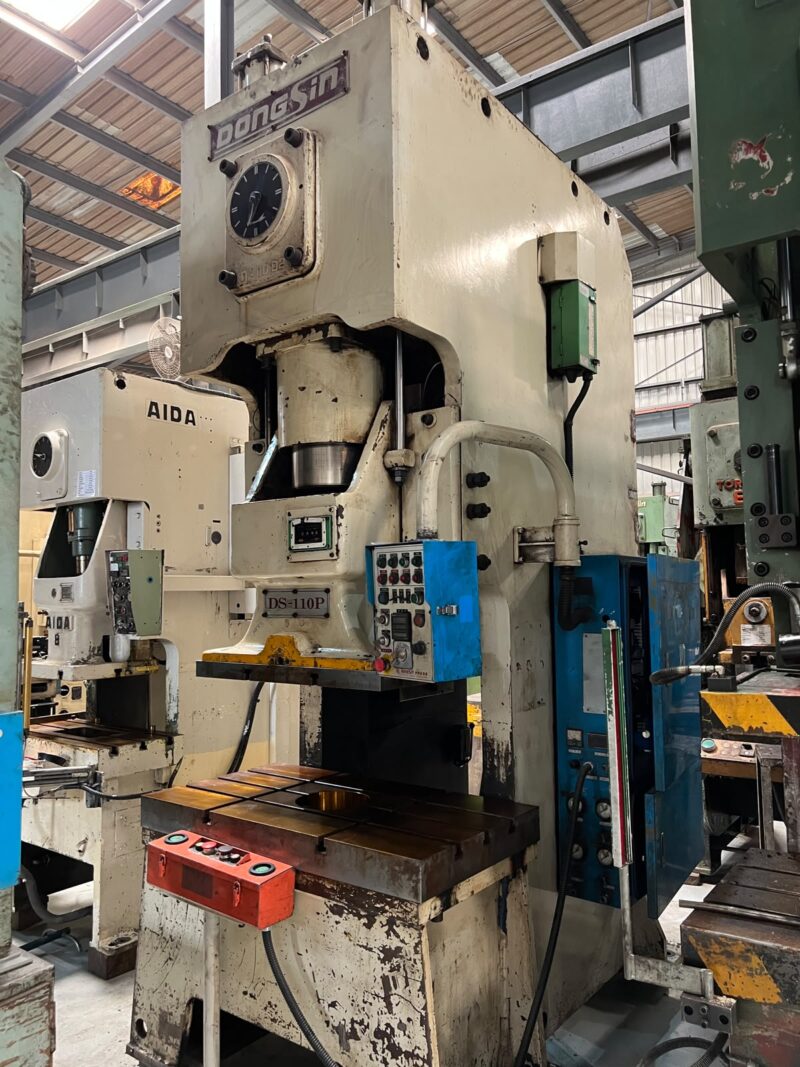

DONGSHIN KOREA MODEL : DS-110P
C FRAME SINGLE CRANK PRESS
DONGSHIN KOREA
MODEL : DS-110P

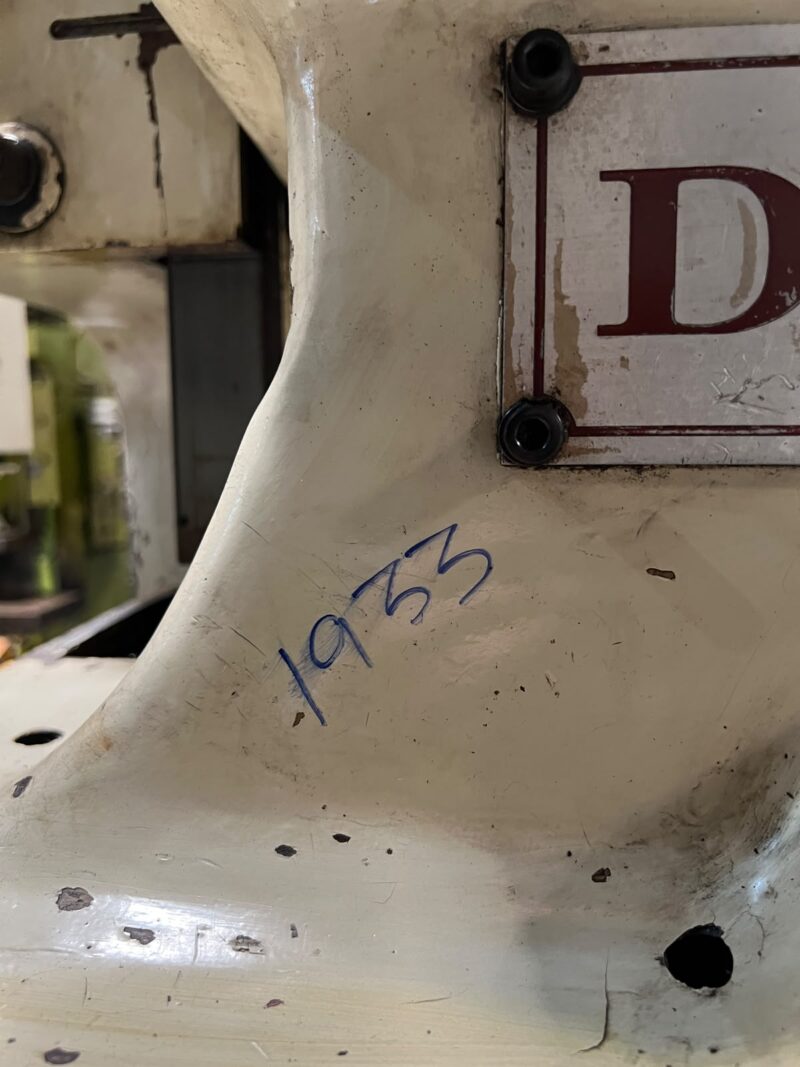

SKU # 1933
Brief Specifications/ Details
- Cap : 110 tons
- Stroke : 160mm
- Die height : 400mm
- Adjustment : 100
- SPM : 30~50
- Slide : 820 x 500mm

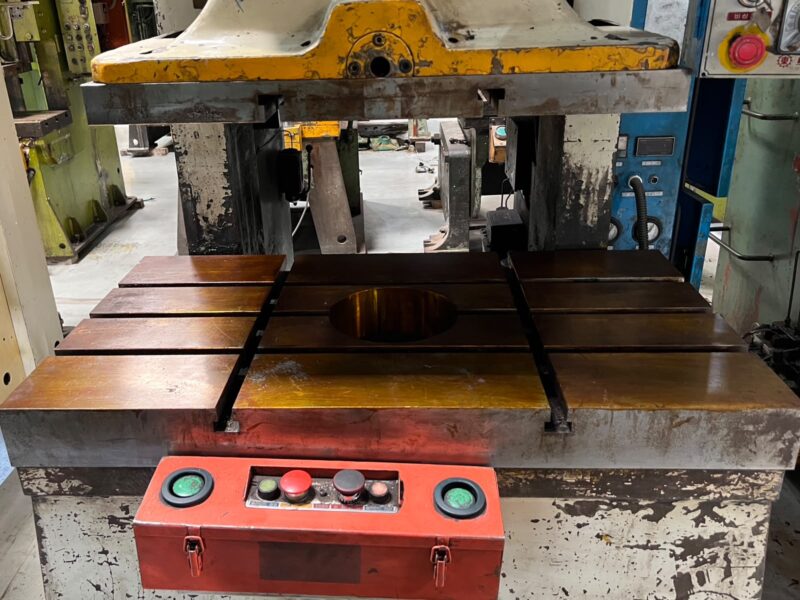

- Bolster : 1200 x 660mm
Other Details (Approx)
- Clutch : Dry
- Main Motor : KW
- Power Required : 380V/13KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 7’-2”, L-R: 5’-5”, HT: 11’-7”
- Machine Weight : AP-10 Tons
