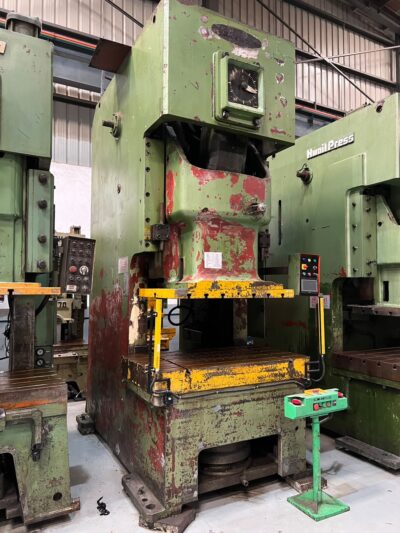

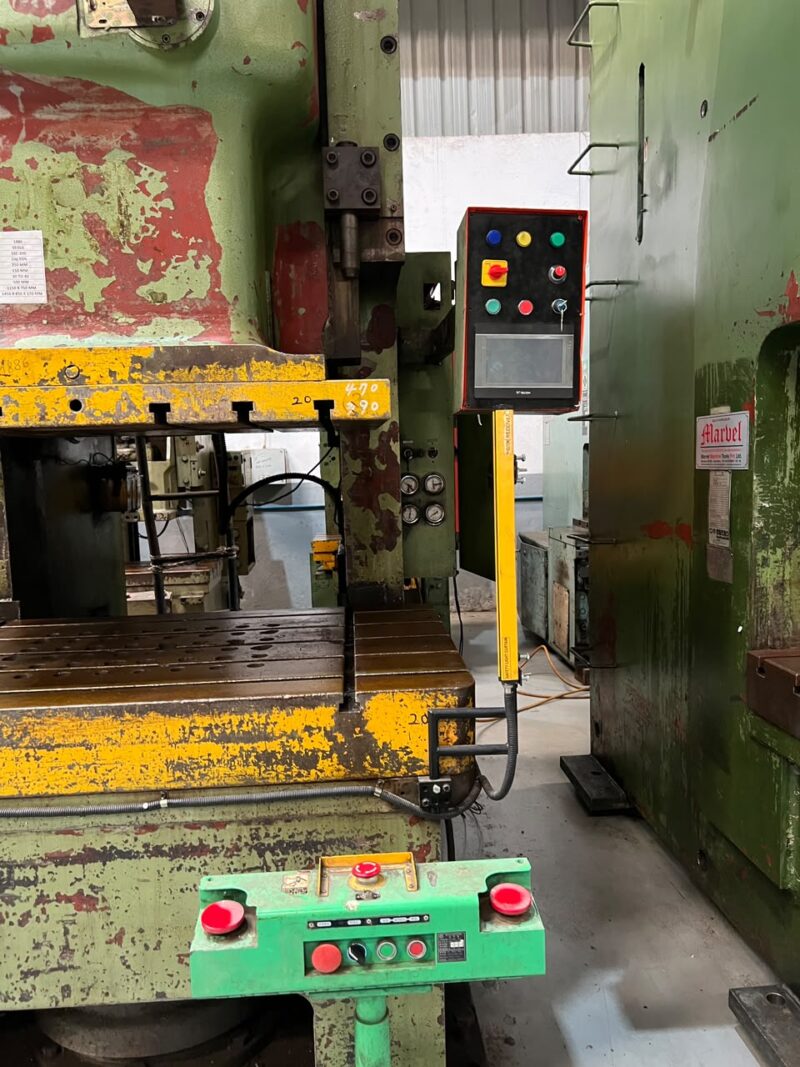

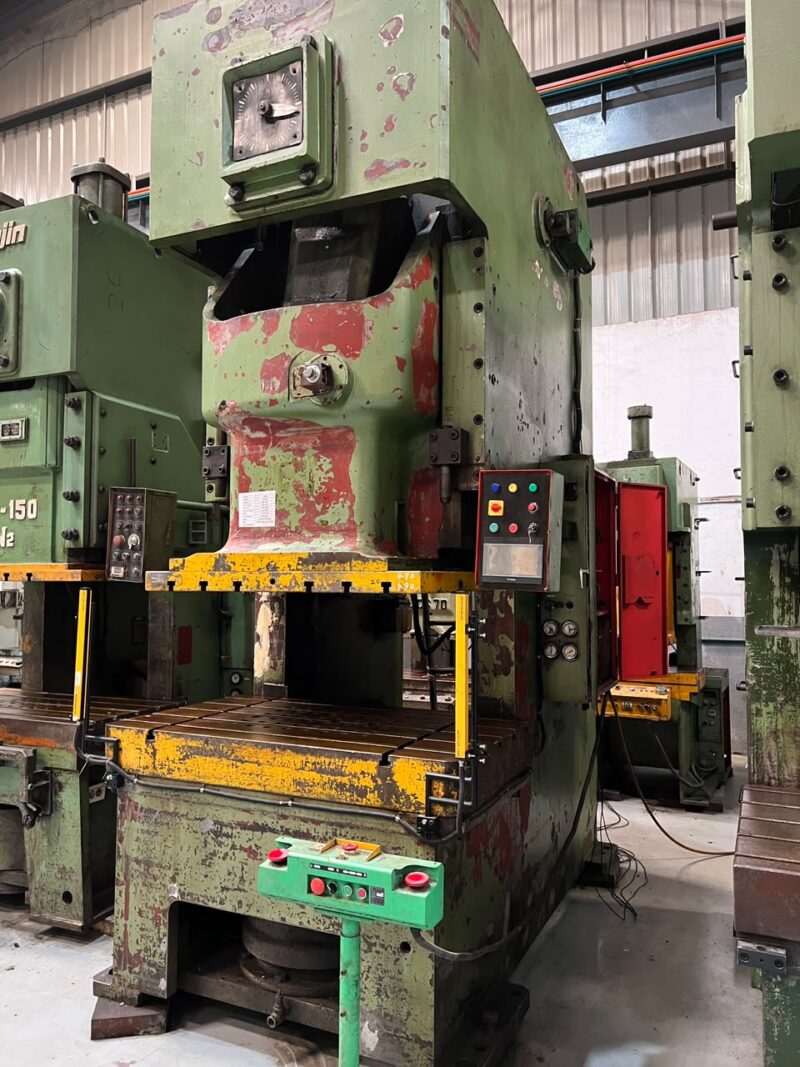

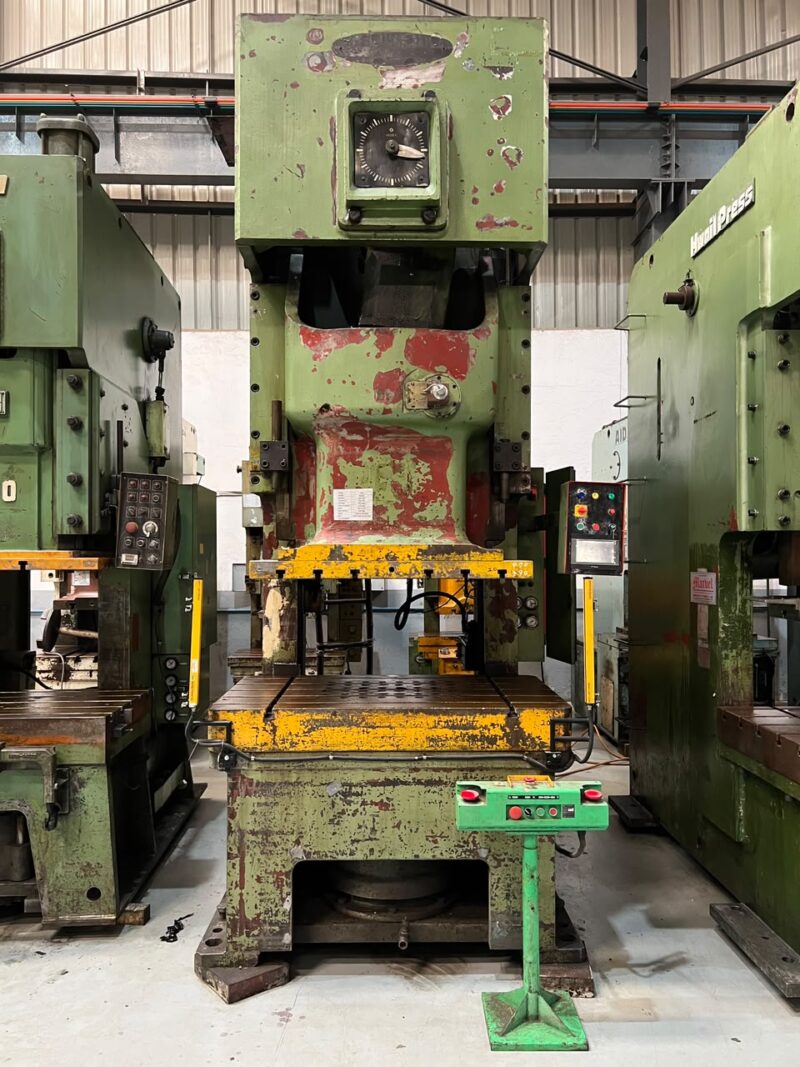

SEOUL – KOREA MODEL : SSC – 200

C FRAME SINGLE CRANK PRESS

SEOUL – KOREA
MODEL : SSC – 200

SKU # 1886

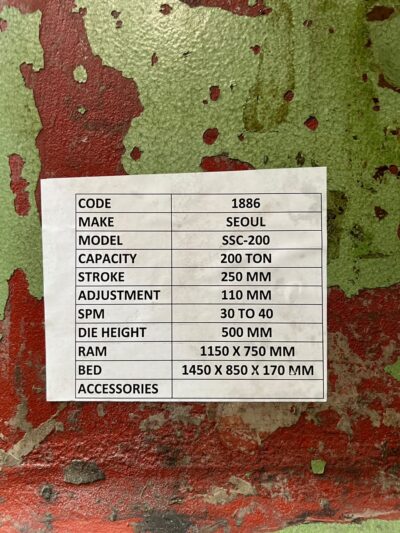

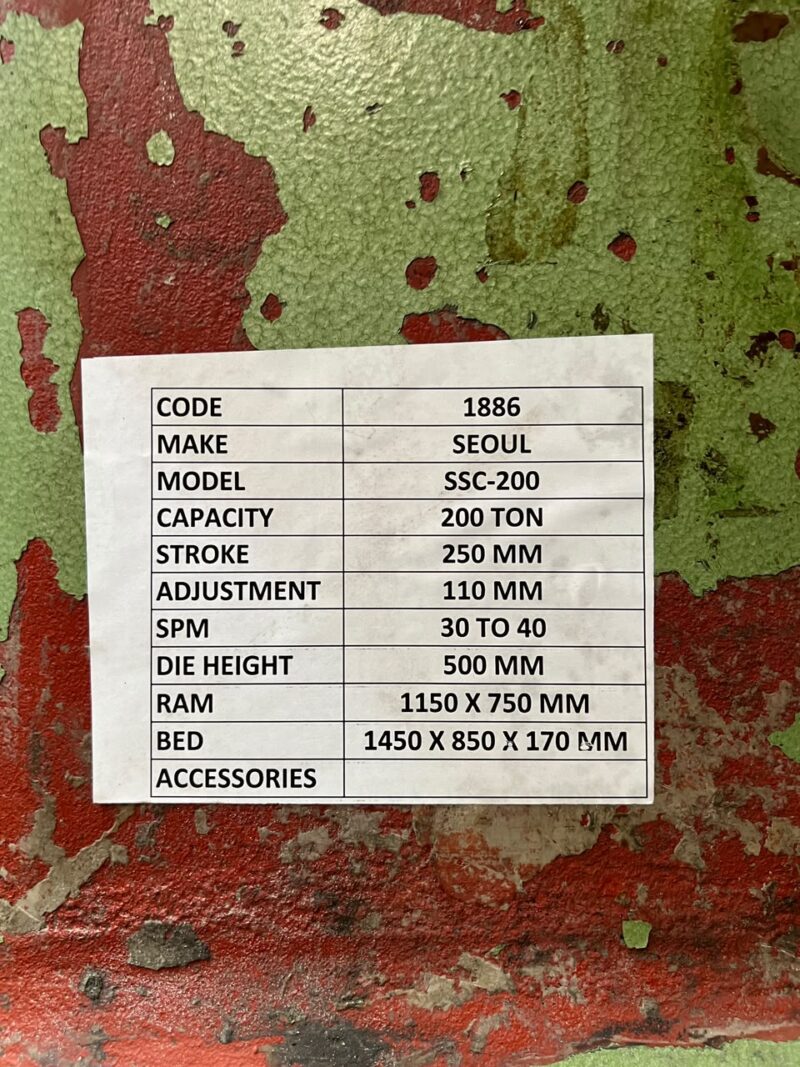

Brief Specifications/ Details

  • Cap : 200Tons
  • Stroke : 250mm
  • Die Height : 500mm
  • Adjustment : 110
  • SPM : 30~40

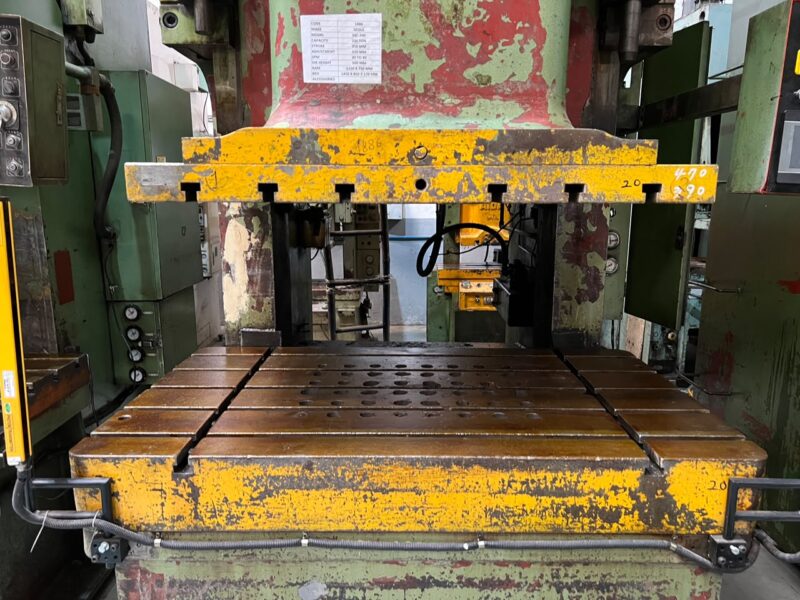

  • Slide : 1150 x 750
  • Bolster : 1450 x 850

Accessories

  • With Die Cushion
  • Pad Area – 560 x 400mm



 Other Details (Approx)

  • Clutch : Dry
  • Main Motor : 22 KW
  • Power Required : 380V/27KVA Phase : 3
  • Air Required : 5.5/sqcm
  • Machine Size : F-B: 9’-2”, L-R: 6’-0”, HT: 14’-0”
  • Machine Weight :  Ap – 22 Tons
SKU: SKU # 1886 Categories: , ,
