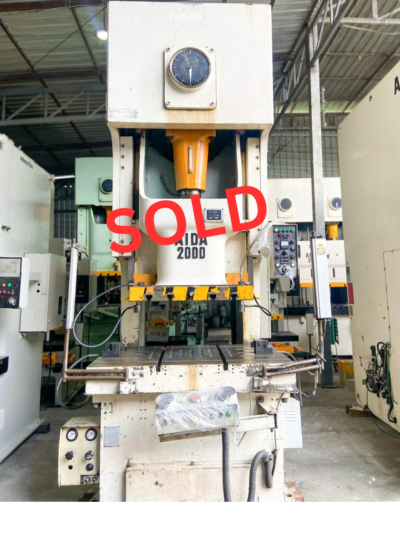

AIDA JAPAN MODEL : NC1-2000-(2)
C FRAME SINGLE CRANK PRESS
AIDA JAPAN
MODEL : NC1-2000-(2)
SKU # 1633
Brief Specifications/ Details
- Cap : 200Tons
- Stroke : 250mm
- Die Height : 450mm
- Adjustment : 110mm
- SPM : 25~45
- Slide : 880 x 650mm
- Bolster : 1390 x 840mm
Accessories
With Die Cushion & Light Curtains
Other Details (Approx)
- Clutch : Wet
- Main Motor : 19KW
- Power Required : 380V/20KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 9’-5”, L-R: 6’-0”, HT: 12’-6”
- Machine Weight : 19.5Tons
