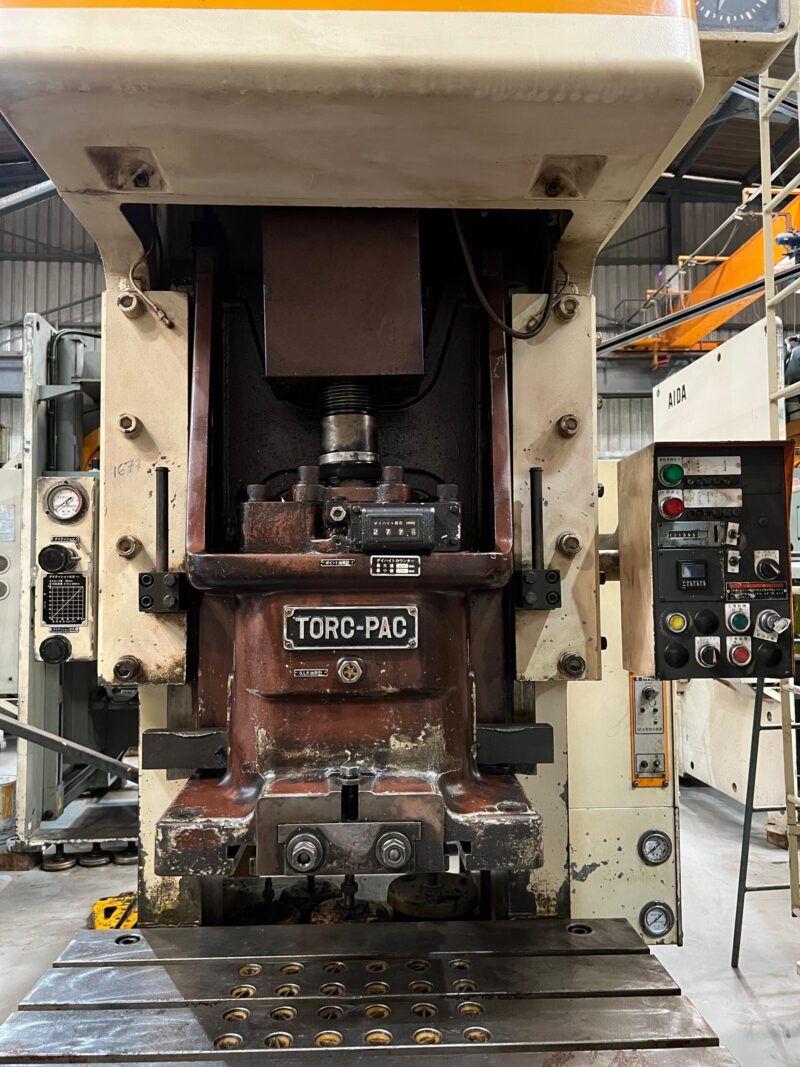

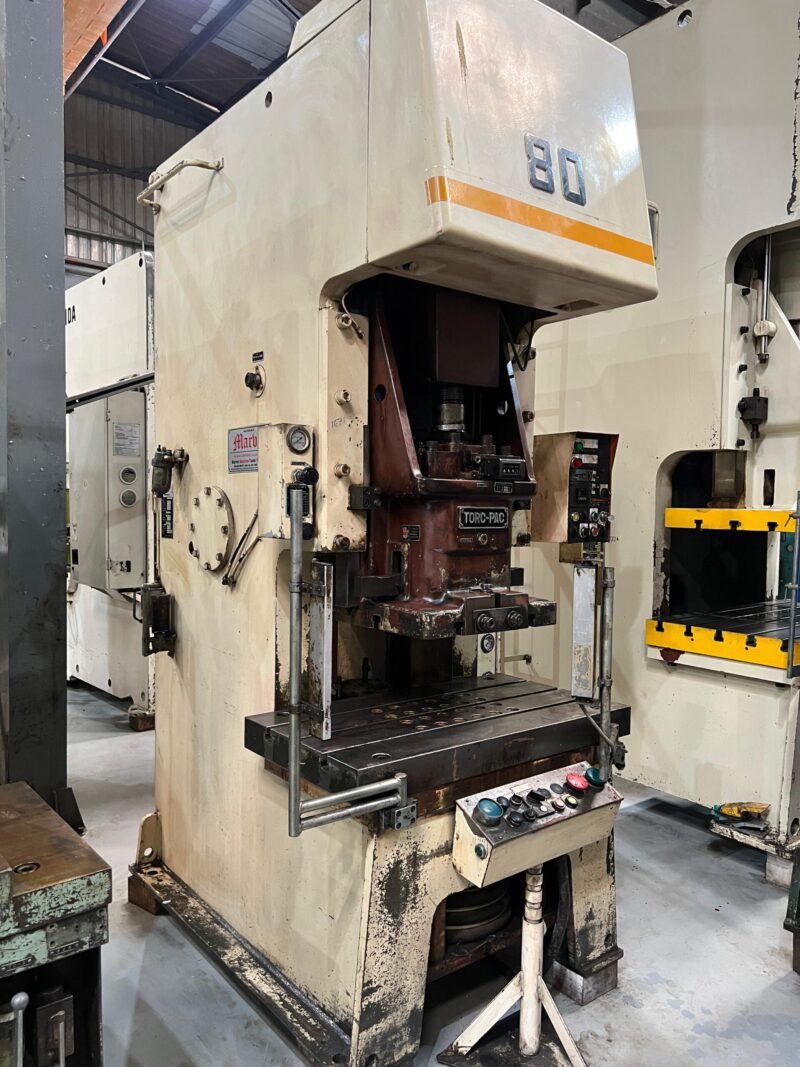

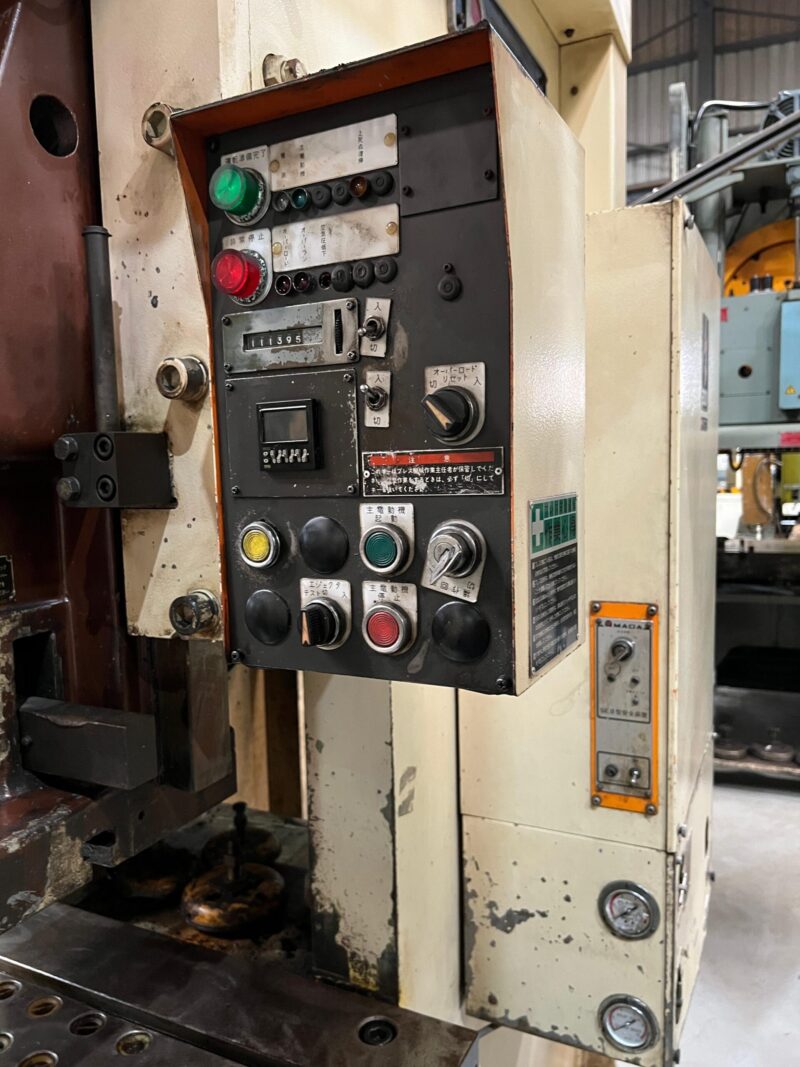

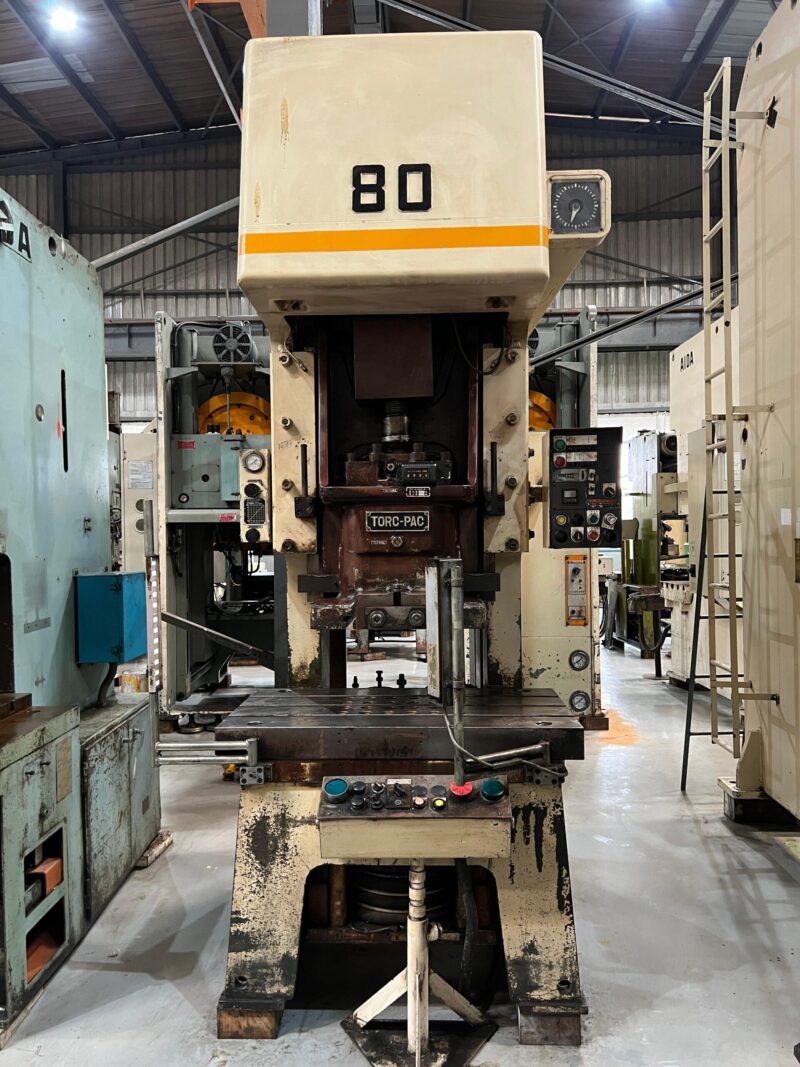

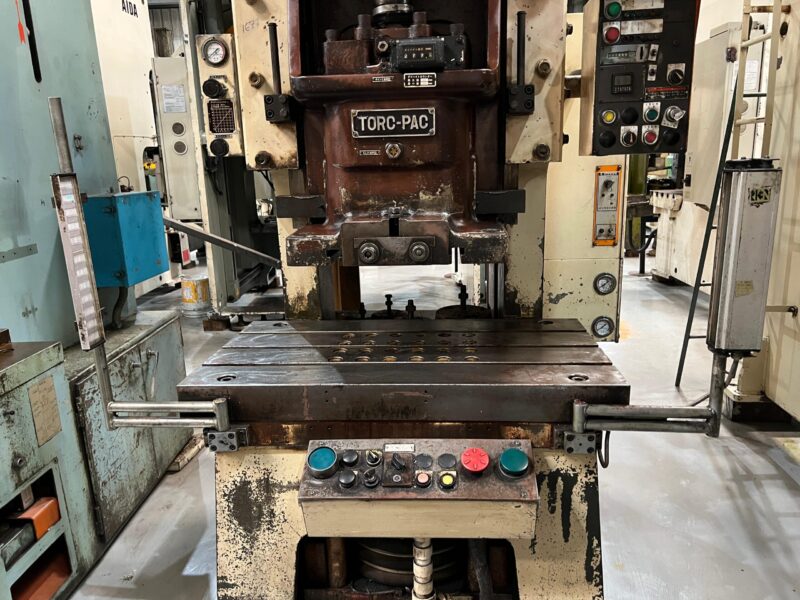

AMADA JAPAN MODEL : TP-80C-X2
C FRAME SINGLE CRANK PRESS
AMADA JAPAN
MODEL : TP-80C-X2
SKU # 1677
Brief Specifications/ Details
- Cap : 80Tons
- Stroke : 130mm
- Die Height : 320mm
- Adjustment : 50mm – Electrical
- SPM : 70
- Slide : 560 x 450mm
- Bolster : 1100 x 600mm
Accessories
With Die Cushion
Other Details (Approx)
- Clutch : Wet
- Main Motor : KW
- Power Required : 220V/10KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 6’-4”, L-R: 5’-4”, HT: 10’-0”
- Machine Weight : Tons
