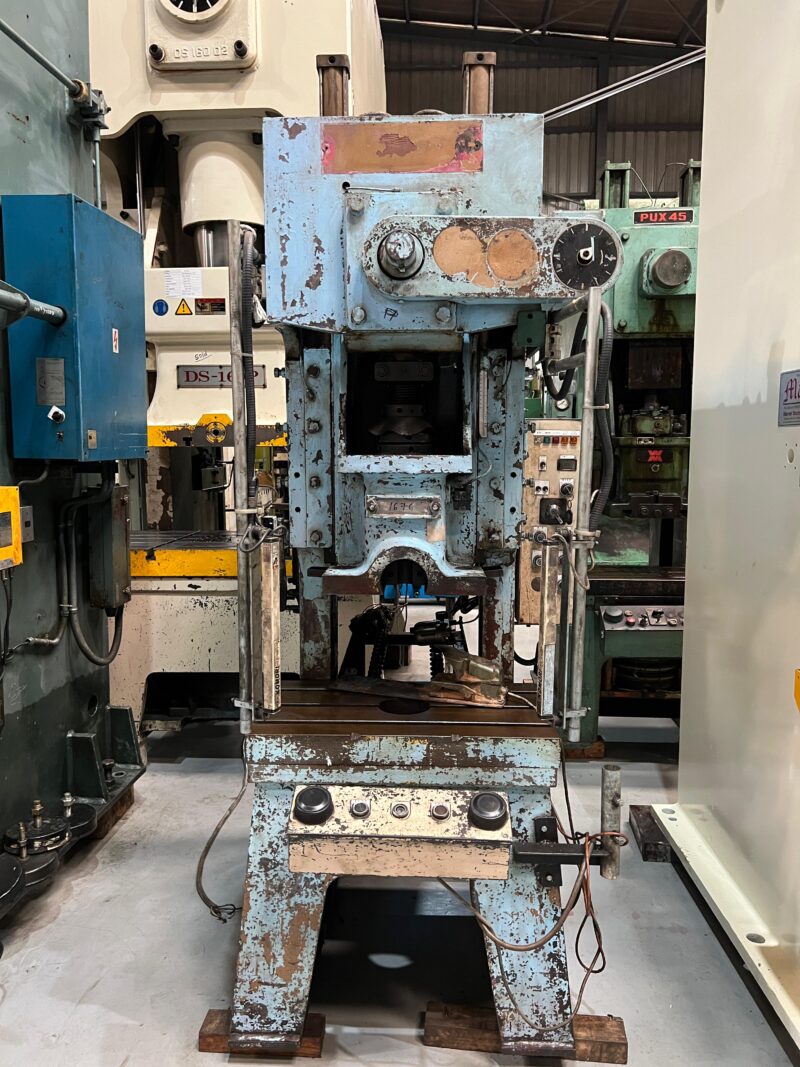

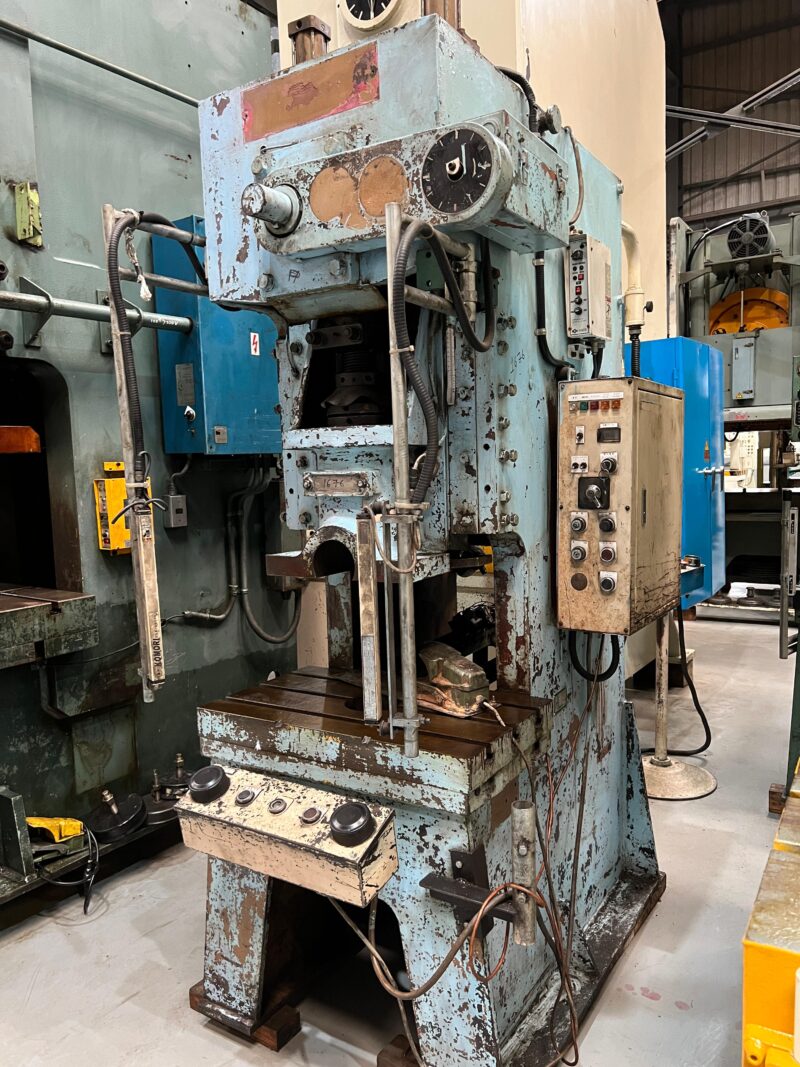

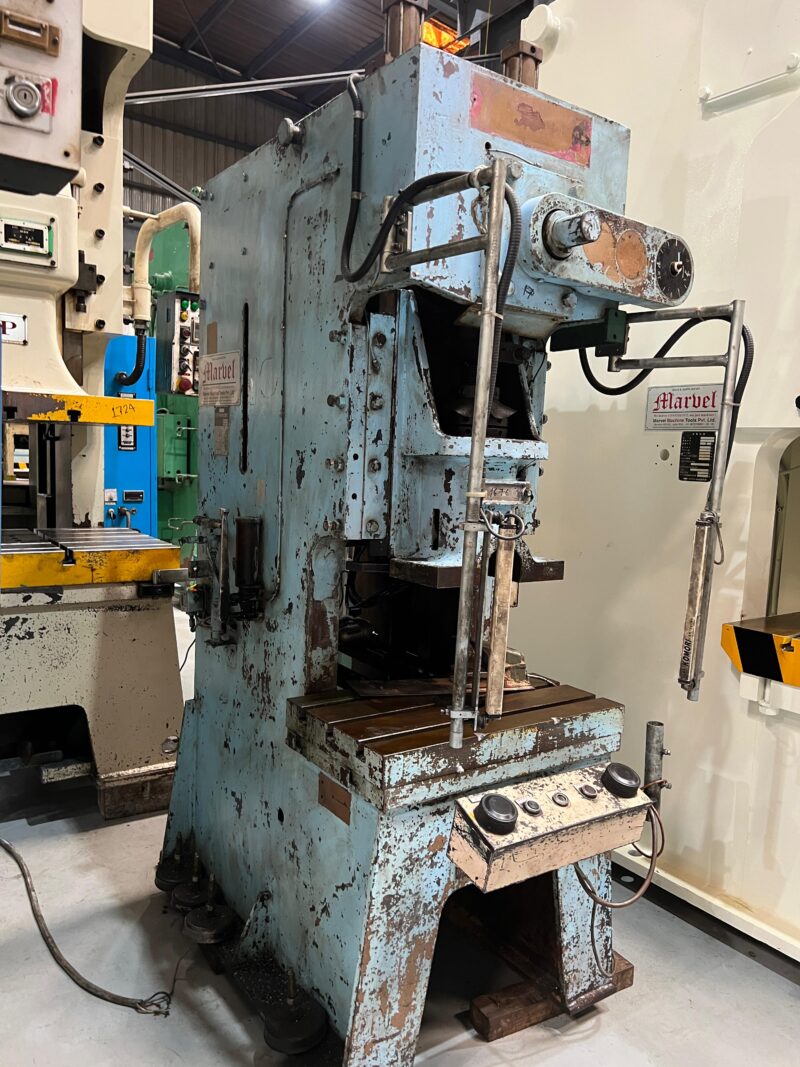

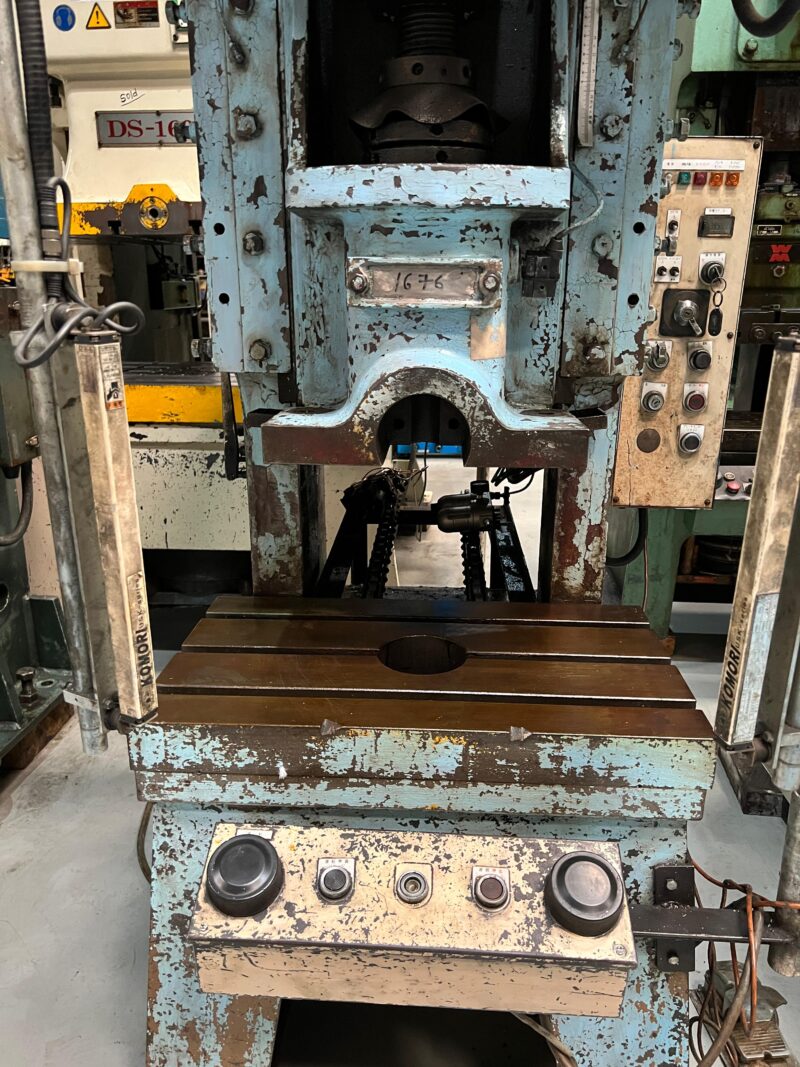

WASINO JAPAN MODEL : PUX – 40
C FRAME SINGLE CRANK PRESS
WASINO JAPAN
MODEL : PUX – 40
SKU # 1671
Brief Specifications/ Details
- Cap : 40Tons
- Stroke : 100mm
- Die Height : 250mm
- Adjustment : 60mm
- SPM : 80
- Slide : 385x 280mm
- Bolster : 720 x 420mm
Accessories
Other Details (Approx)
- Clutch : Dry
- Main Motor : 3.5KW
- Power Required : 220V/4KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 5’-2”, L-R: 3’-2”, HT: 11’-7”
- Machine Weight : 4Tons
