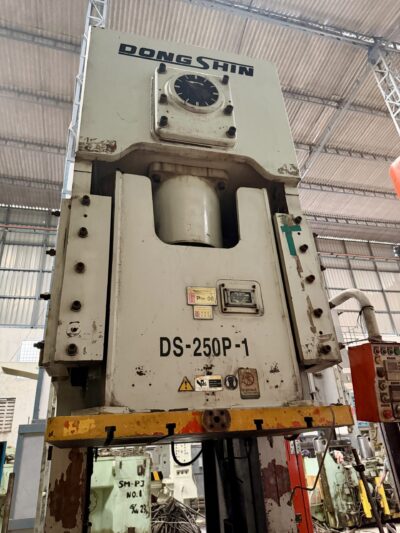

DONGSHIN KOREA MODEL : DS-250P-1
C FRAME SINGLE CRANK PRESS
DONGSHIN KOREA
MODEL : DS-250P-1
SKU # 1833
Brief Specifications/ Details
- Cap : 250Tons
- Stroke : 250mm
- Die Height : 600mm
- Adjustment : 130mm-Electrical
- SPM : 35
- Slide : 1400 x 800mm

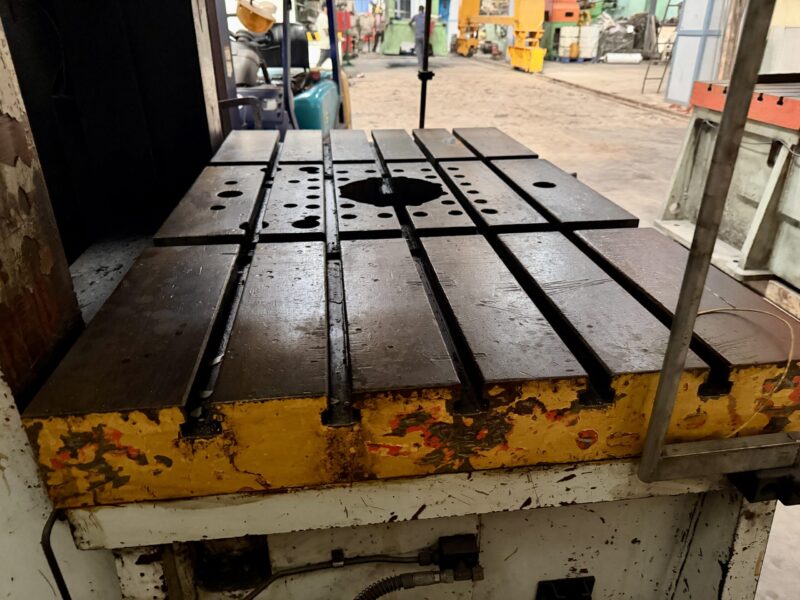

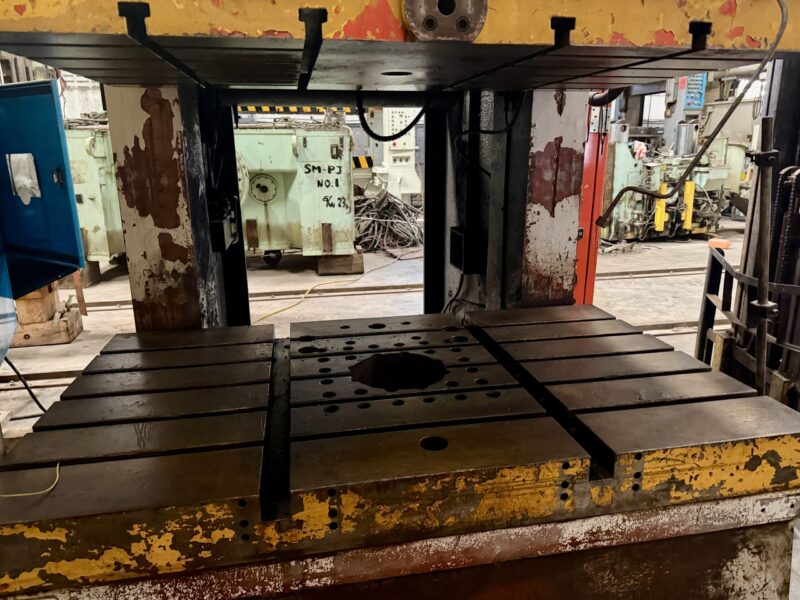

- Bolster : 1600 x 950mm
Accessories
- With Die Cushion
- Pad Area – 420 x 420mm
Other Details (Approx)
- Clutch : Dry
- Main Motor : 18.5KW
- Power Required : 380V/30KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 6’-7”, L-R: 7’-0”, HT: 15’-7”
- Machine Weight : 33Tons
