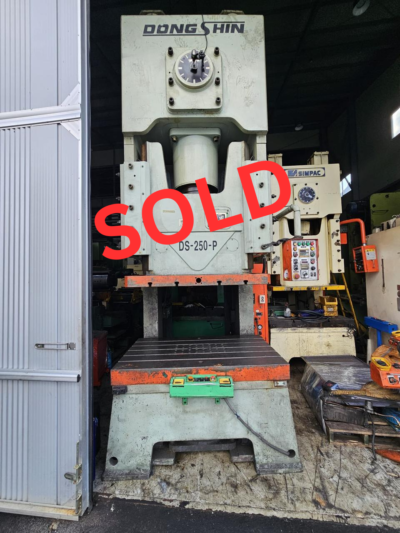

DONGSHIN KOREA MODEL : DS-250P
C FRAME SINGLE CRANK PRESS
DONGSHIN KOREA
MODEL : DS-250P
SKU # 1838
Brief Specifications/ Details
- Cap : 250Tons
- Stroke : 250mm
- Die Height : 600mm
- Adjustment : 130mm
- SPM : 40
- Slide : 1400 x 800mm
- Bolster : 1600 x 950mm
Accessories
- With Die Cushion
- Pad Area – 550 x 250
Other Details (Approx)
- Clutch : Dry
- Main Motor : 18.5 KW
- Power Required : 380V/30KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 7’-0”, L-R: 6’-7”, HT: 15’-8”
- Machine Weight : 30 Tons
