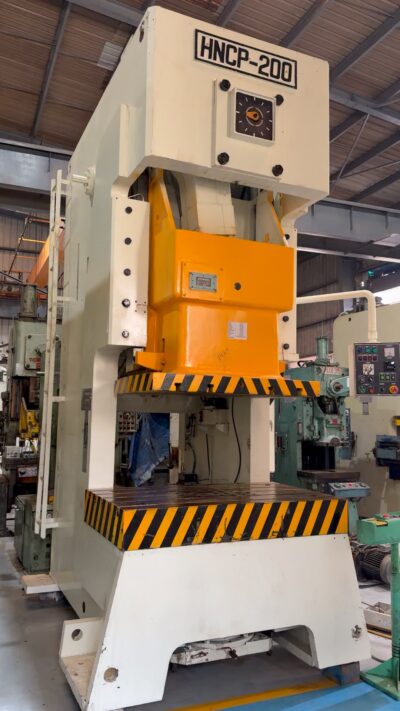

HANOUL KOREA MODEL : HNCP-200
C FRAME SINGLE CRANK PRESS
HANOUL KOREA
MODEL : HNCP-200
SKU # 1825
Brief Specifications/ Details
- Cap : 200Tons
- Stroke : 250mm
- Die Height : 500mm
- Adjustment : 110mm
- SPM : 30~45
- Slide : 1100 x 750mm
- Bolster : 1400 x 850mm
Accessories
- With Die Cushion
- Pad Area – 450 x 240
Other Details (Approx)
- Clutch : Dry
- Main Motor : 22KW
- Power Required : 380V/27KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 8’-0”, L-R: 6’-2”, HT: 13’-10”
- Machine Weight : AP-22Tons
