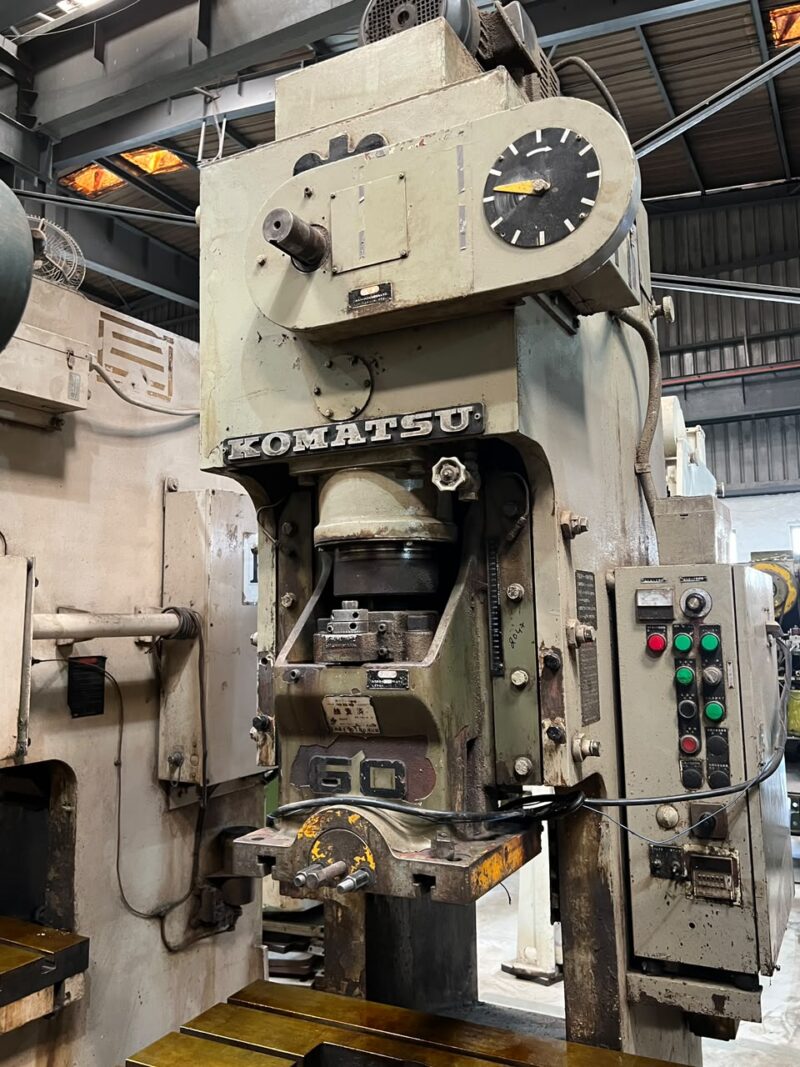

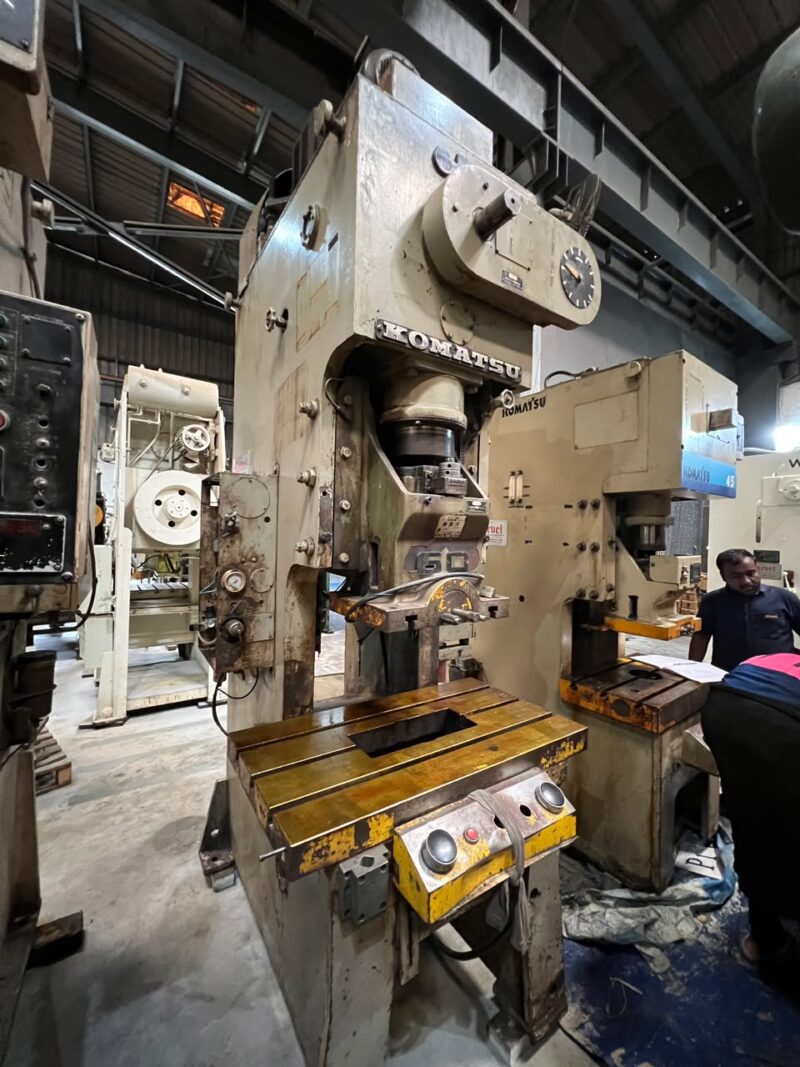

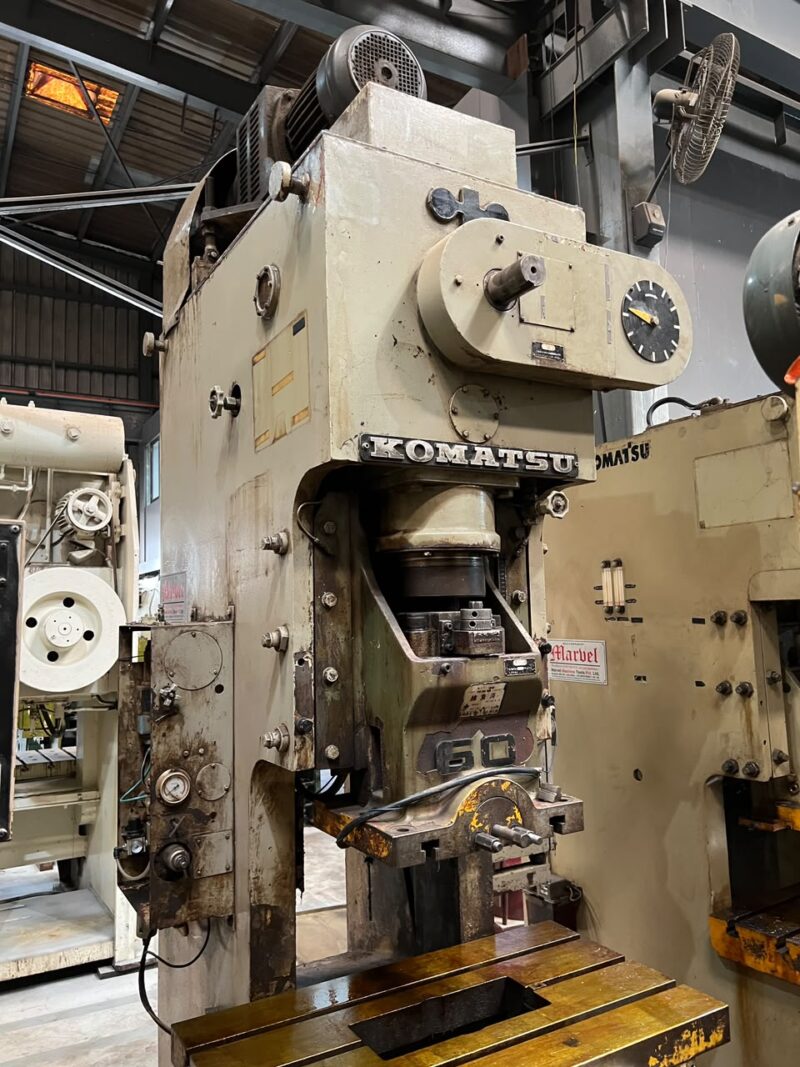

C FRAME SINGLE CRANK PRESS

KOMATSU JAPAN
MODEL : OBS-60K2

SKU # 2047

Brief Specifications/ Details

• Cap : 60Tons
• Stroke : 120mm
• Die Height : 300mm
• Adjustment : 70mm
• SPM : 30~70
• Slide : 450 x 350mm
• Bolster : 1000 x 550mm

 Other Details (Approx)

• Clutch : Wet
• Main Motor : 5.5 KW
• Power Required : 380V/6KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 5’-5”, L-R: 4’-2”, HT: 10’-5”
• Machine Weight :  Ap 5 Tons
