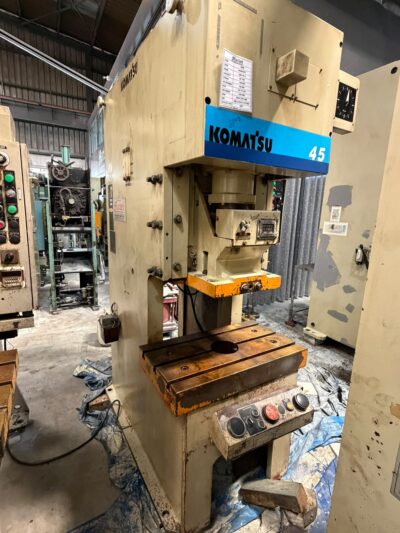

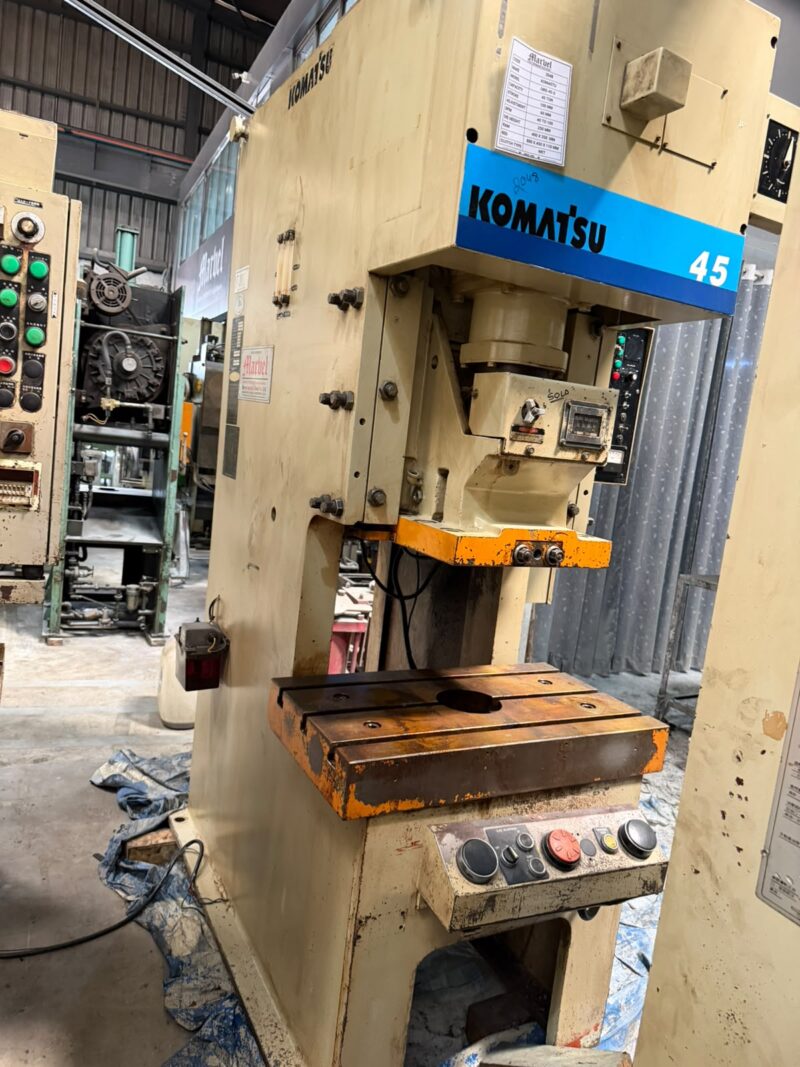

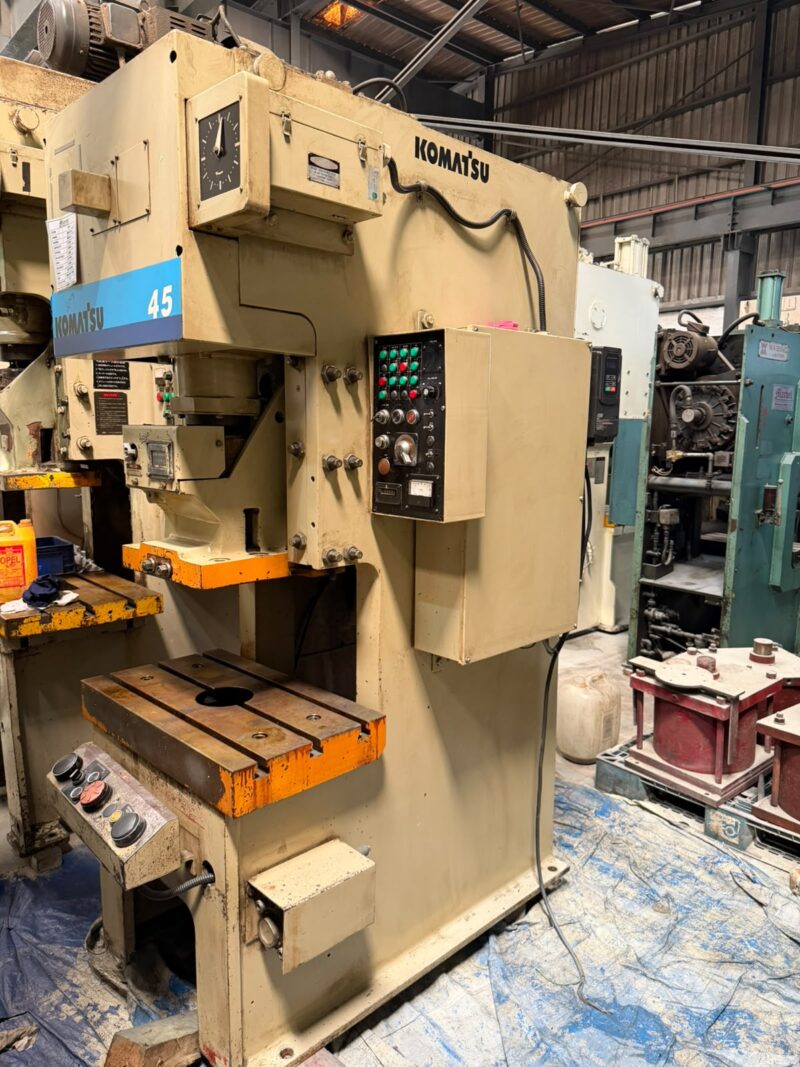

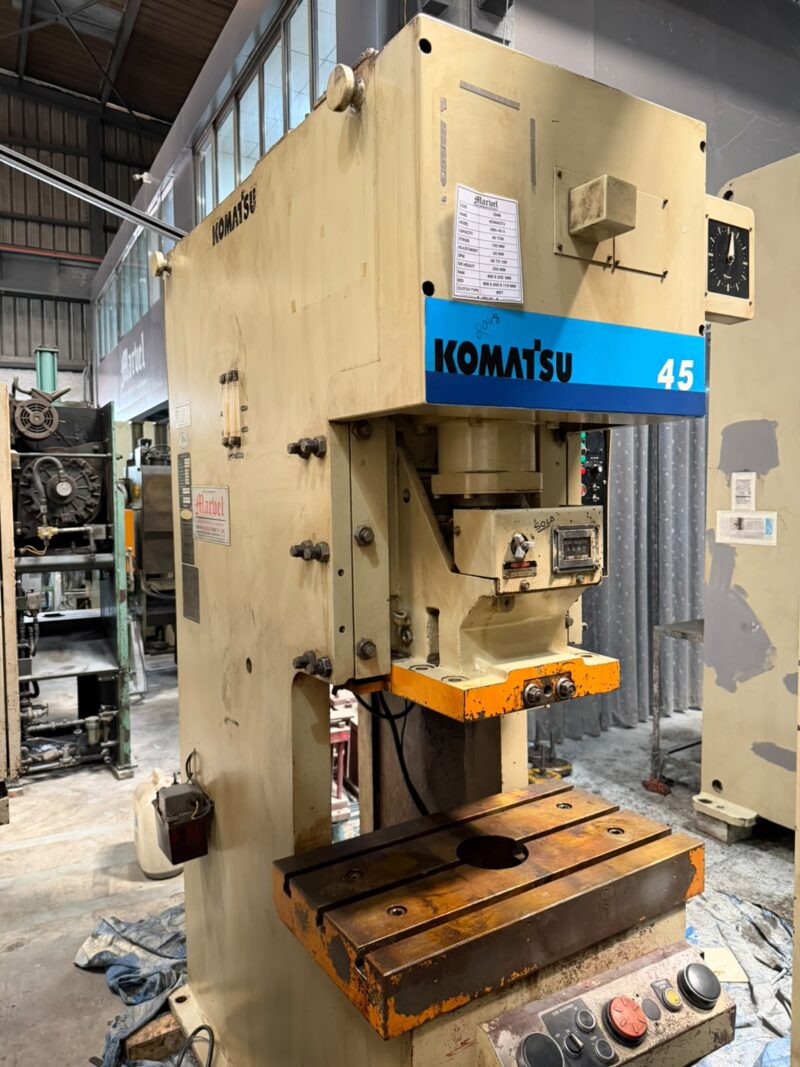

KOMATSU JAPAN MODEL : OBS-45
C FRAME SINGLE CRANK PRESS
KOMATSU JAPAN
MODEL : OBS-45
SKU # 2048
Brief Specifications/ Details
- Cap : 45Tons
- Stroke : 100mm
- Die Height : 250mm
- Adjustment : 60mm
- SPM : 40~100
- Slide : 400 x 350mm

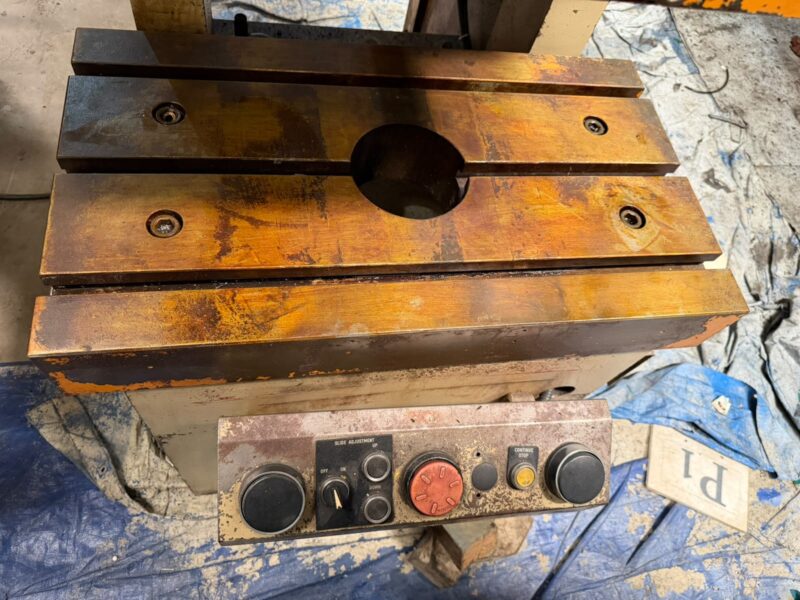

- Bolster : 800 x 450mm
Other Details (Approx)
- Clutch : Wet
- Main Motor : 3.5KW
- Power Required : 380V/4KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 5’-2”, L-R: 4’-0”, HT: 8’-2”
- Machine Weight : Ap – 3.5 Tons
