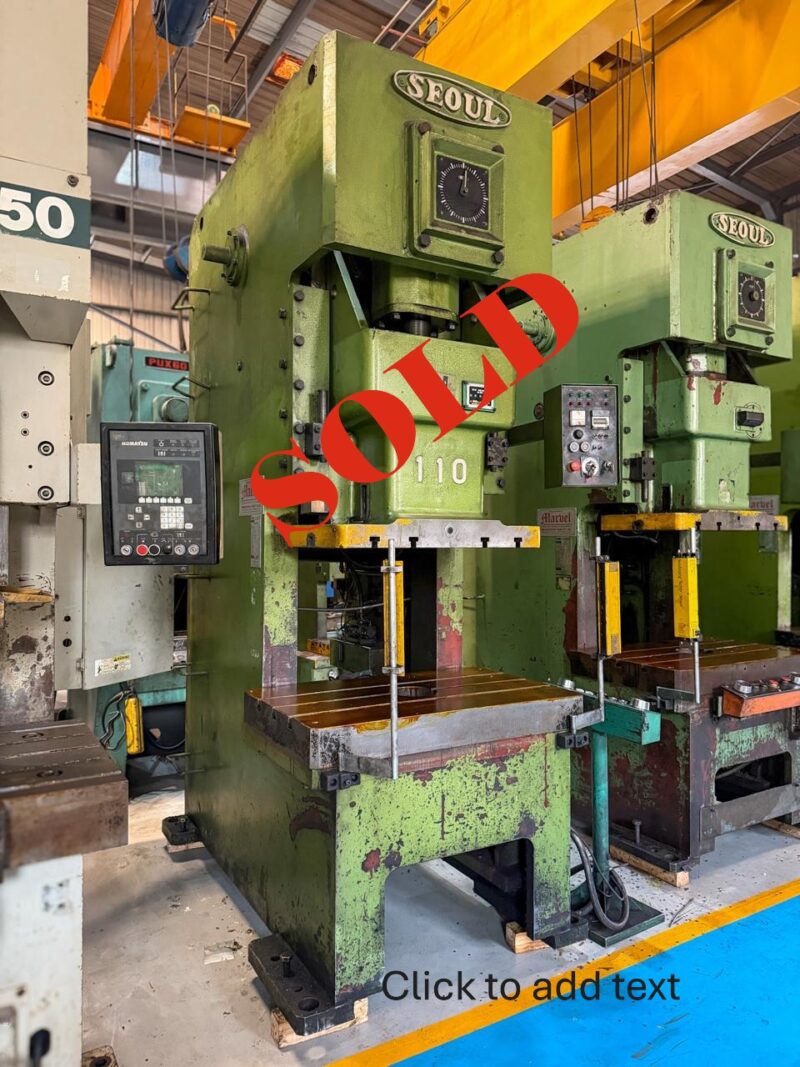

SEOUL – KOREA MODEL : SSC-110
C FRAME SINGLE CRANK PRESS
SEOUL – KOREA
MODEL : SSC-110
SKU # 1804
Brief Specifications/ Details
- Cap : 110Tons
- Stroke : 180mm
- Die Height : 450mm
- Adjustment : 90mm
- SPM : 35~50
- Slide : 850 x 500mm
- Bolster : 1100 x 680mm
Accessories
Other Details (Approx)
- Clutch : Dry
- Main Motor : 11 KW
- Power Required : 380V/13KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 7’-2”, L-R: 5’-0”, HT: 11’-0”
- Machine Weight : 11Tons
