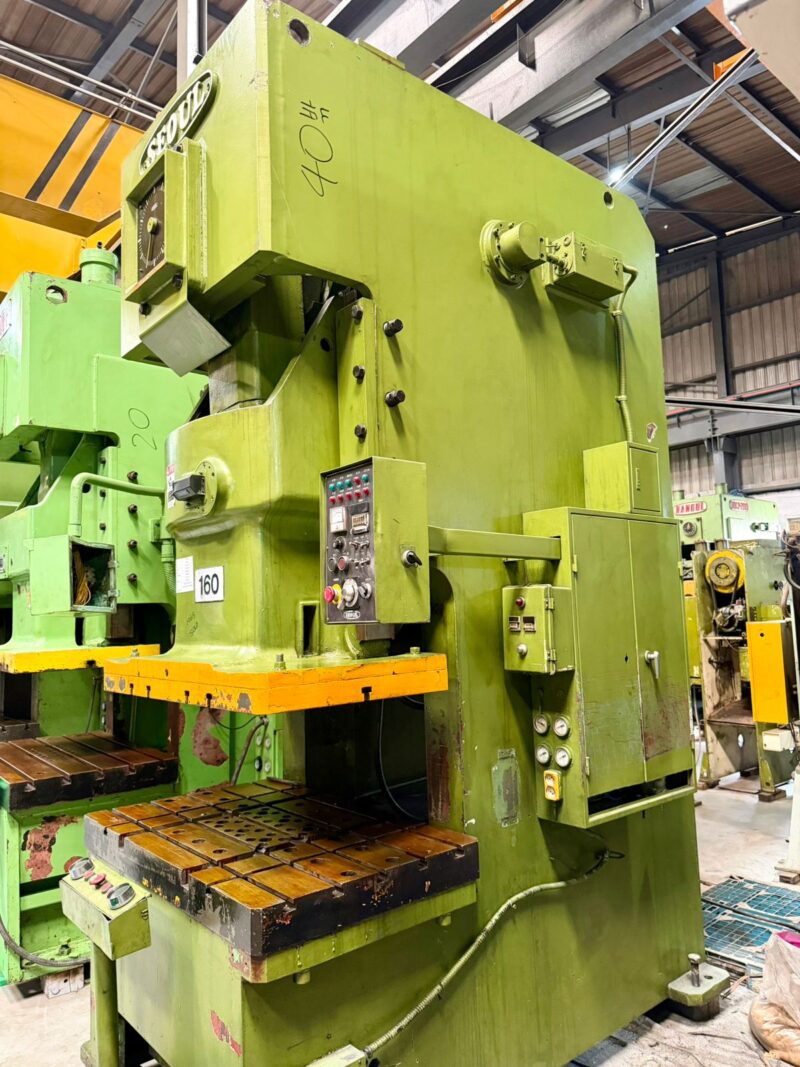

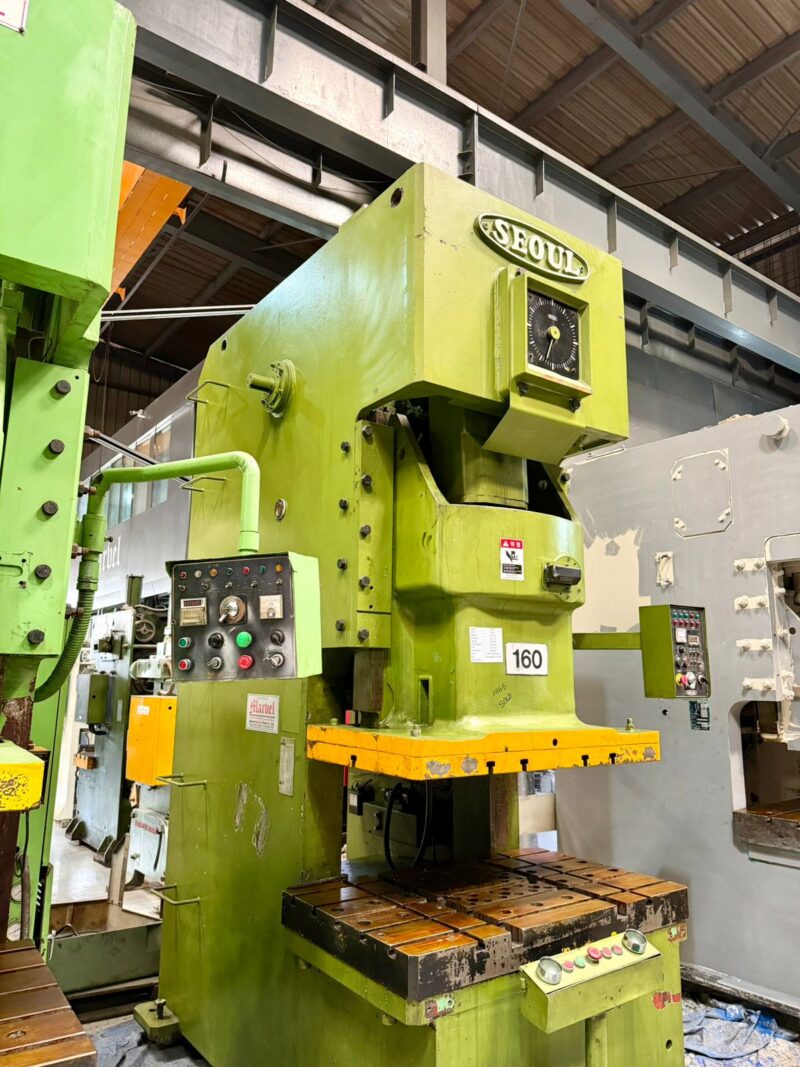

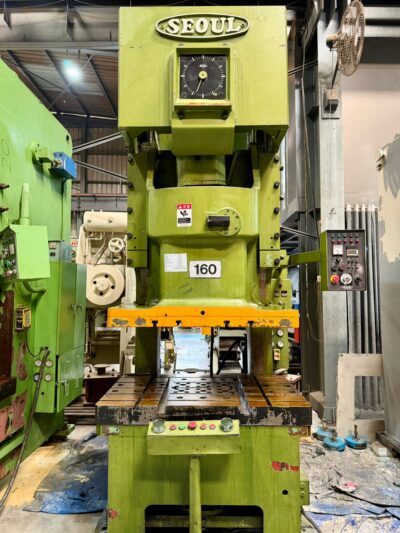

C FRAME SINGLE CRANK PPRSS

SEOUL – KOREA

MODEL : SSC-160

SKU # 1965

Brief Specifications/ Details

• Cap : 160tons
• Stroke : 200mm
• Die height : 500mm
• Adjustment : 100
• SPM : 25~42
• Slide : 1200 x 700mm

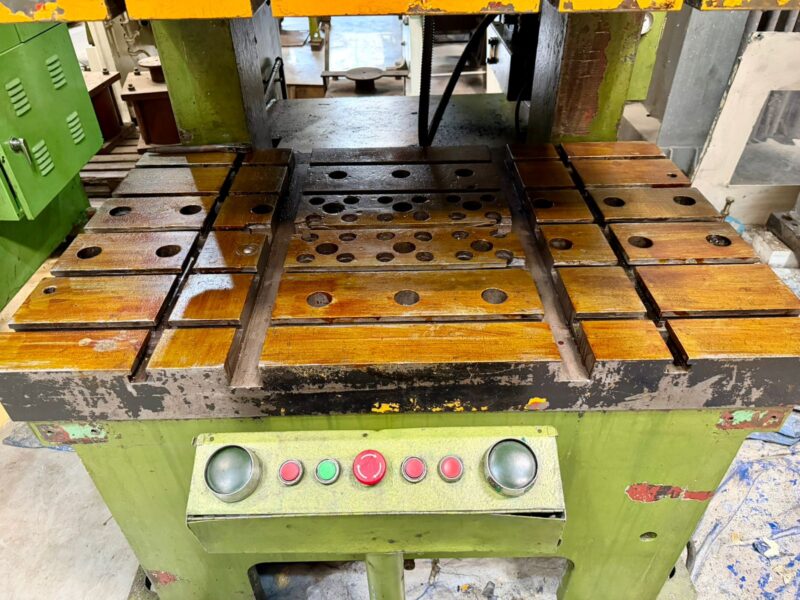

• Bolster : 1300 x 800mm

Accessories

• With Die Cushion
• Pad Area – 375 x 225

 Other Details (Approx)

• Clutch : Dry
• Main Motor : 19KW
• Power Required : 220V/23KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 8’-2”, L-R: 6’-0”, HT: 11’-7”
• Machine Weight : AP – 16 Tons
