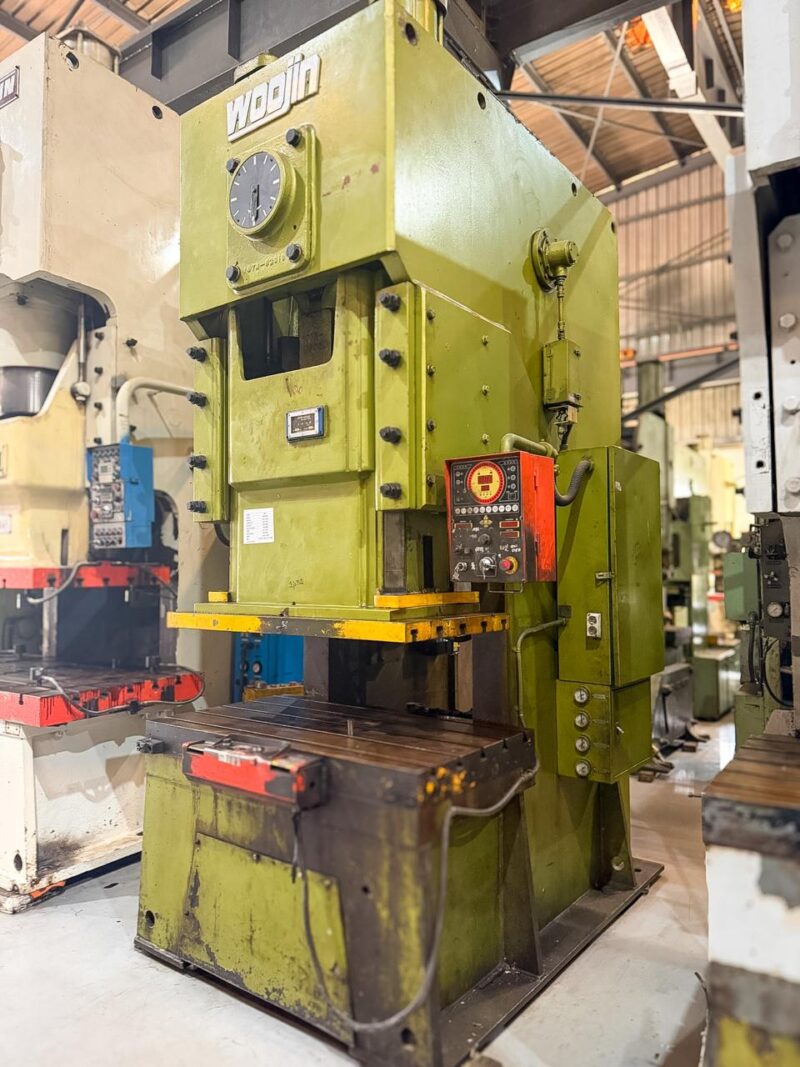

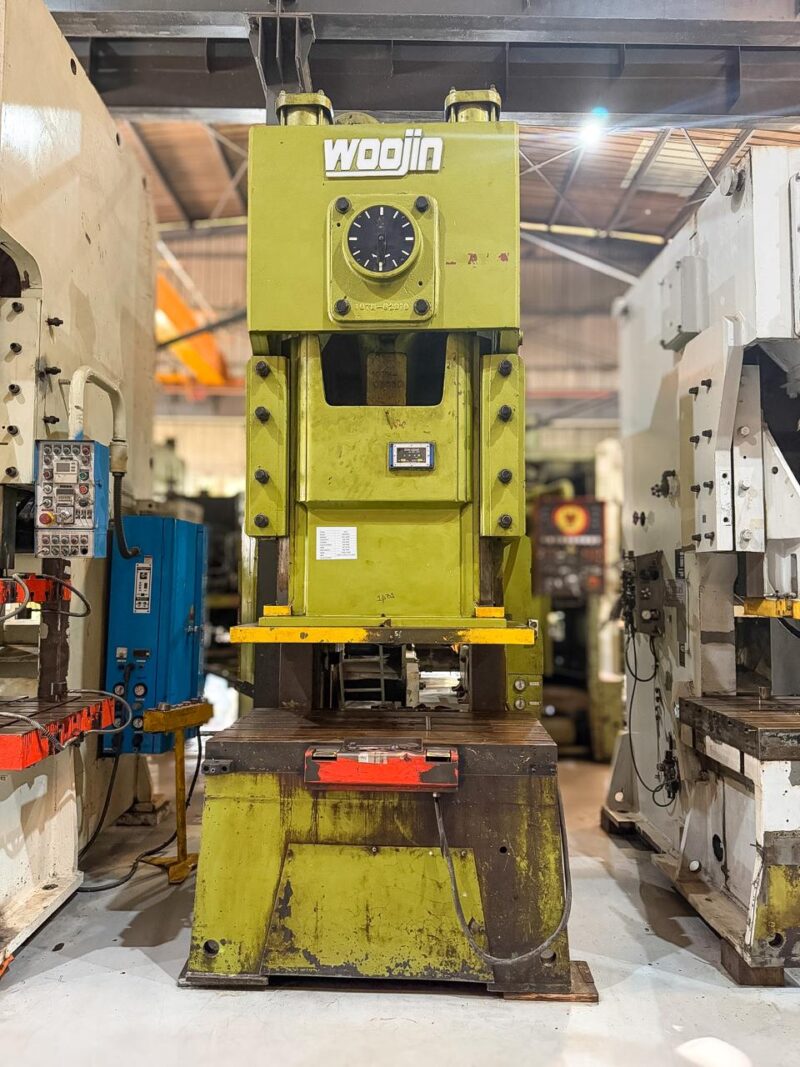

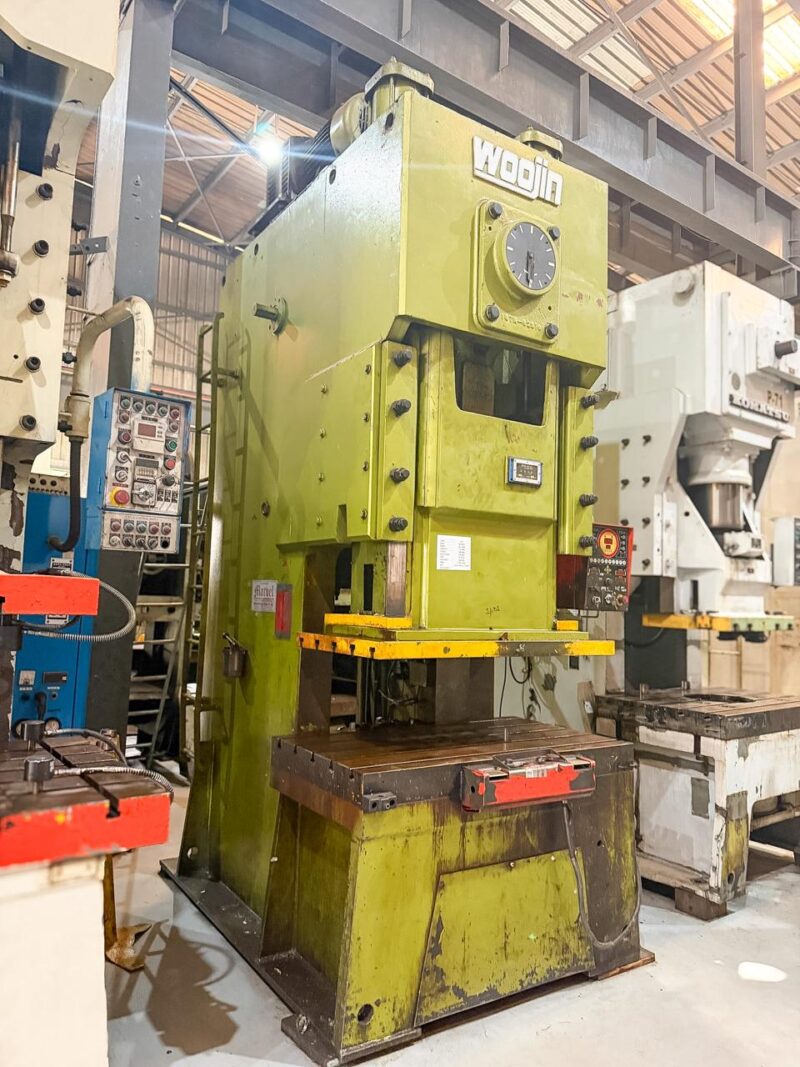

WOOJIN KOREA MODEL : WS-150N
C FRAME SINGLE CRANK PRESS
WOOJIN KOREA
MODEL : WS-150N
SKU # 1831

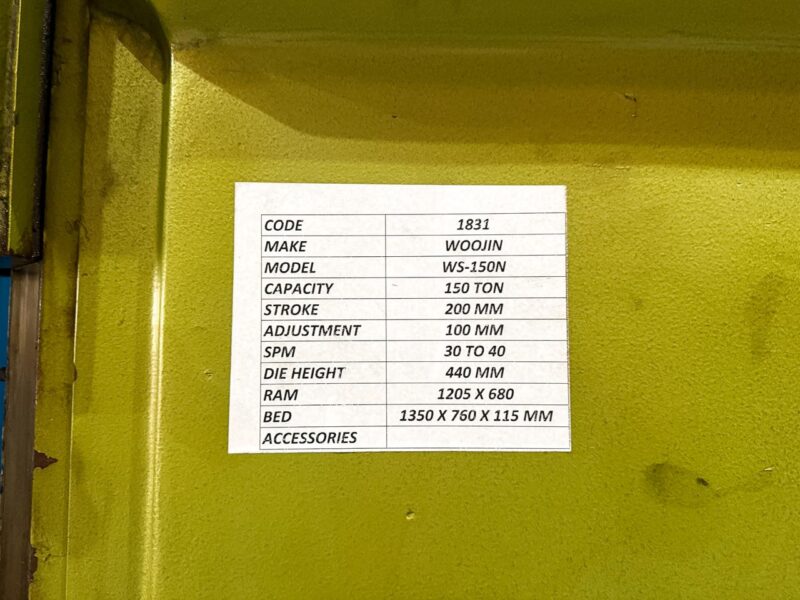

Brief Specifications/ Details
- Cap : 150Tons
- Stroke : 200mm
- Die Height : 440mm

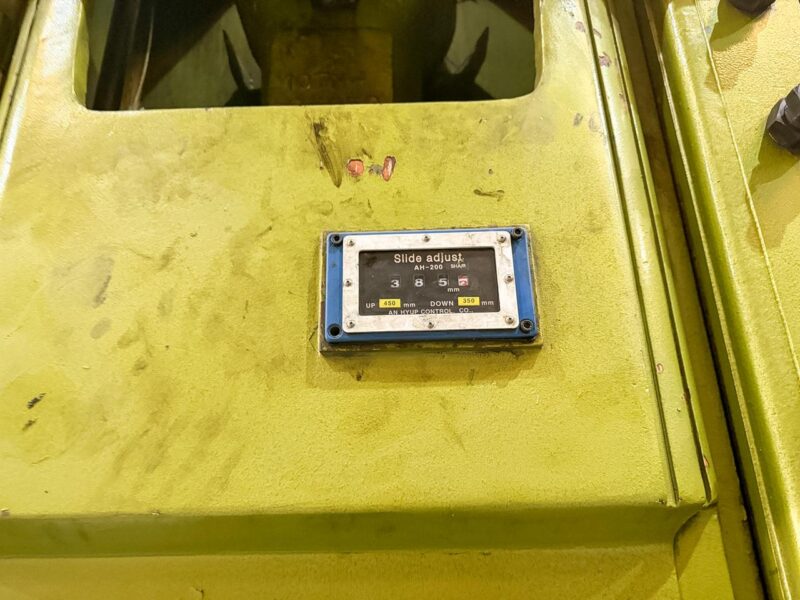

- Adjustment : 100mm-Electrical
- SPM : 30~40
- Slide : 1205 x 680mm

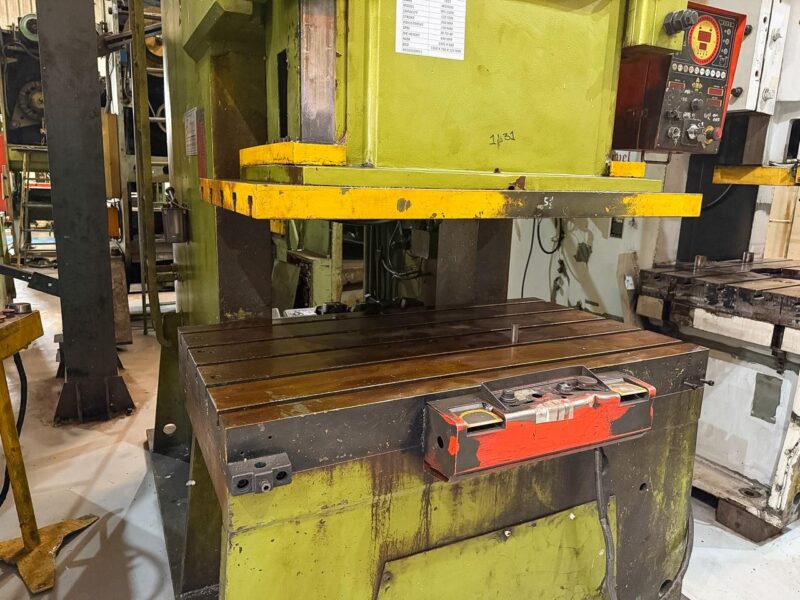

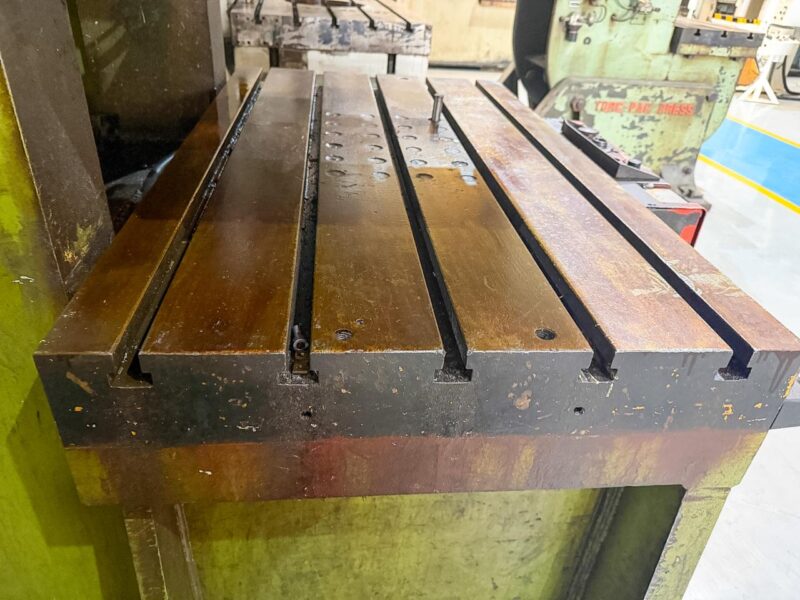

- Bolster : 1350 x 760mm
Accessories
- With Die Cushion wet clutch
Other Details (Approx)
- Clutch : Wet
- Main Motor : 16KW
- Power Required : 380V/19KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 7’-7”, L-R: 5’-9”, HT: 12’-6”
- Machine Weight : 15 Tons
