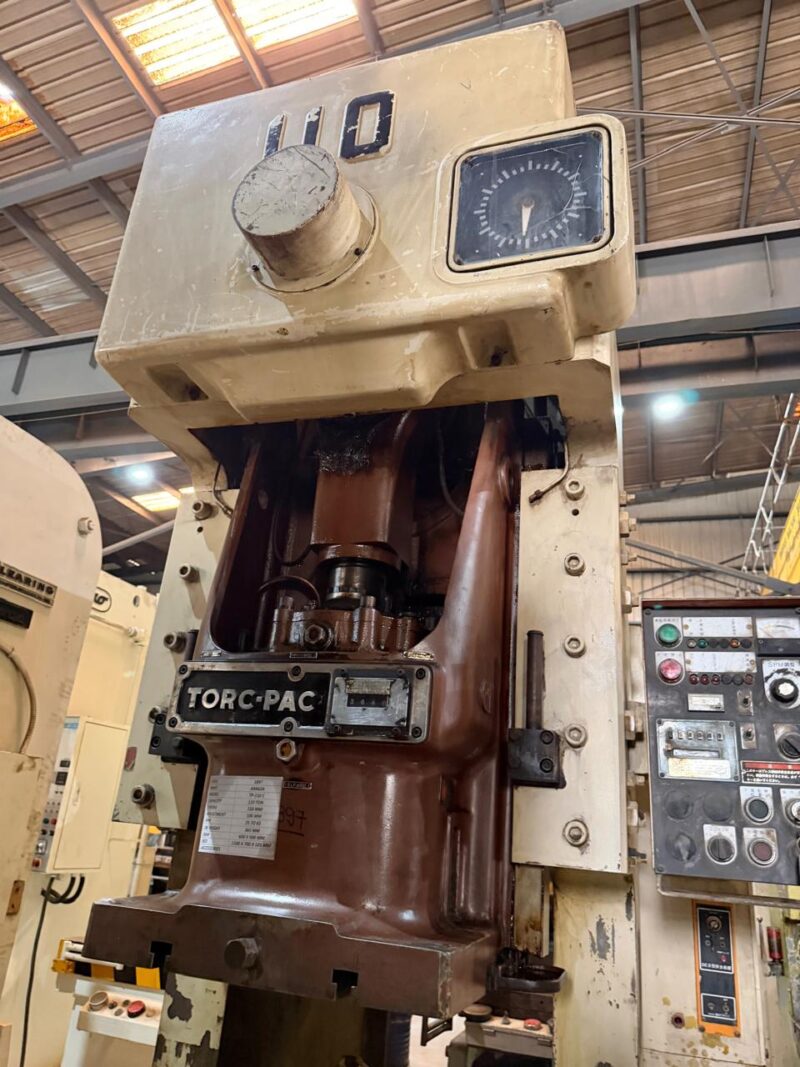

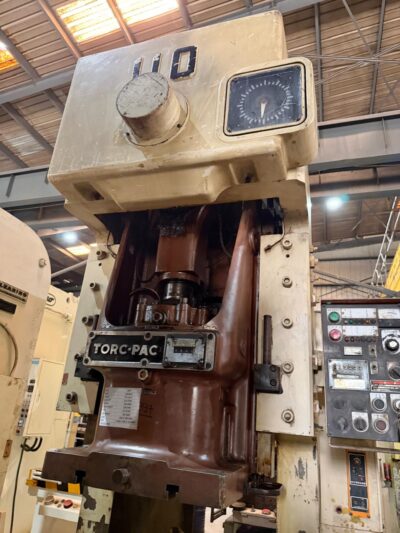

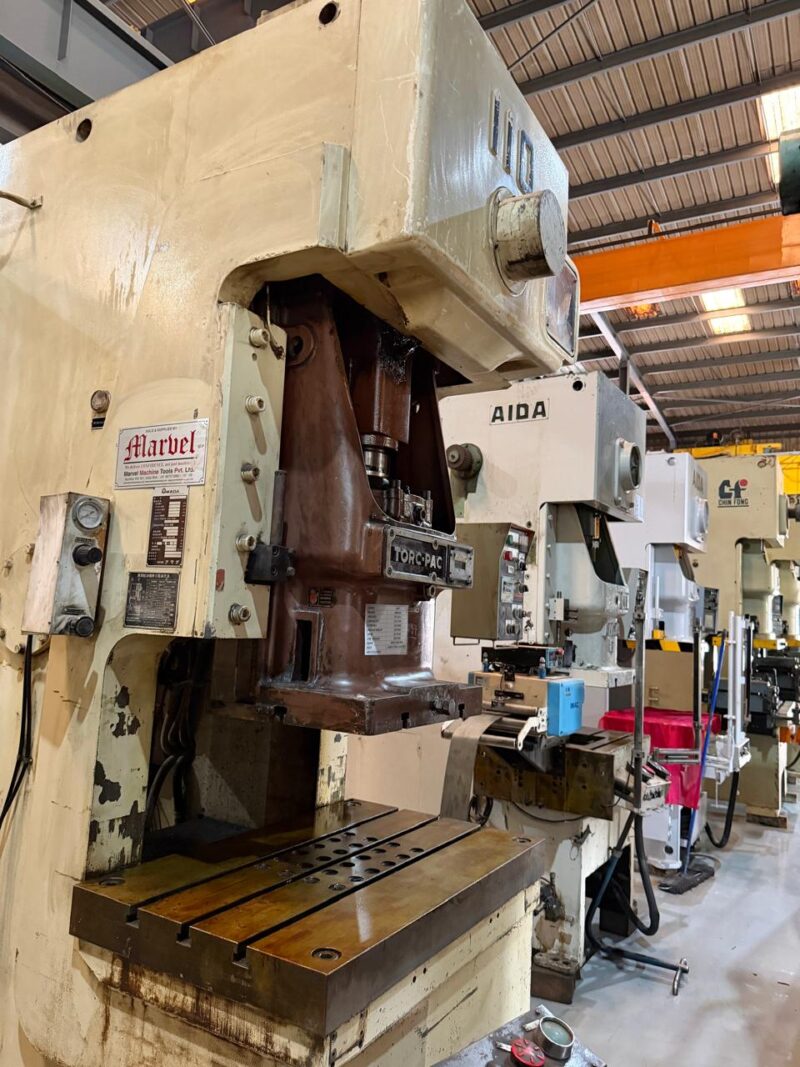

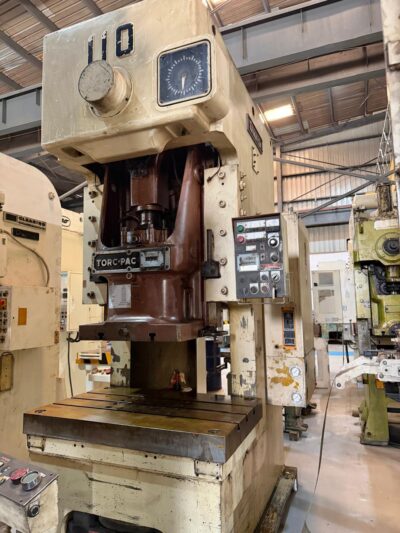

AMADA JAPAN MODEL : TP -110C
C FRAME SINGLE CRANK PRESS
AMADA JAPAN
MODEL : TP -110C
SKU # 1897
Brief Specifications/ Details
- Cap : 110Tons
- Stroke : 150mm
- Die Height : 365mm
- Adjustment : 100
- SPM : 35~65
- Slide : 600 x 500

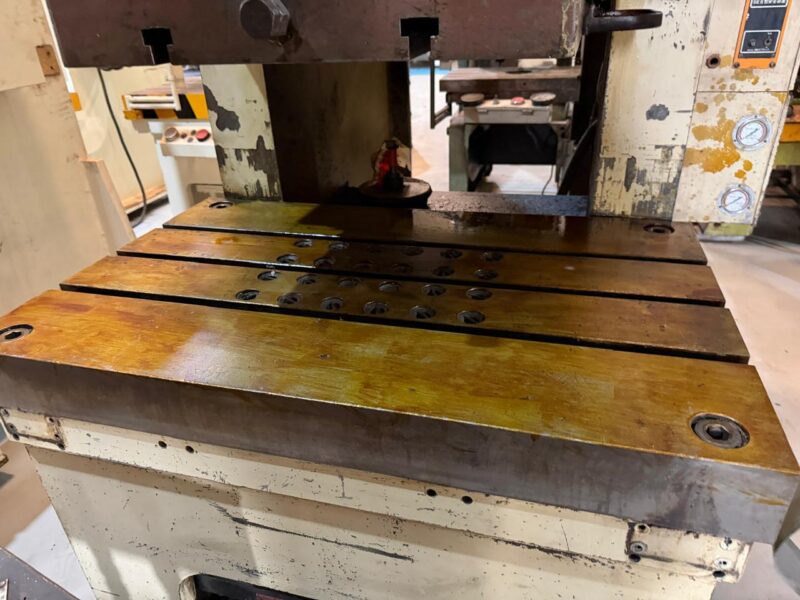

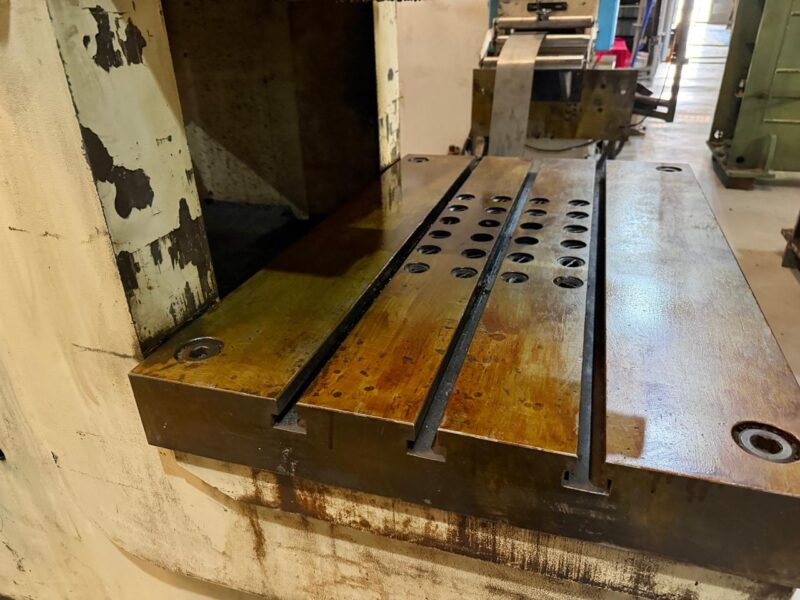

- Bolster : 1100 x 700
Accessories
- With Die Cushion
- Pad Area : 375 x 225mm
Other Details (Approx)
- Clutch : Wet
- Main Motor : 7.5KW
- Power Required : 220V/KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 7’-2”, L-R: 5’-0”, HT: 9’-7”
- Machine Weight : Ap 10 Tons
