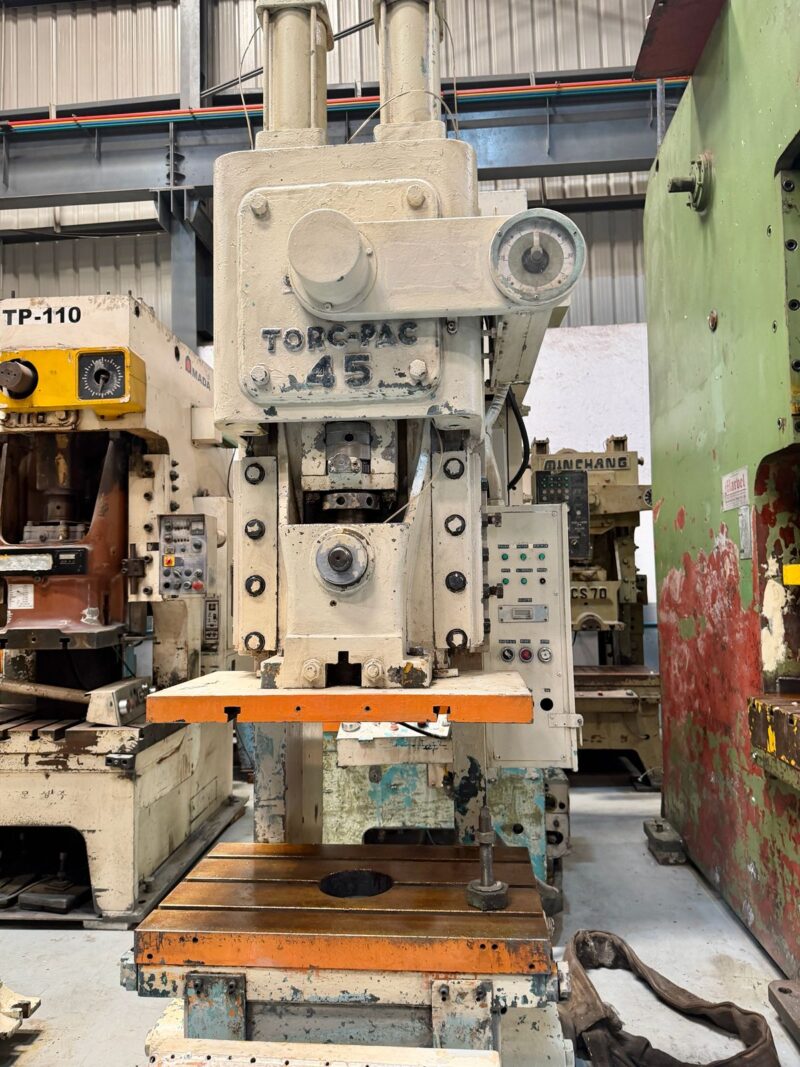

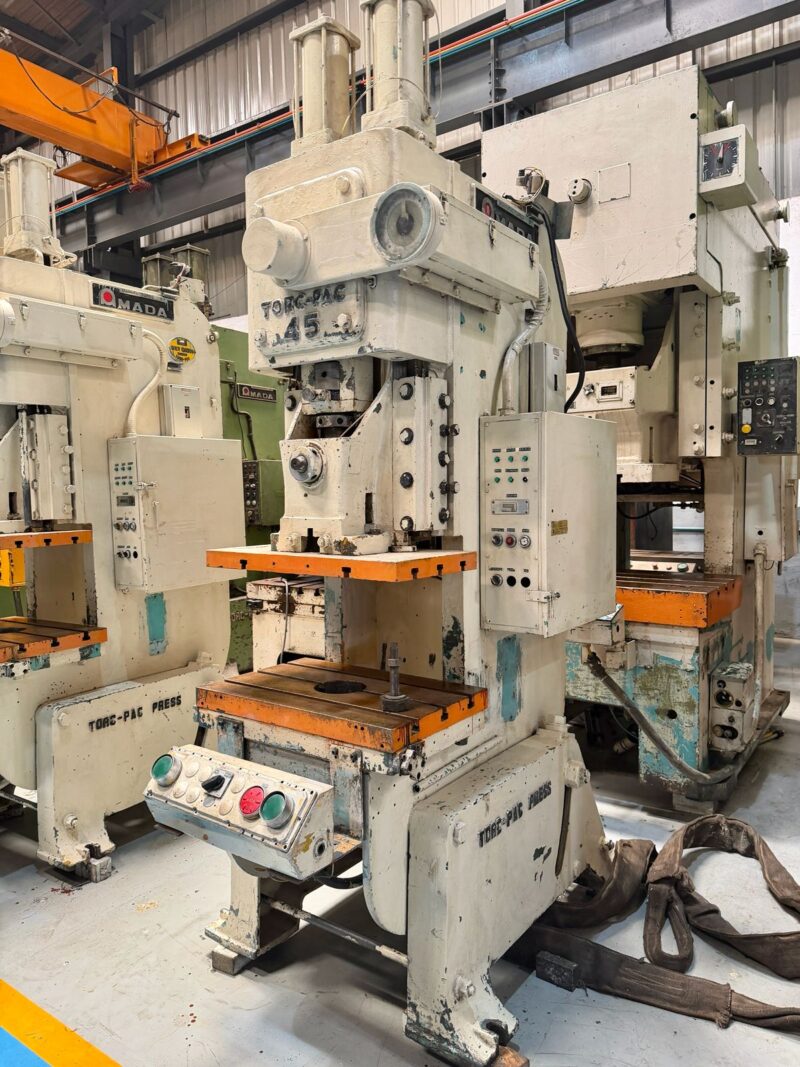

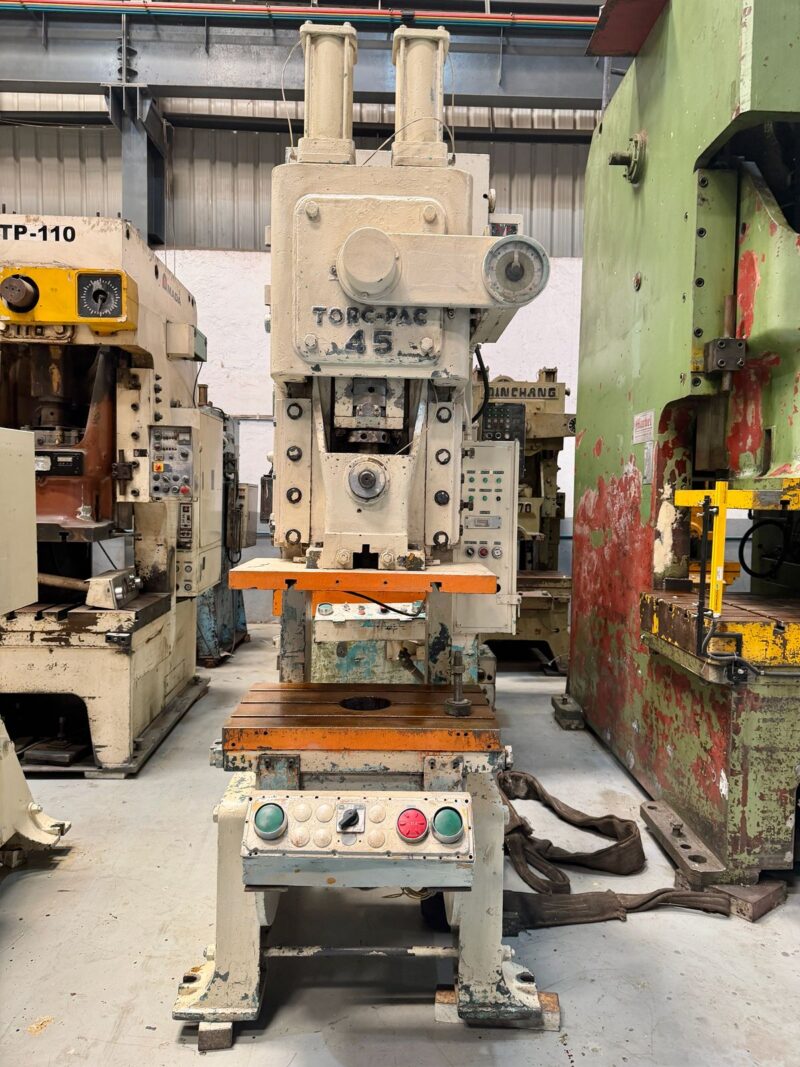

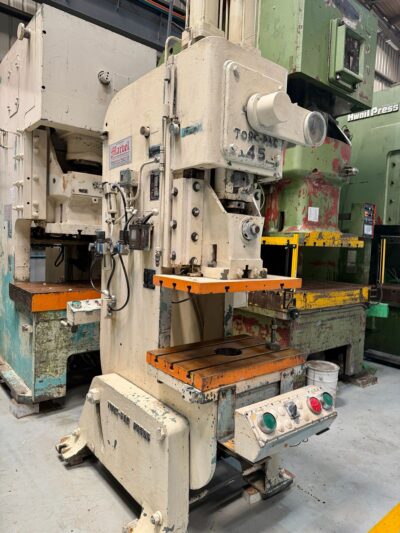

C FRAME SINGLE CRANK PPRSS

AMADA JAPAN

MODEL : TP-45-X

SKU # 1949

Brief Specifications/ Details

• Cap : 45 tons
• Stroke : 150mm
• Die height : 225mm
• Adjustment : 60
• SPM : 75
• Slide : 700 x 380mm
• Bolster : 710 x 460mm

Accessories

 Other Details (Approx)

• Clutch : Wet
• Main Motor :  3.7KW
• Power Required : 220V/4KVA Phase : 3
• Air Required : 5.5/sqcm
• Machine Size : F-B: 5’-5”, L-R: 3’-7”, HT: 9’-5”
• Machine Weight : Ap – 3 Tons
