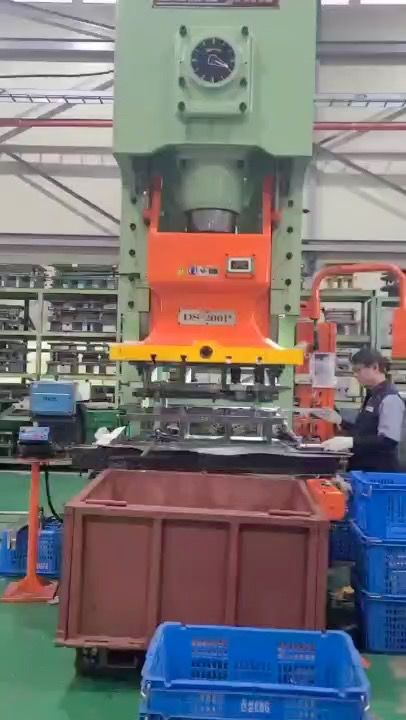

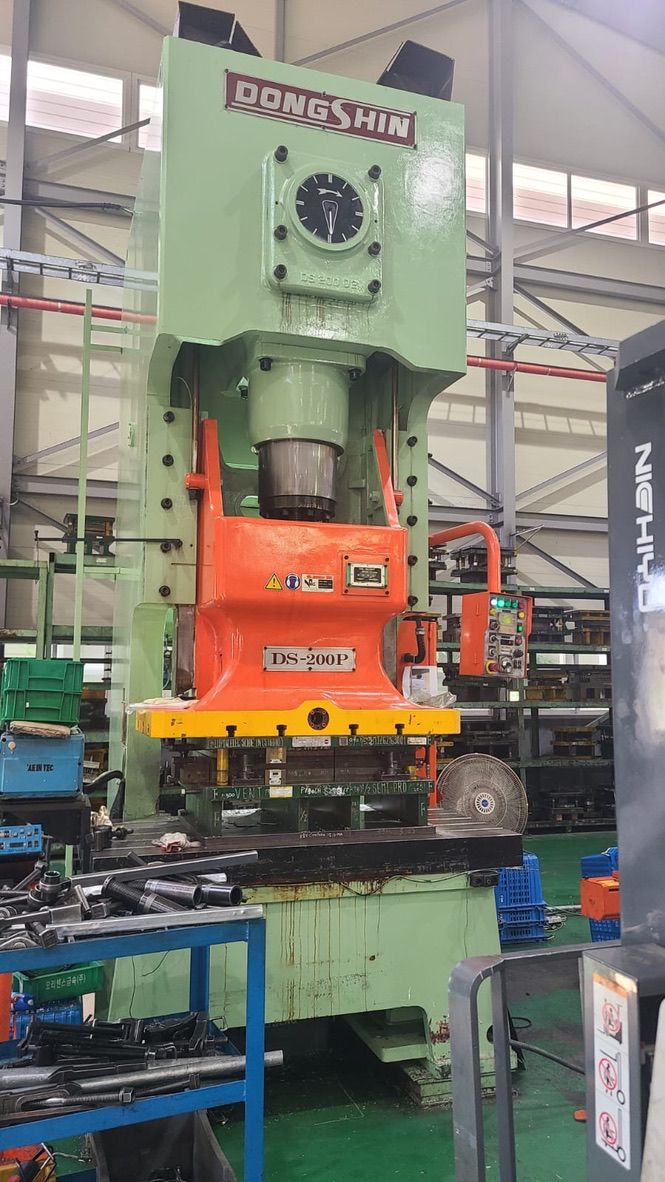

DONGSHIN KOREA MODEL : DS-200P
C FRAME SINGLE CRANK PRESS
DONGSHIN KOREA
MODEL : DS-200P
SKU # 1794
Brief Specifications/ Details
- Cap : 200Tons
- Stroke : 250mm
- Die Height : 500mm
- Adjustment : 120mm-Electrical
- SPM : 25~40
- Slide : 1300 x 700mm
- Bolster : 1700 x 900mm
Accessories
With Die Cushion
Other Details (Approx)
- Clutch : Dry
- Main Motor : 15 KW
- Power Required : 380V/18KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 7’-9”, L-R: 6’-5”, HT: 15’-0”
- Machine Weight : 20 Tons
