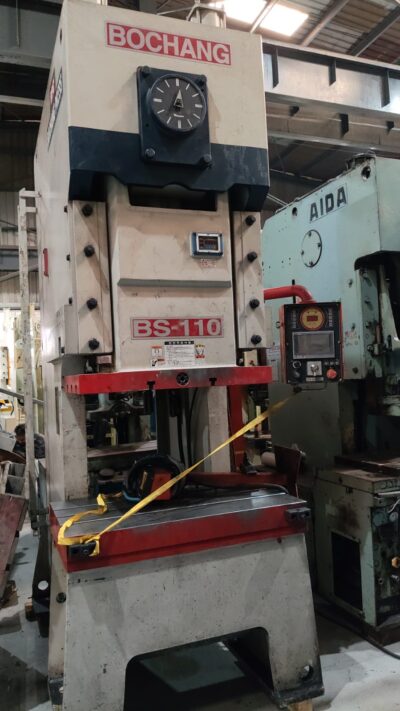

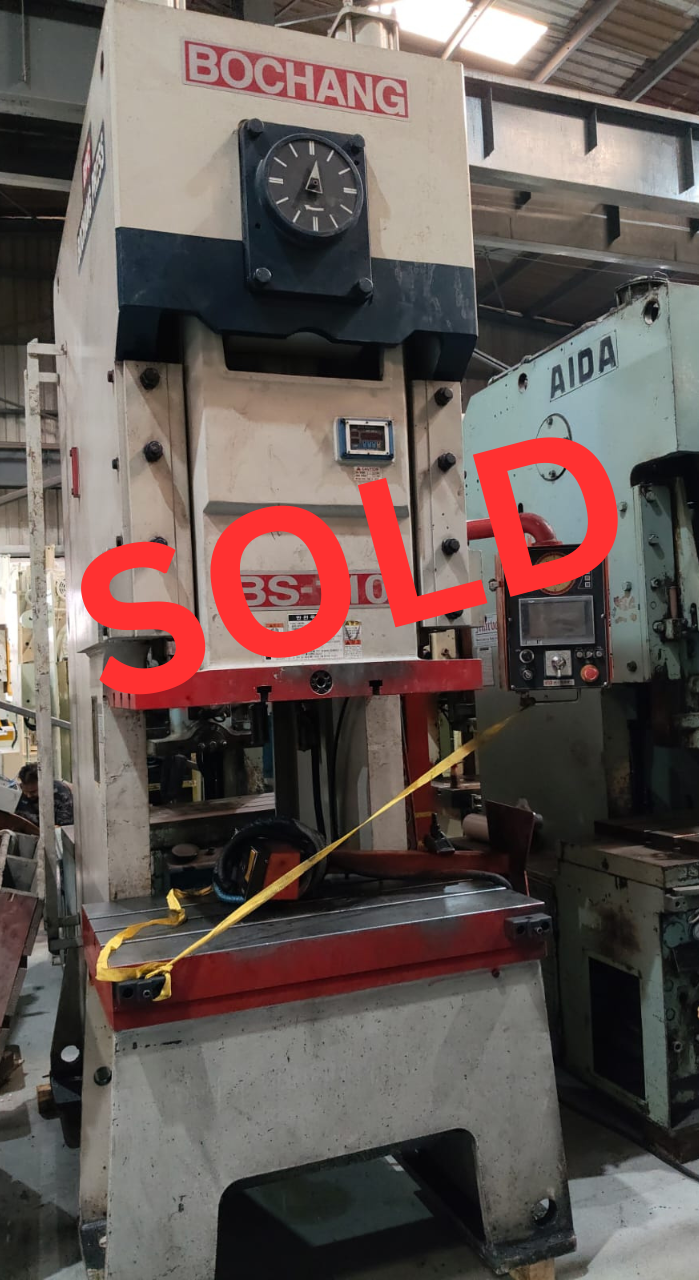

BOCHANG KOREA MODEL : BS -110
C FRAME SINGLE CRANK PRESS
BOCHANG KOREA
MODEL : BS -110
SKU # 1806
Brief Specifications/ Details
- Cap : 110Tons
- Stroke : 180mm
- Die Height : 430mm
- Adjustment : 100mm-Electrical
- SPM : 20~55
- Slide : 920 x 500mm
- Bolster : 1100 x 680mm
Accessories
- With Die Cushion
- Pad Area – 225 x 225mm
Other Details (Approx)
- Clutch : Wet
- Main Motor : 11 KW
- Power Required : 220V/13KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 6’-10”, L-R: 5’-0”, HT: 11’-5”
- Machine Weight : 11 Tons
