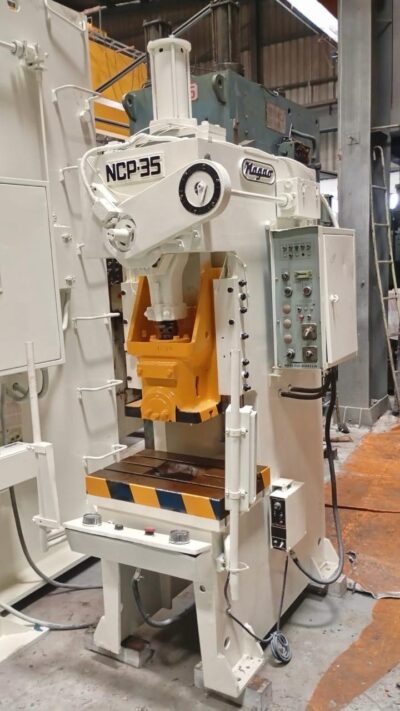

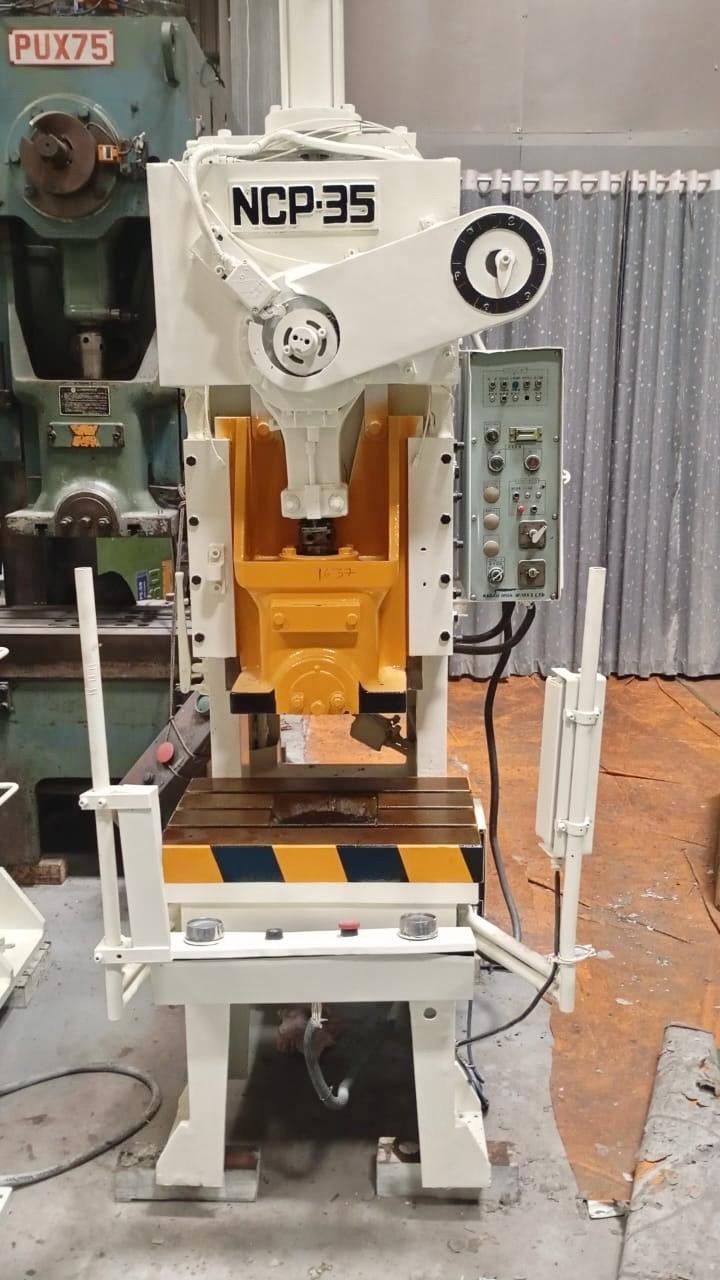

NAGAO JAPAN MODEL : NCP-35
C FRAME SINGLE CRANK PRESS
NAGAO JAPAN
MODEL : NCP-35
SKU # 1637
Brief Specifications/ Details
- Cap : 35Tons
- Stroke : 70mm
- Die Height : 240mm
- Adjustment : 60mm
- SPM : 60
- Slide : 350 x 240mm

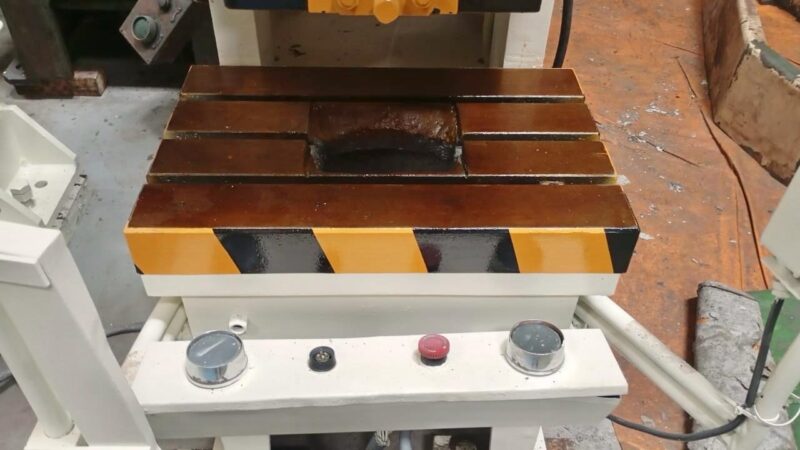

- Bolster : 630 x 400mm
Other Details (Approx)
- Clutch : Dry
- Main Motor : 2.2KW
- Power Required : 220V/2.5KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 4’-7”, L-R: 3’-4”, HT: 8’-5”
- Machine Weight : 3 Tons
