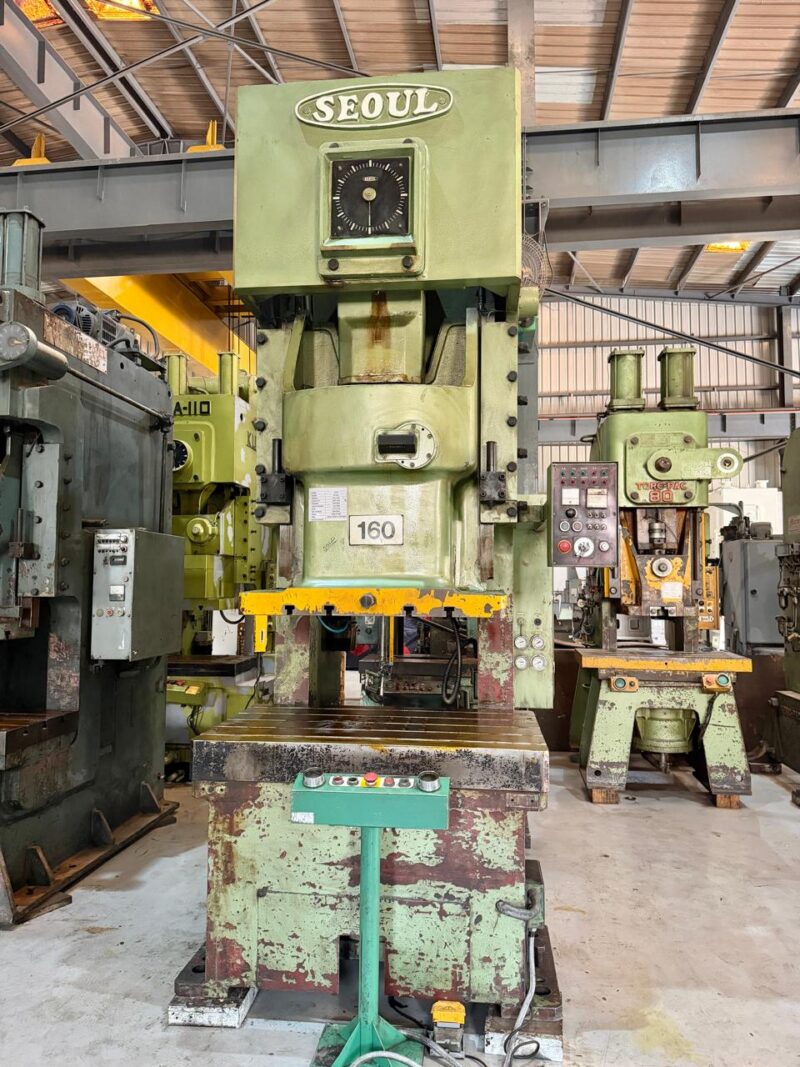

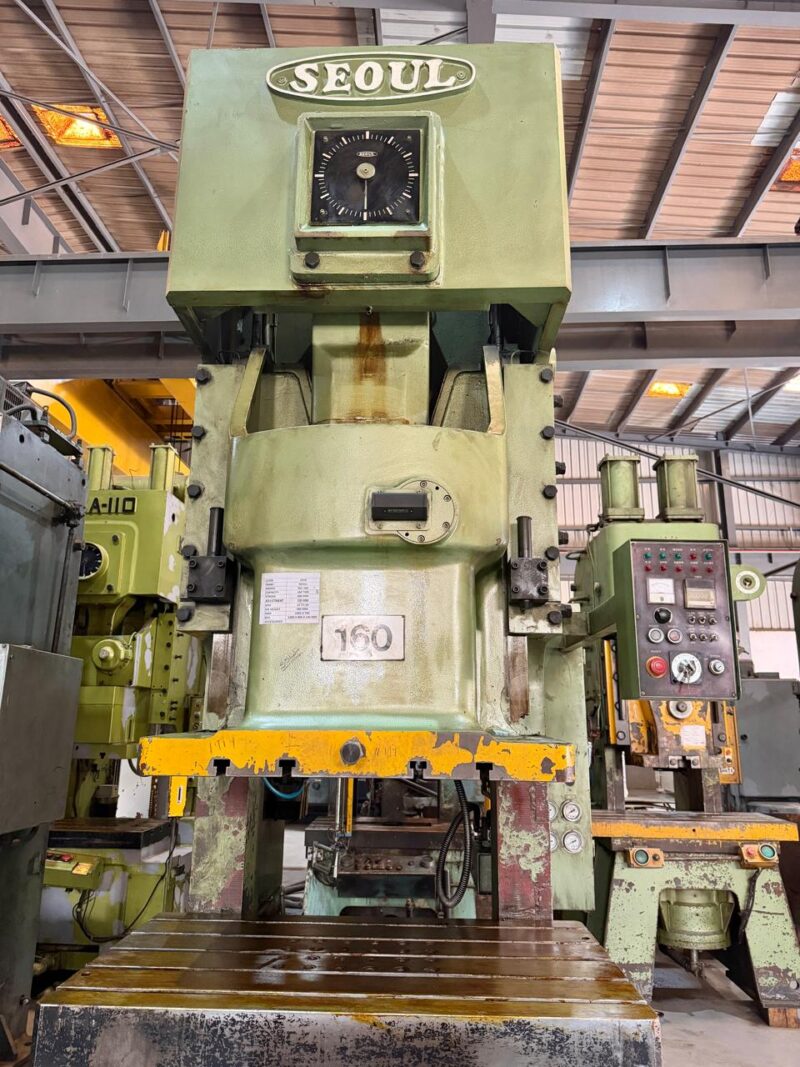

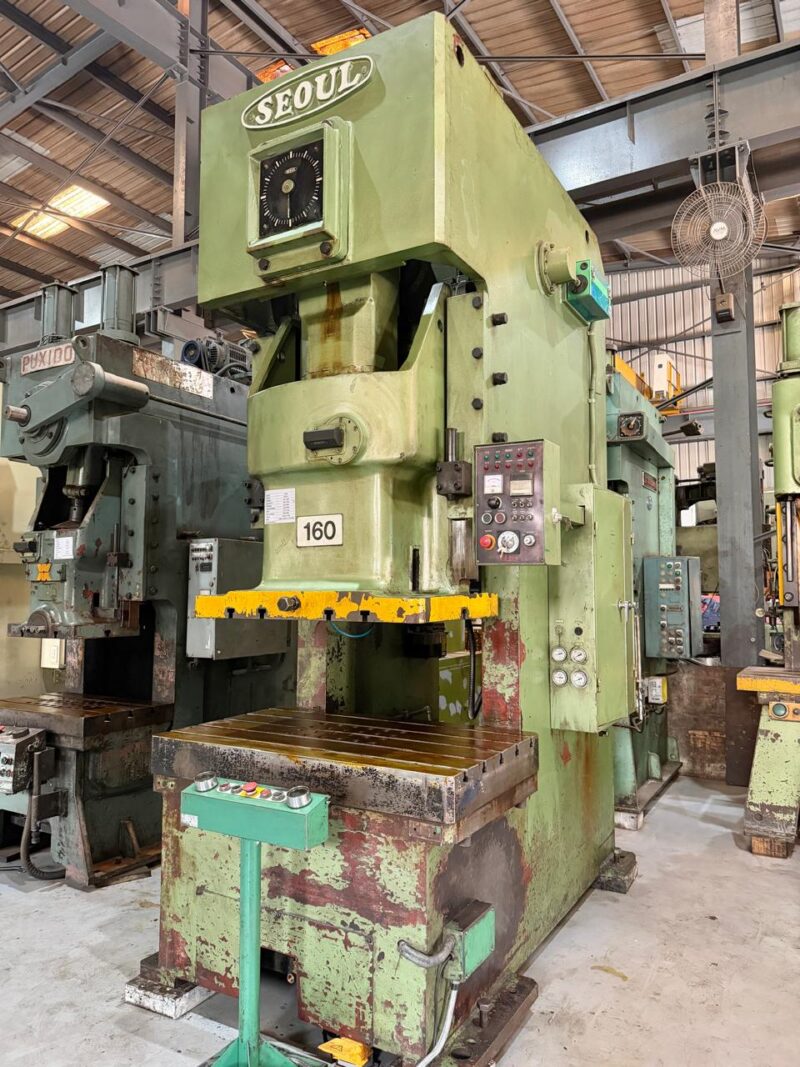

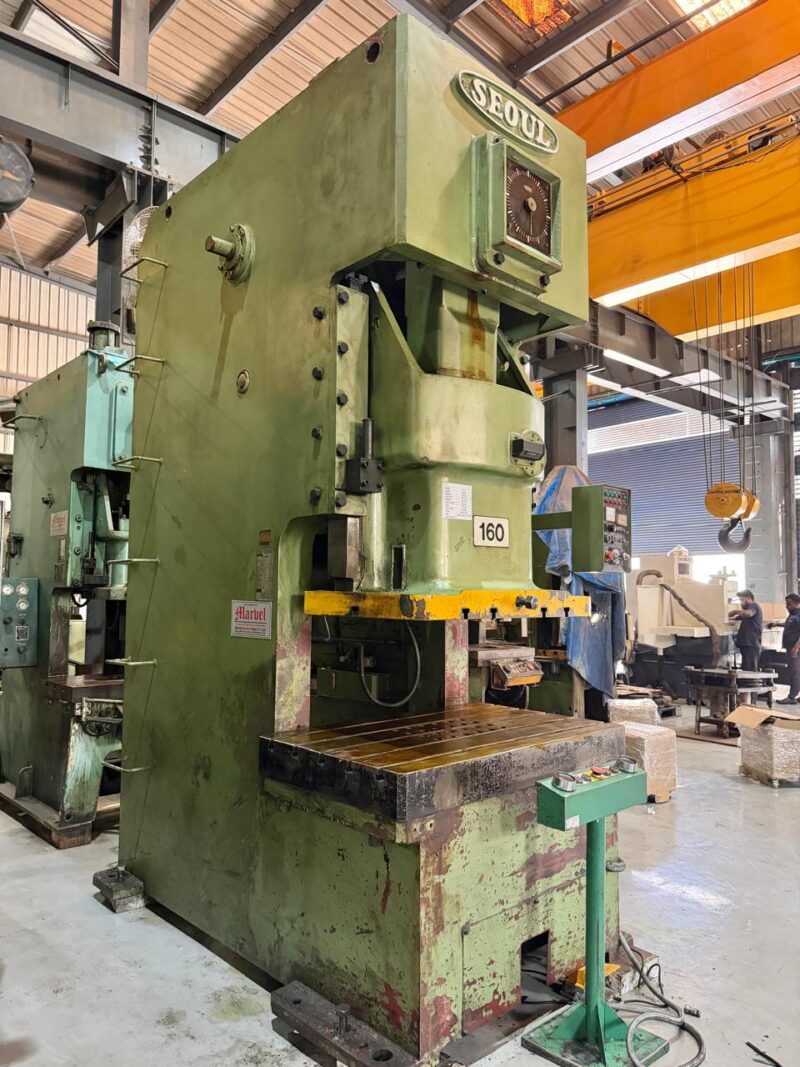

SEOUL – KOREA MODEL : SSC-160
C FRAME SINGLE CRANK PRESS
SEOUL – KOREA
MODEL : SSC-160
SKU # 1919

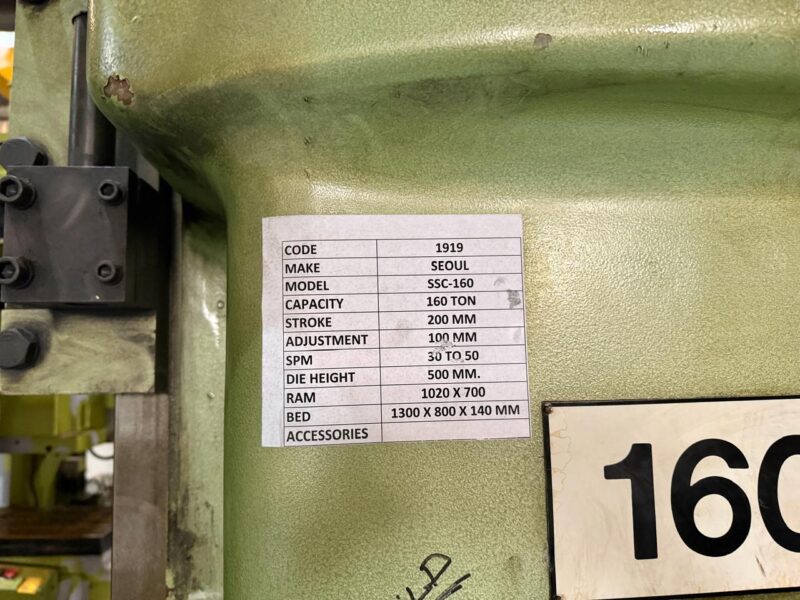

Brief Specifications/ Details
- Cap : 160Tons
- Stroke : 200mm
- Die Height : 500mm
- Adjustment : 100
- SPM : 30~50
- Slide : 1010 x 700

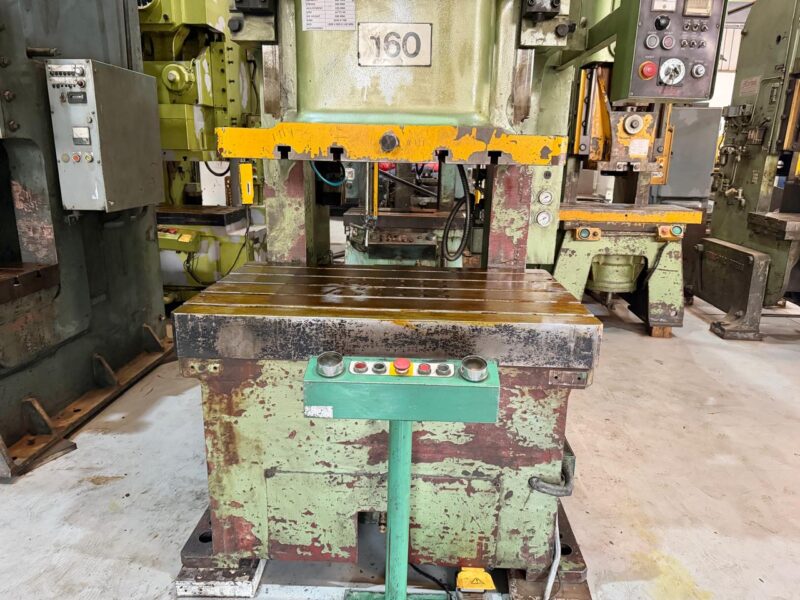

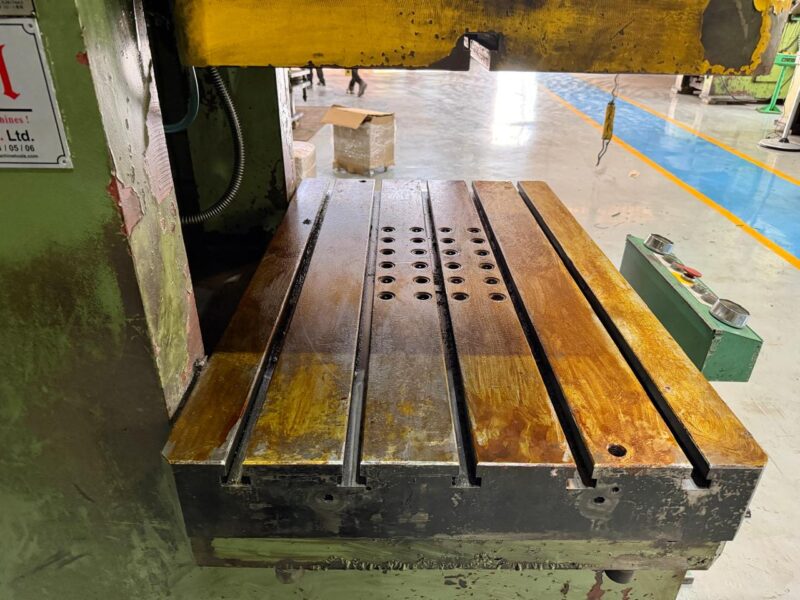

- Bolster : 1300 x 800
Accessories
- With Die Cushion
- Pad Area : 375 x 225mm
Other Details (Approx)
- Clutch : Dry
- Main Motor : 19KW
- Power Required : 380V/23KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 8’-2”, L-R: 5’-7”, HT: 12’-2”
- Machine Weight : AP 16 Tons
