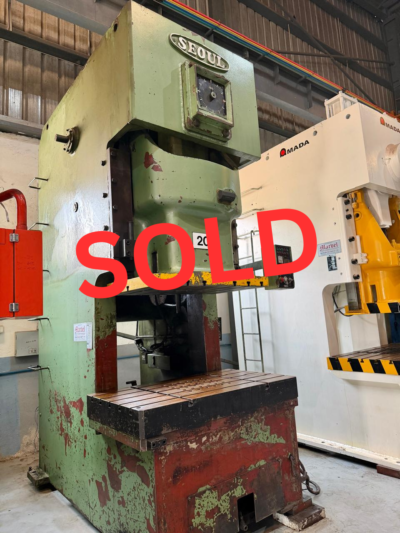

SEOUL – KOREA MODEL : SSC-200
C FRAME SINGLE CRANK PRESS
SEOUL – KOREA
MODEL : SSC-200
SKU # 1912
Brief Specifications/ Details
- Cap : 200Tons
- Stroke : 250mm
- Die Height : 500mm
- Adjustment : 110
- SPM : 30~40
- Slide : 1140 x 760
- Bolster : 1450 x 850
Accessories
- With Die Cushion
- Pad Area : 375 x 375mm
Other Details (Approx)
- Clutch : Dry
- Main Motor : 23KW
- Power Required : 380V/25KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 9’-0”, L-R: 6’-0”, HT: 13’-0”
- Machine Weight : AP 20 Tons
