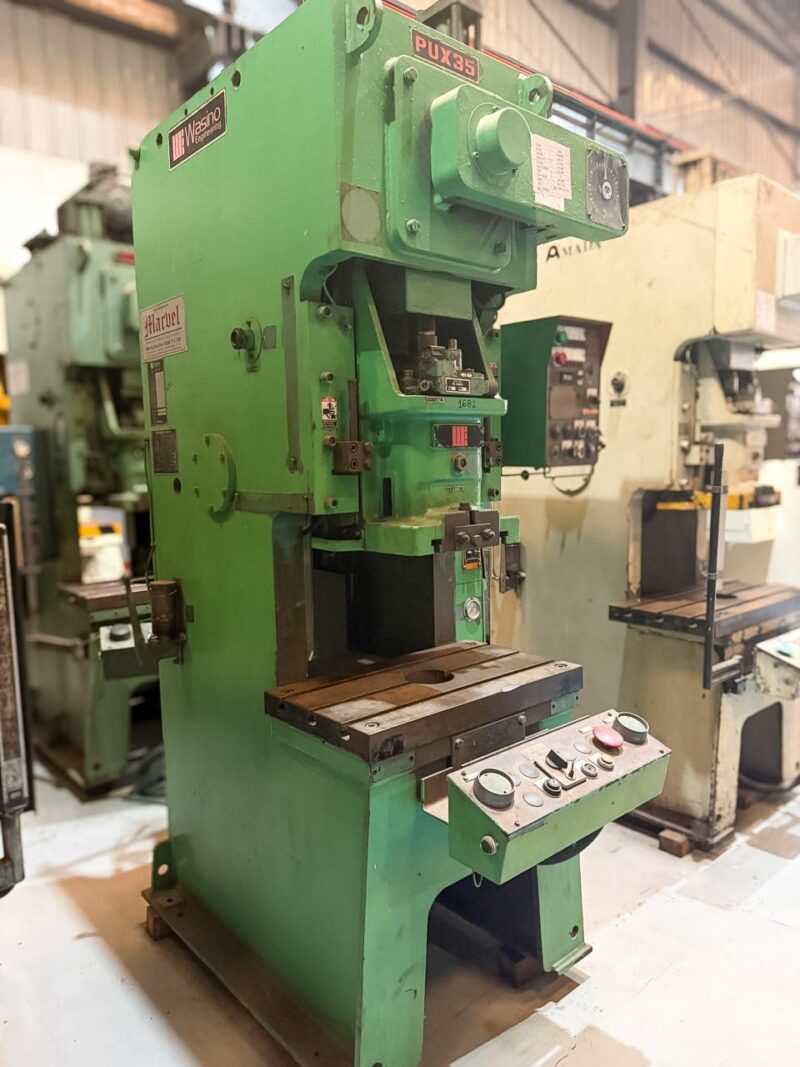

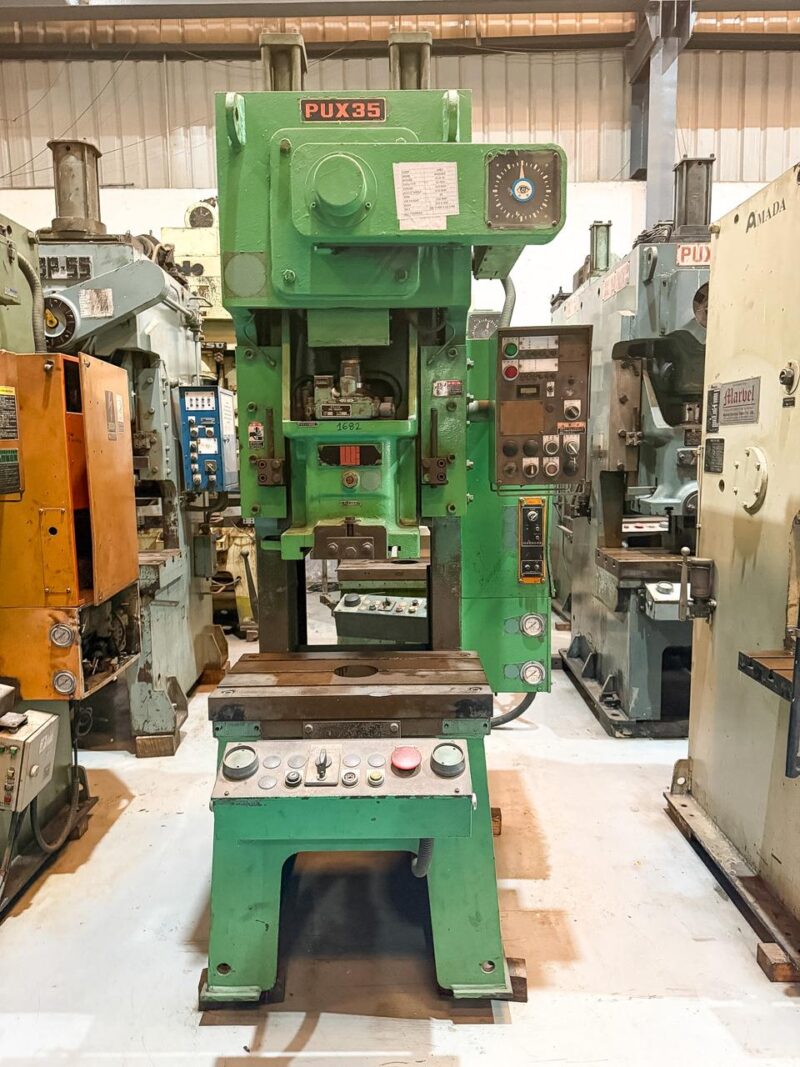

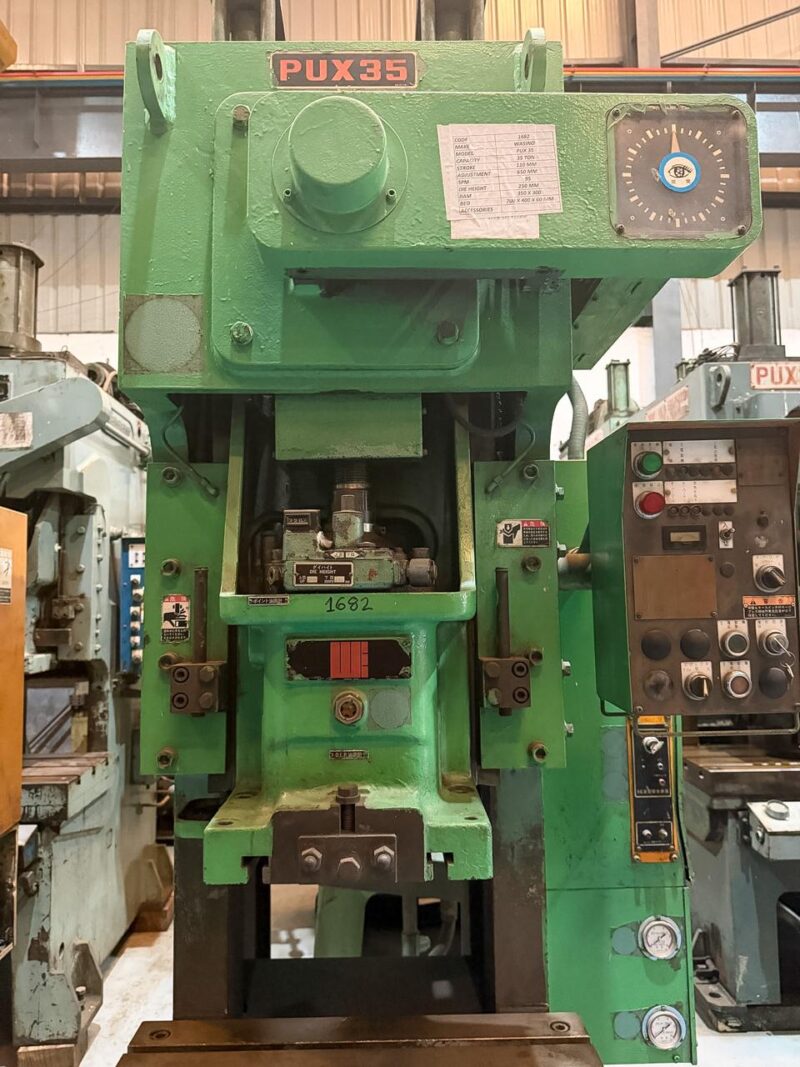

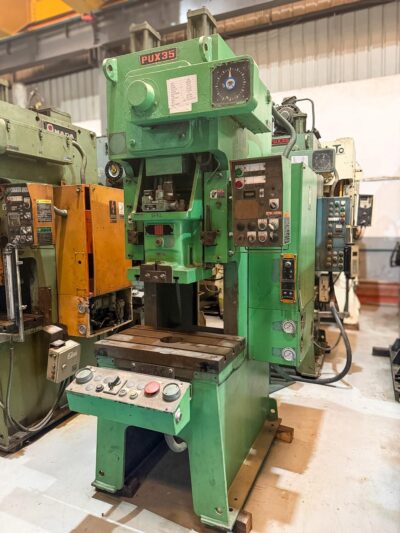

WASINO JAPAN MODEL : PUX-35
C FRAME SINGLE CRANK PRESS
WASINO JAPAN
MODEL : PUX-35
SKU # 1682
Brief Specifications/ Details
- Cap : 35Tons
- Stroke : 110mm
- Die Height : 250mm
- Adjustment : 65mm
- SPM : 95
- Slide : 350 x 300mm
- Bolster : 700 x 400mm
Other Details (Approx)
- Clutch : Wet
- Main Motor : 7.5KW
- Power Required : 220V/5KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 5’-5”, L-R: 4’-0”, HT: 8’-5”
- Machine Weight : Tons
