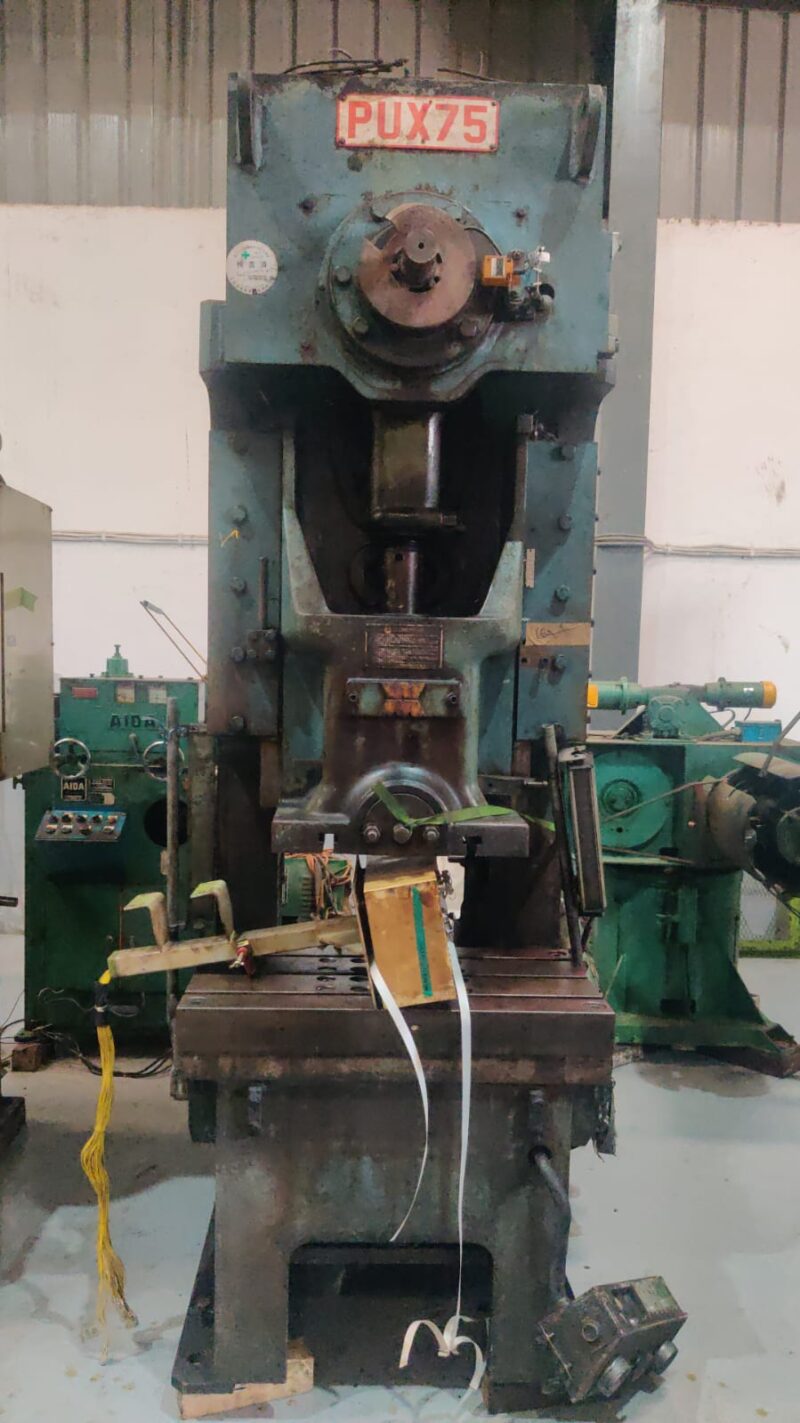

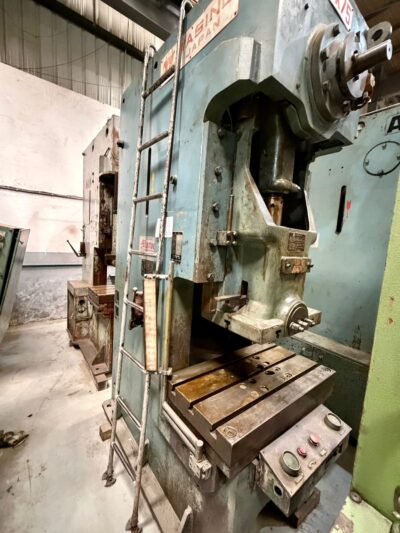

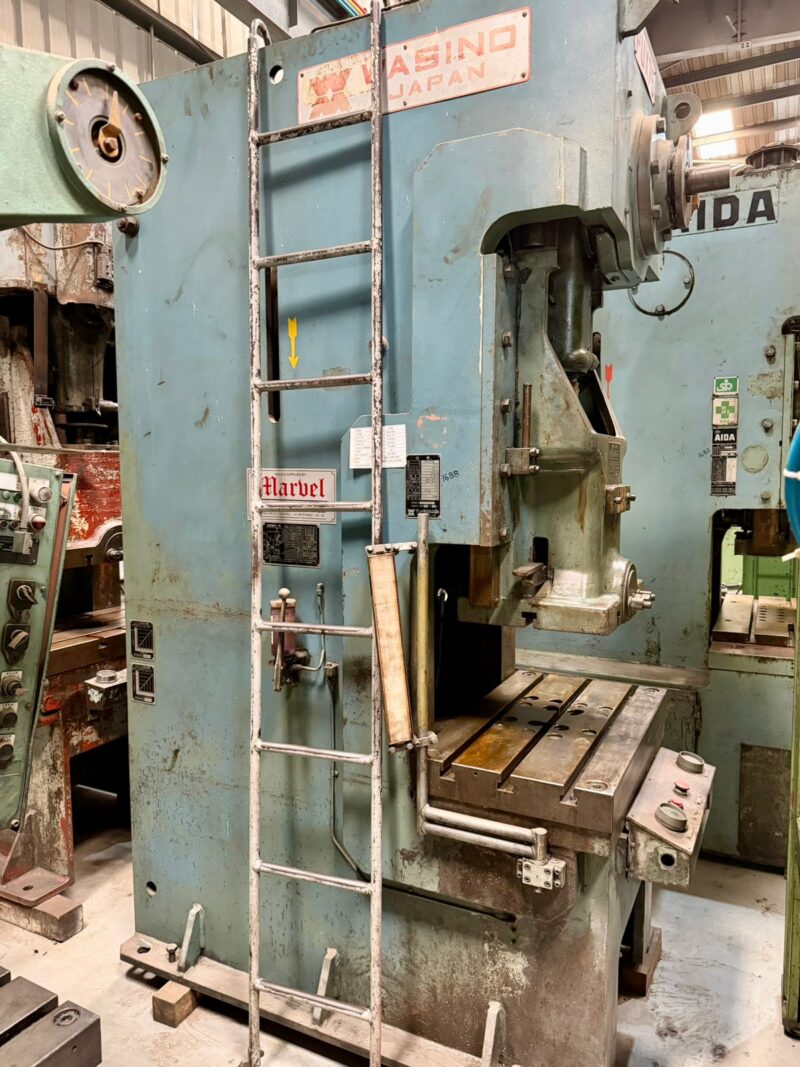

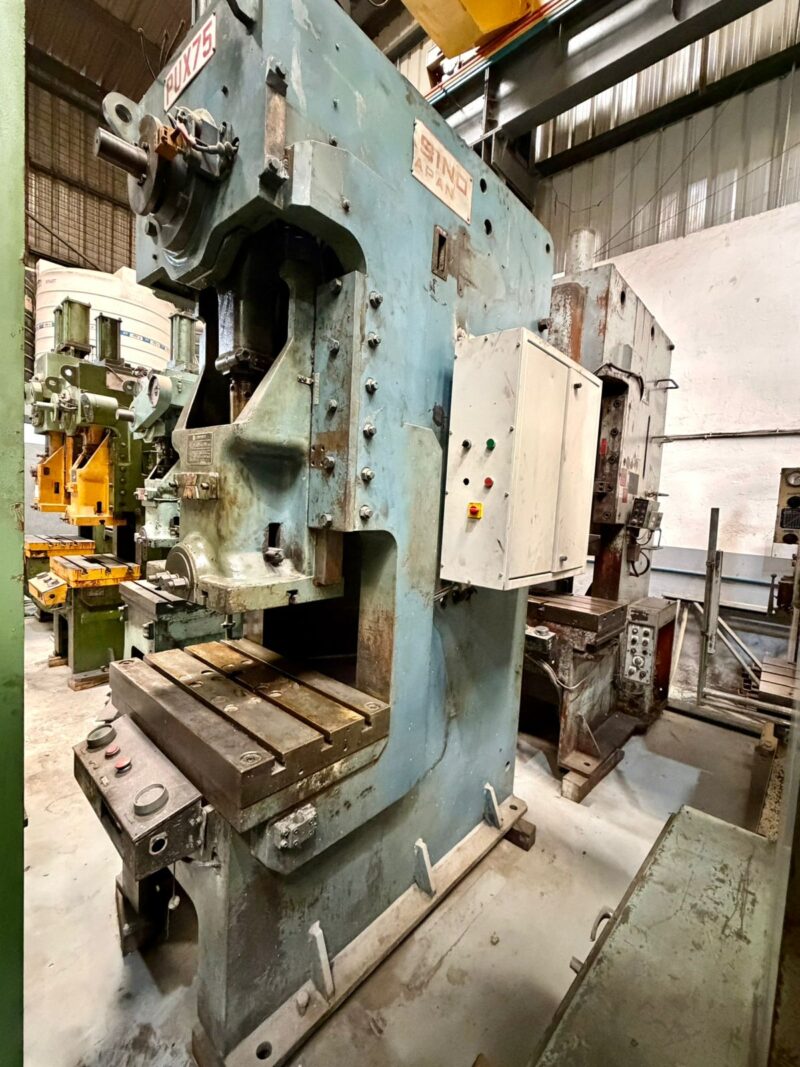

WASINO JAPAN MODEL : PUX-75
C FRAME SINGLE CRANK PRESS
WASINO JAPAN
MODEL : PUX-75
SKU # 1688
Brief Specifications/ Details
- Cap : 75Tons
- Stroke : 150mm
- Die Height : 330mm
- Adjustment : 75mm
- SPM : 60
- Slide : 540x 400mm

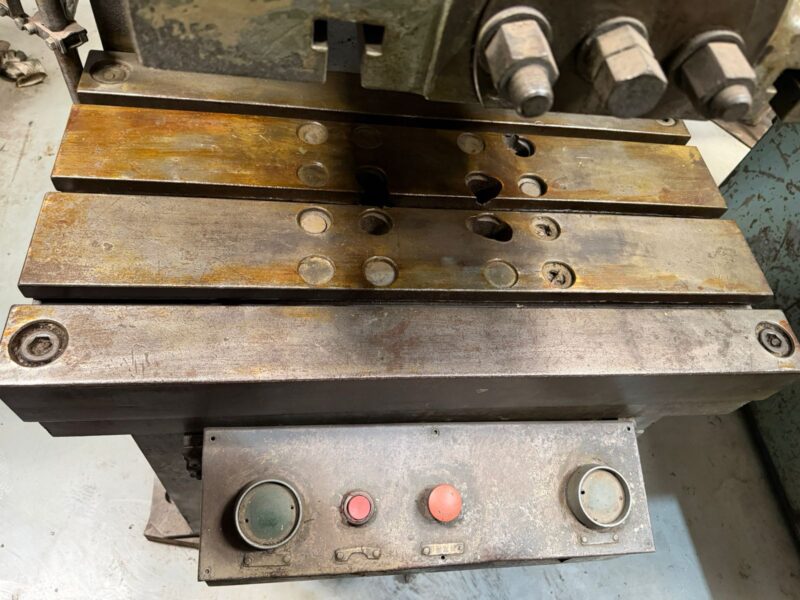

- Bolster : 900x 500mm
Accessories
- With Die Cushion
- Pad Area – 300 x 225mm
Other Details (Approx)
- Clutch : Dry
- Main Motor : 5.5 KW
- Power Required : 220V/6.5KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 6’-0”, L-R: 4’-0”, HT: 10’-5”
- Machine Weight : 6.5Tons
