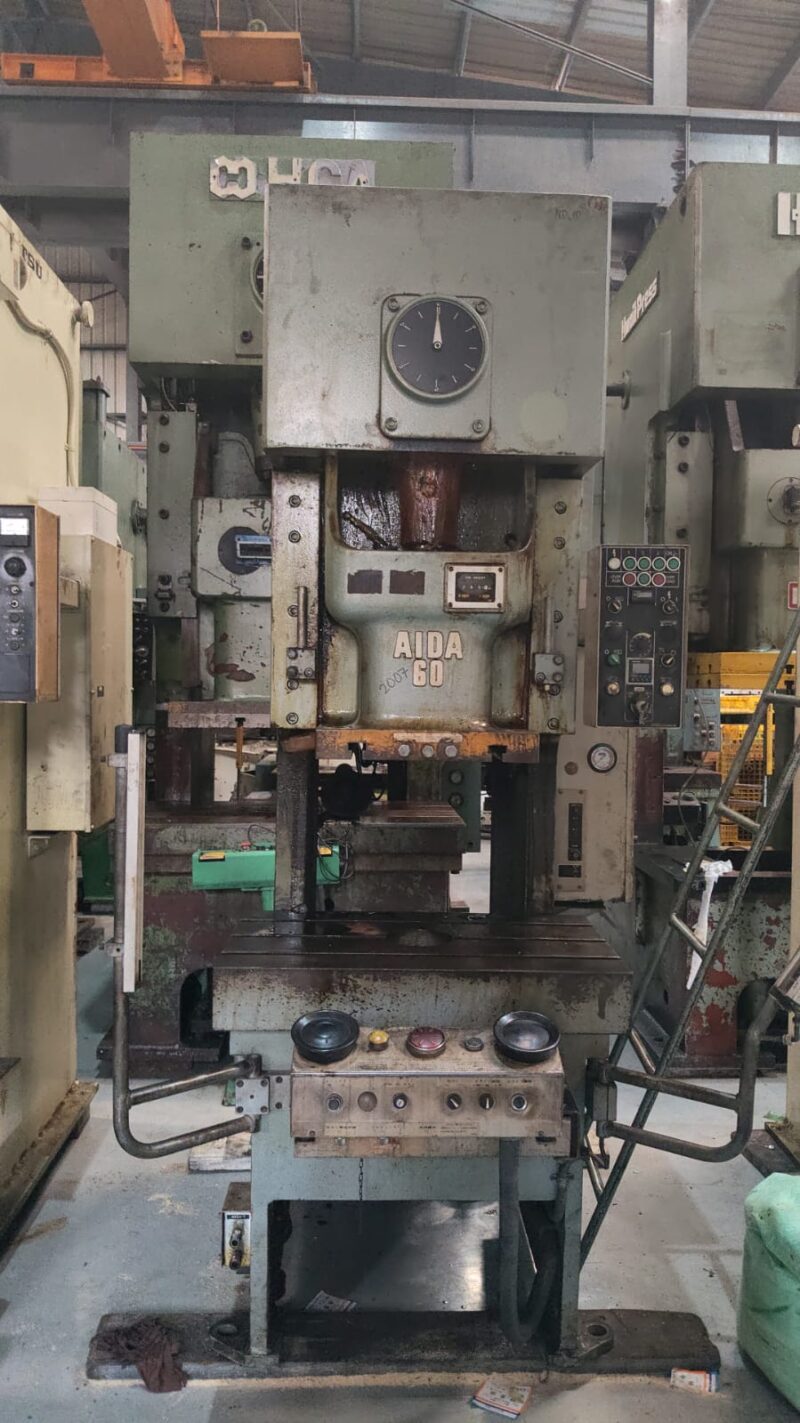

AIDA JAPAN MODEL : NC1-6(2)
C FRAME SINGLE CRANK PRESS
AIDA JAPAN
MODEL : NC1-6(2)
SKU # 2007
Brief Specifications/ Details
- Cap : 60Tons
- Stroke : 140mm
- Die Height : 300mm
- Adjustment : 70
- SPM : 70
- Slide : 480 x 400mm
- Bolster : 870 x 520mm
Accessories
Other Details (Approx)
- Clutch : Wet
- Main Motor : 5.5KW
- Power Required : 220V/6.5KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 5’-5”, L-R: 4’-6”, HT: 9’-0”
- Machine Weight : AP – 5 Tons
