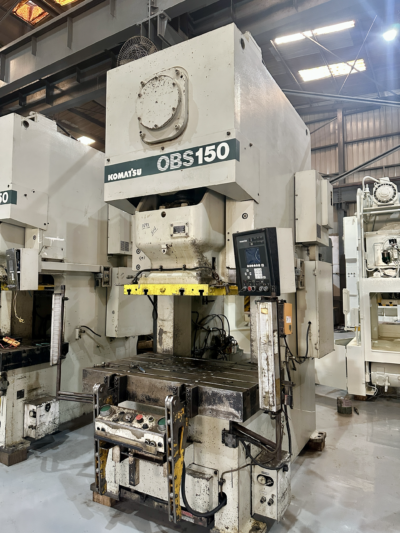

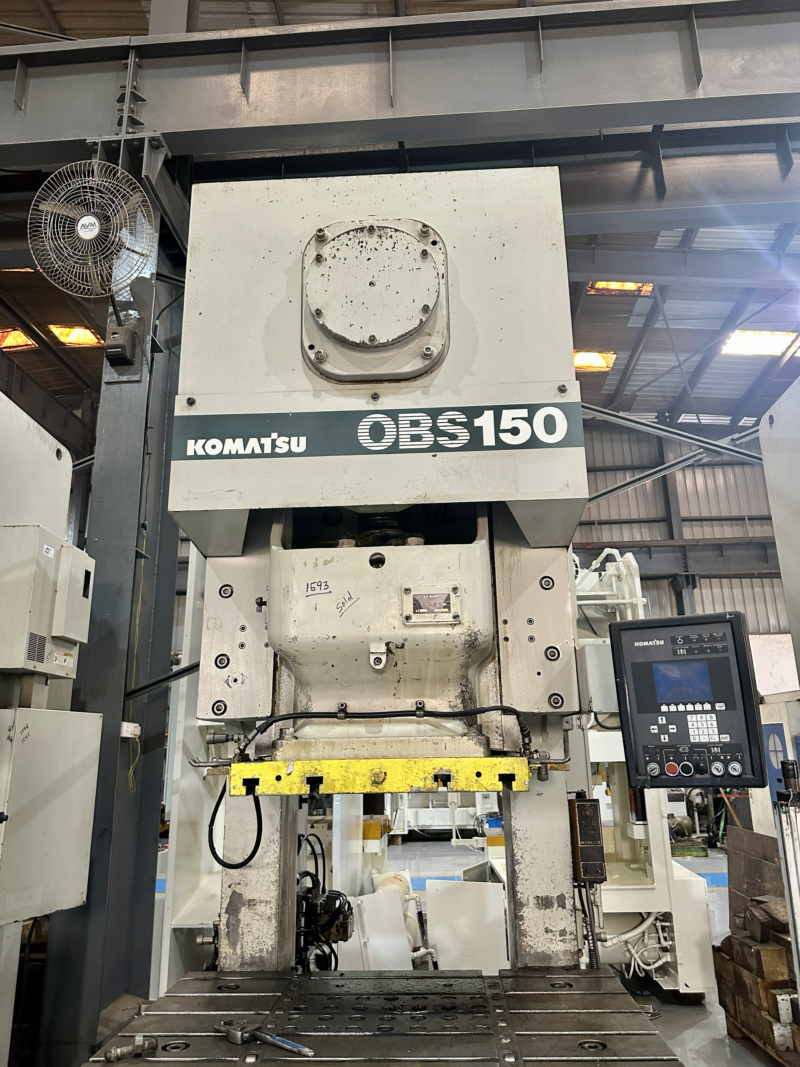

KOMATSU JAPAN MODEL : OBS-150-5
C FRAME SINGLE CRANK PRESS
KOMATSU JAPAN
MODEL : OBS-150-5
SKU # 1593
Brief Specifications/ Details
- Cap : 150Tons
- Stroke : 200mm
- Die Height : 420mm
- Adjustment : 100mm-Electrical
- SPM : 55
- Slide : 700 x 550mm
- Bolster : 1250 x 760mm
Accessories
With Die Cushion
Other Details (Approx)
- Clutch : Wet
- Main Motor : KW
- Power Required : 415V/4KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 7’-10”, L-R: 5’-10”, HT: 11’-5”
- Machine Weight : Tons
