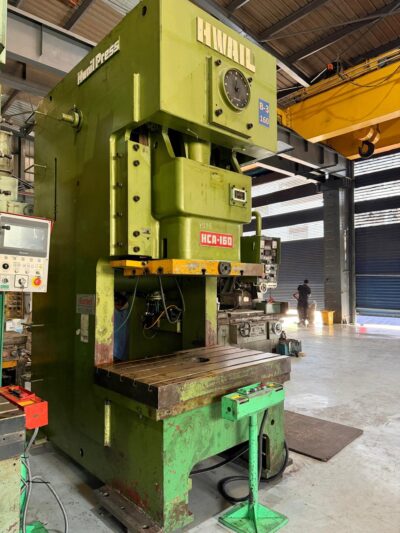

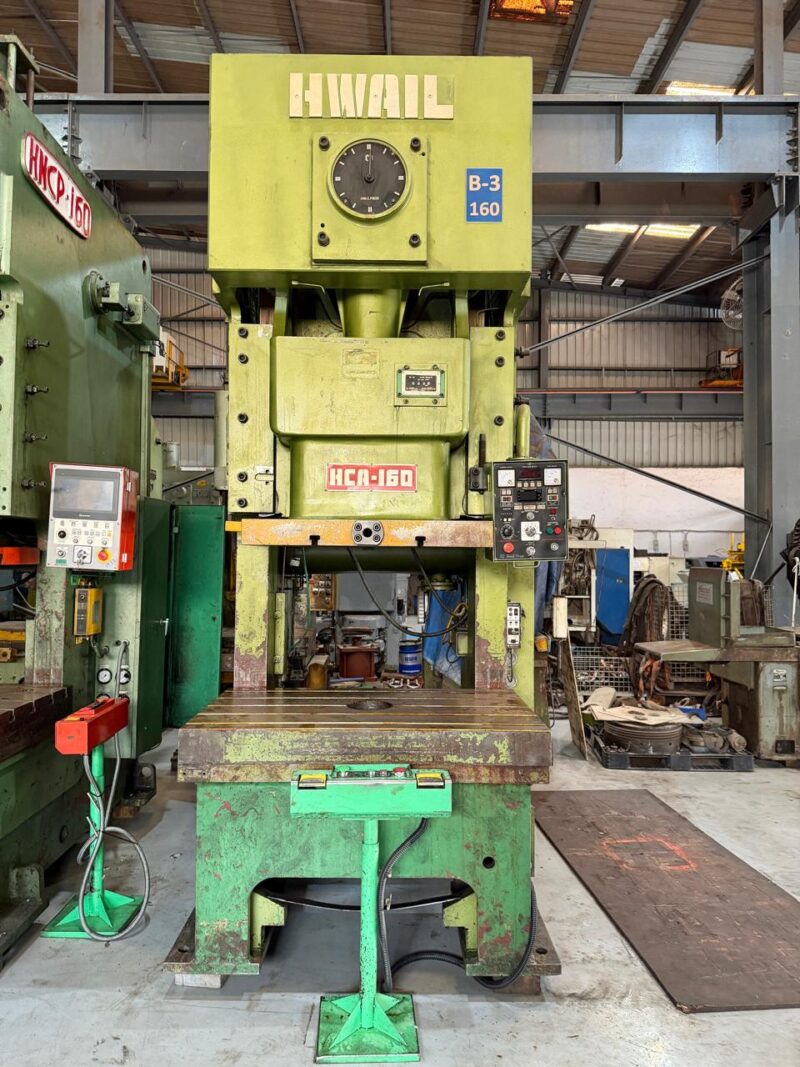

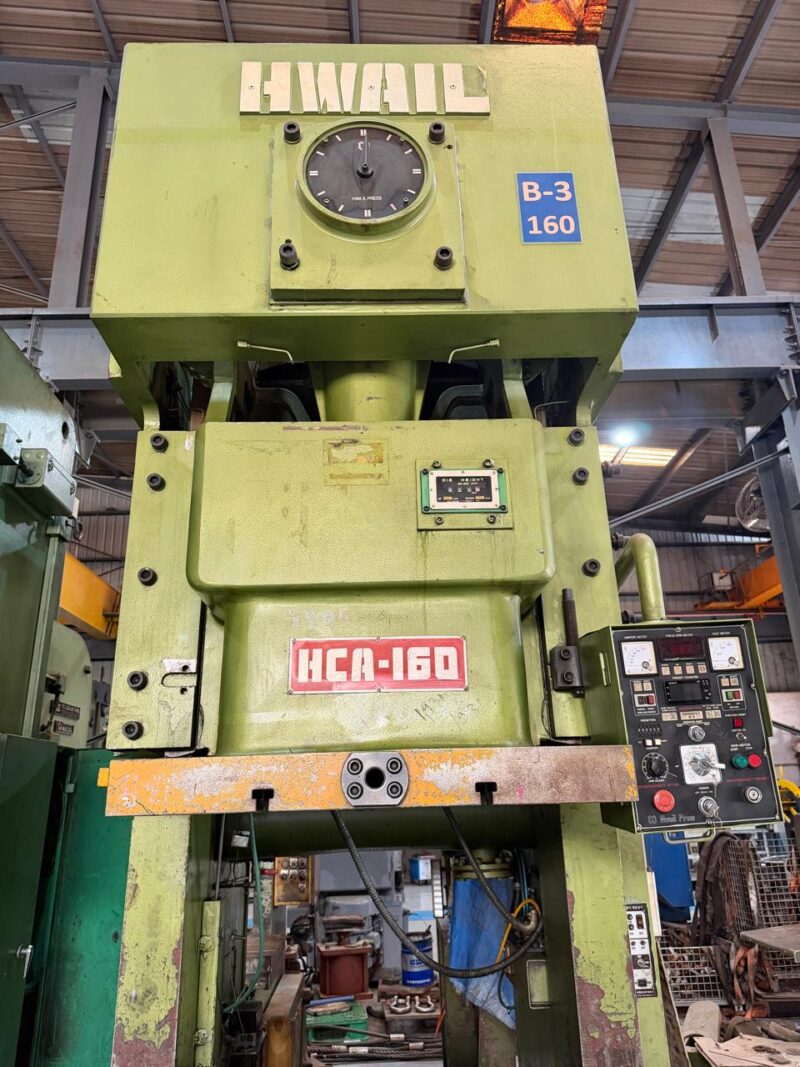

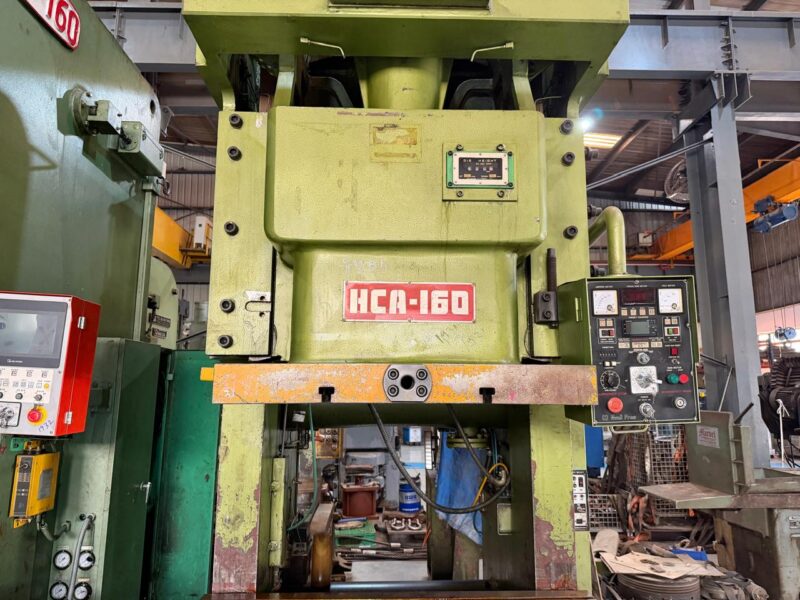

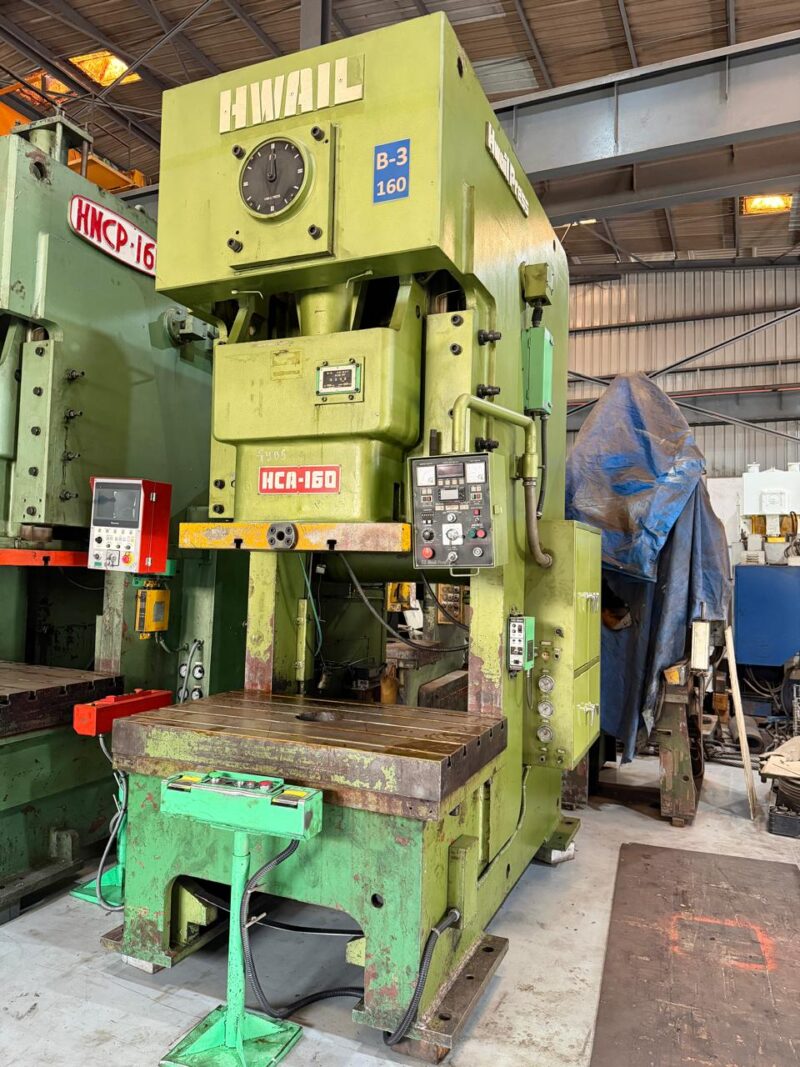

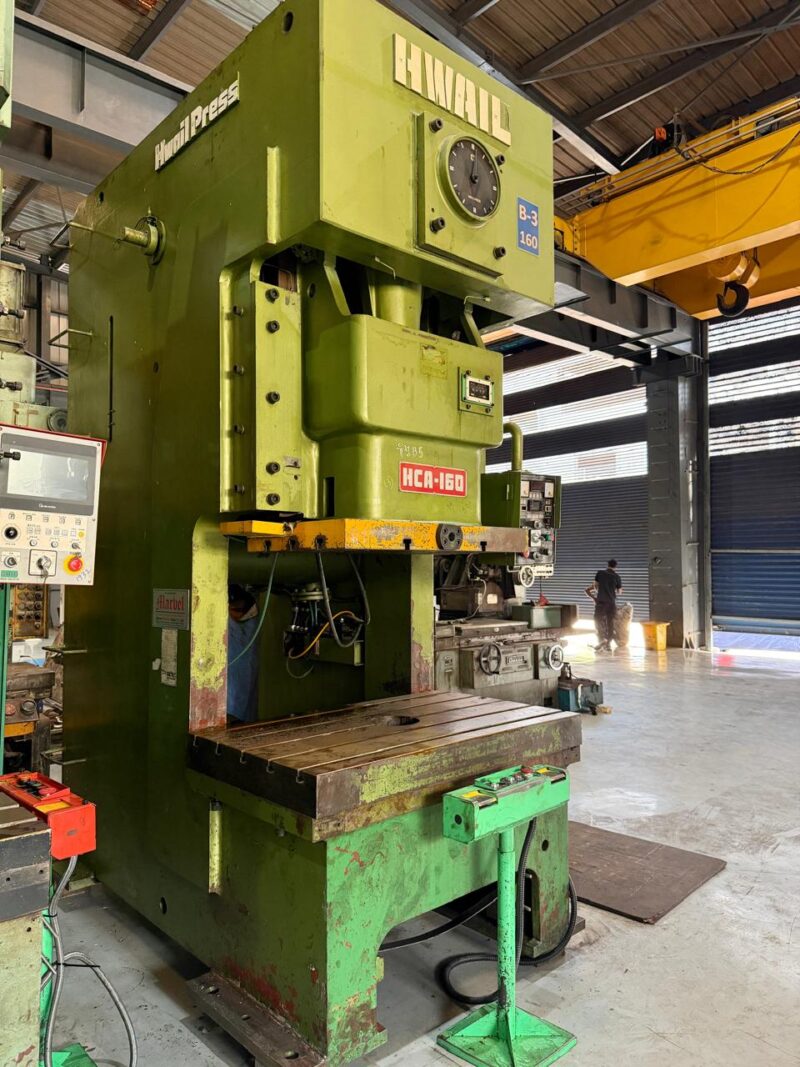

HWAIL KOREA MODEL : HCA-160
C FRAME SINGLE CRANK PRESS
HWAIL KOREA
MODEL : HCA-160
SKU # 1931
Brief Specifications/ Details
- Cap : 160 tons
- Stroke : 200mm
- Die height : 480mm
- Adjustment : 100
- SPM : 30~45
- Slide : 950 x 600mm

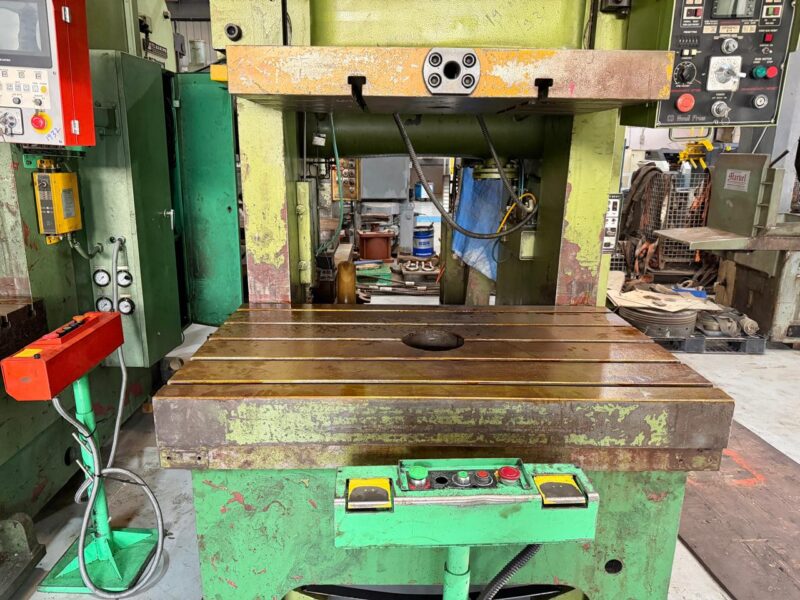

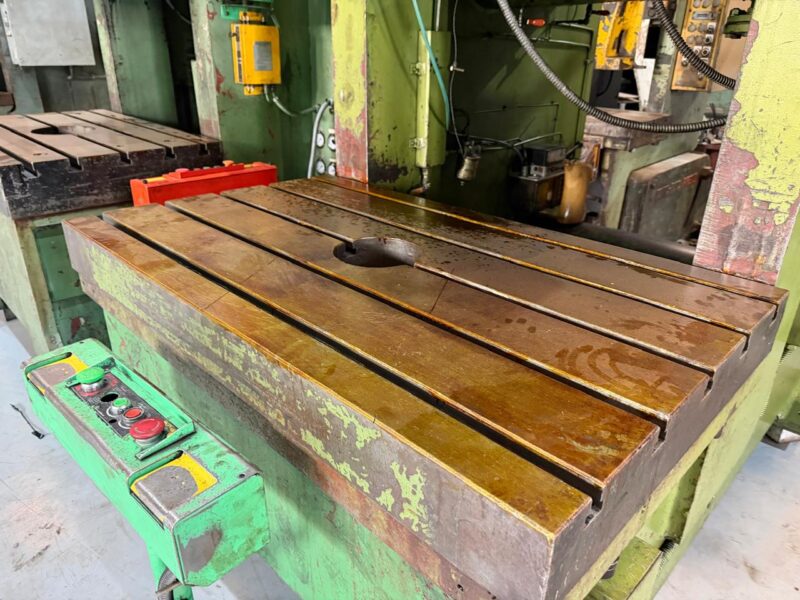

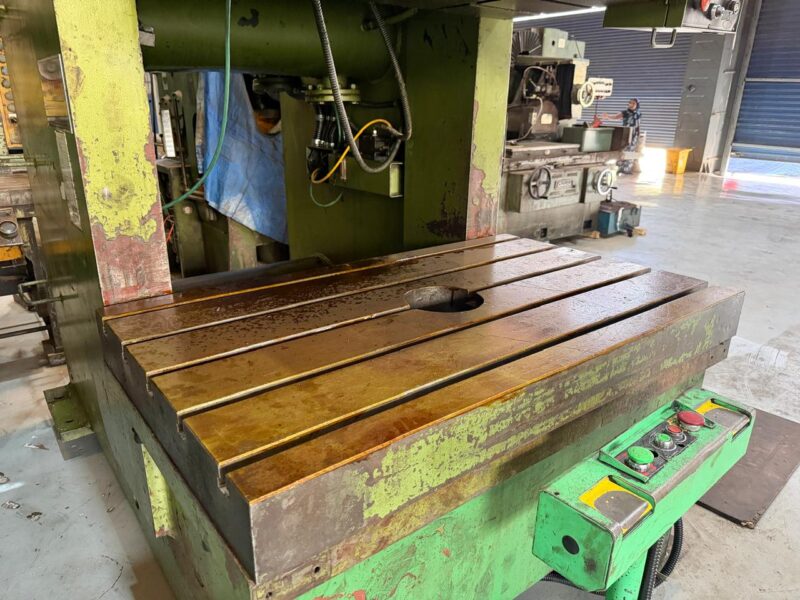

- Bolster : 1330 x 800mm
Other Details (Approx)
- Clutch : Dry
- Main Motor : 19KW
- Power Required : 380V/23KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 8’-5”, L-R: 5’-10”, HT: 12’-0”
- Machine Weight : AP – 16 Tons
