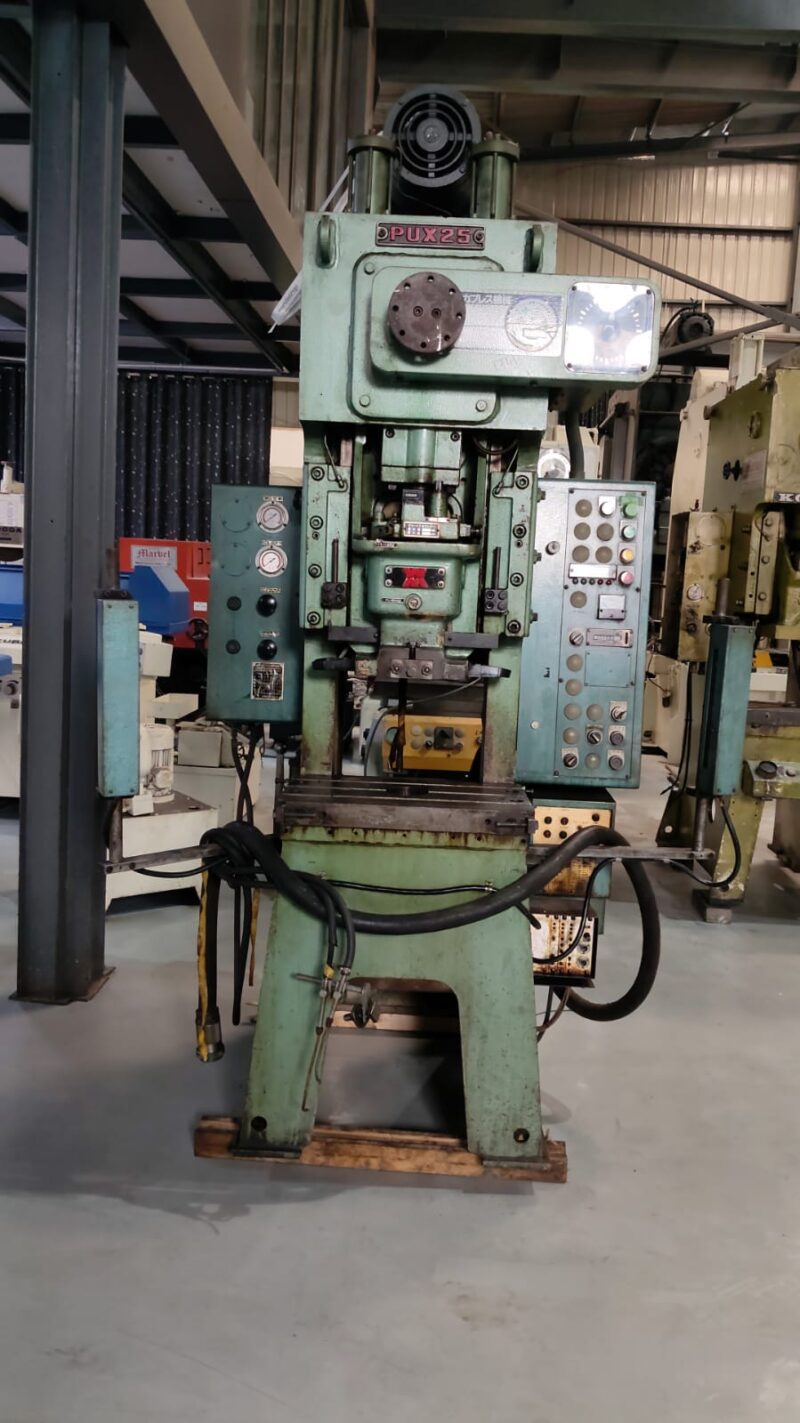

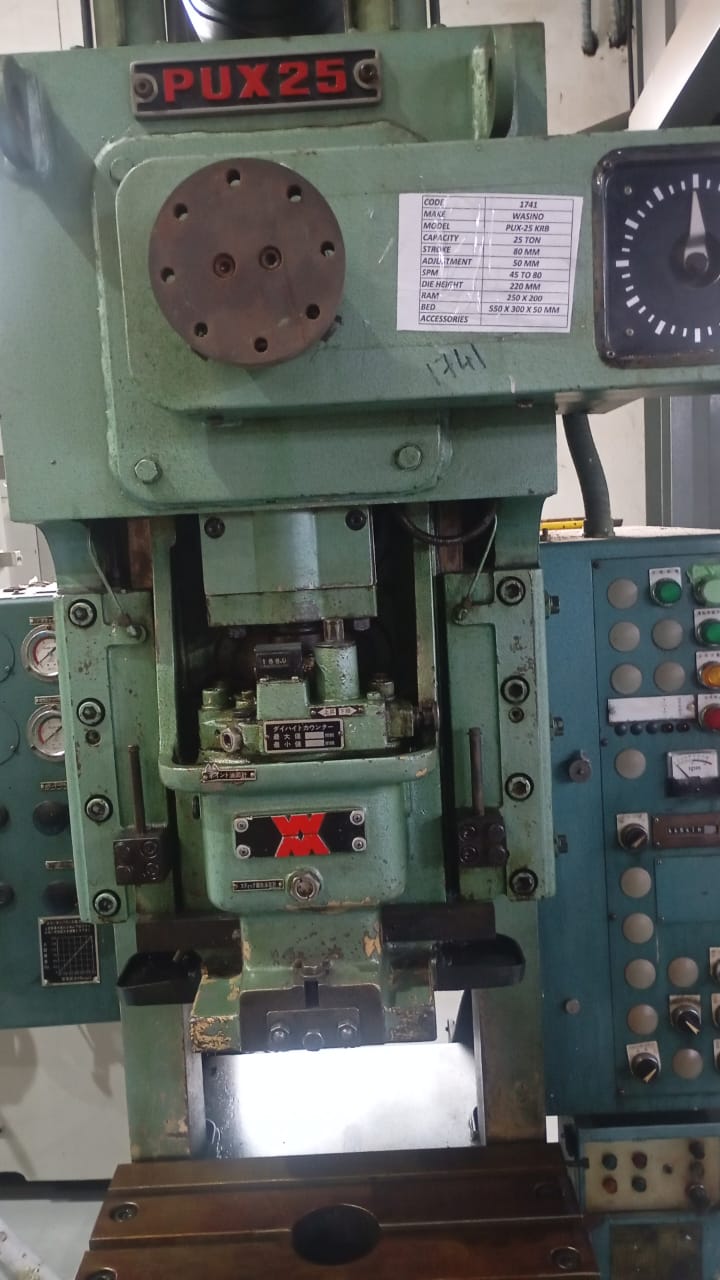

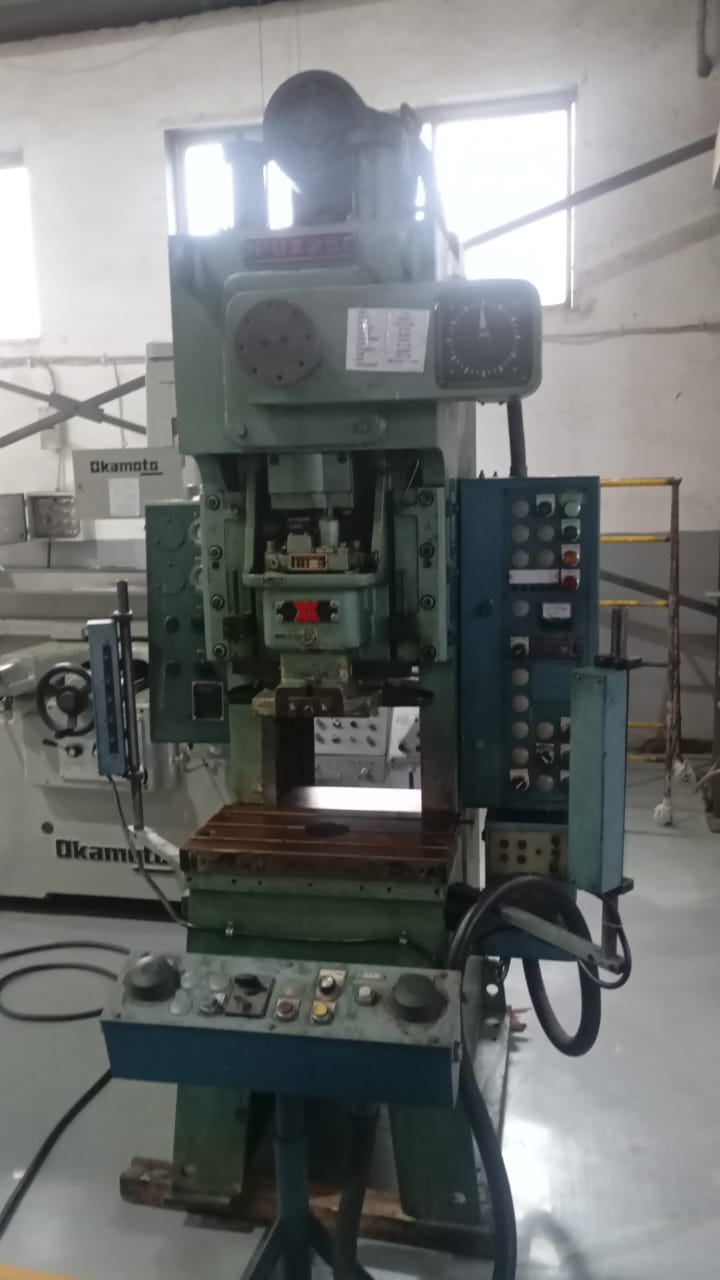

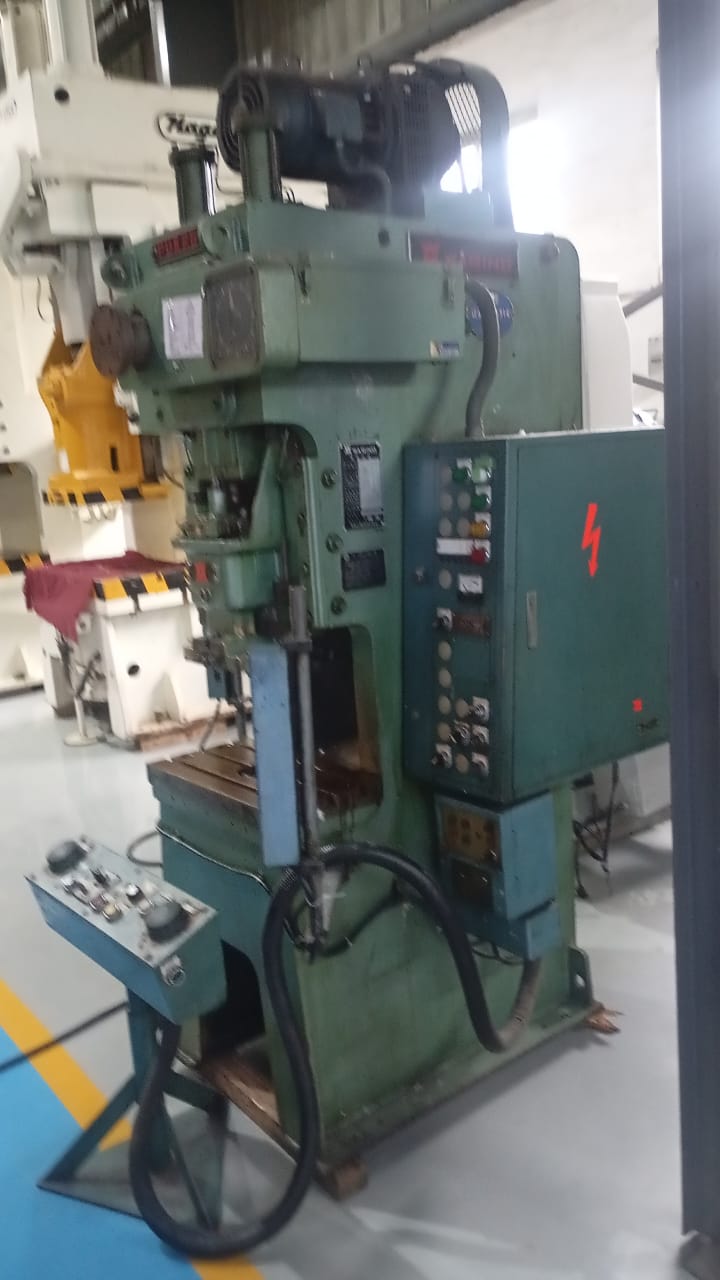

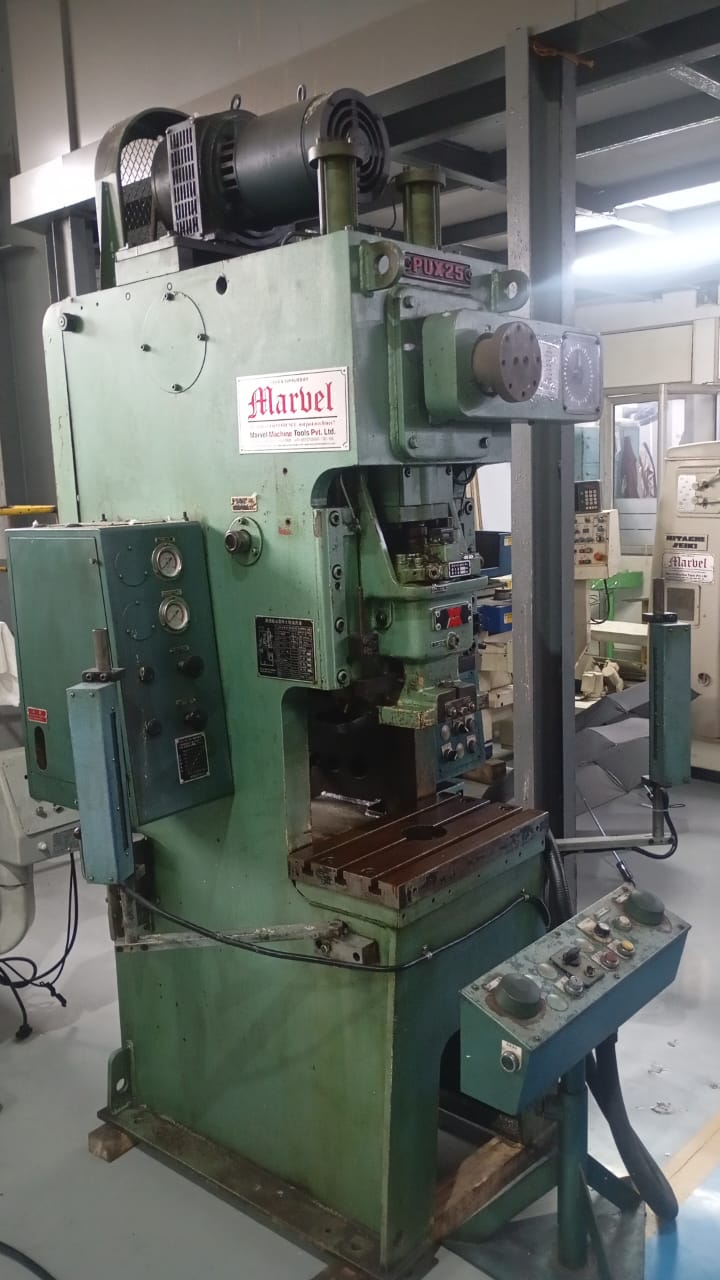

WASINO JAPAN MODEL : PUX-25 KRB
C FRAME SINGLE CRANK PRESS
WASINO JAPAN
MODEL : PUX-25 KRB
SKU # 1741
Brief Specifications/ Details
- Cap : 25Tons
- Stroke : 80mm
- Die Height : 220mm
- Adjustment : 50mm
- SPM : 45~80
- Slide : 250 x 200mm

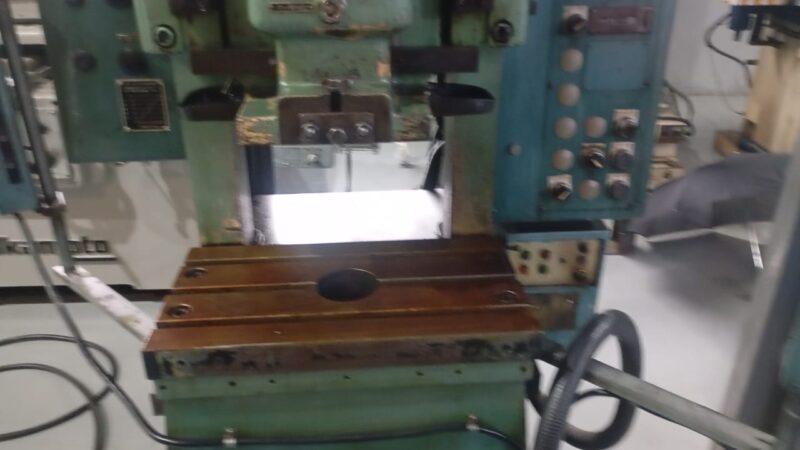

- Bolster : 550 x 300mm
Other Details (Approx)
- Clutch : Wet
- Main Motor : KW
- Power Required : 220V/3KVA Phase : 3
- Air Required : 5.5/sqcm
- Machine Size : F-B: 4’-6”, L-R: 4’-4”, HT: 8’-0”
- Machine Weight : 2 Tons
